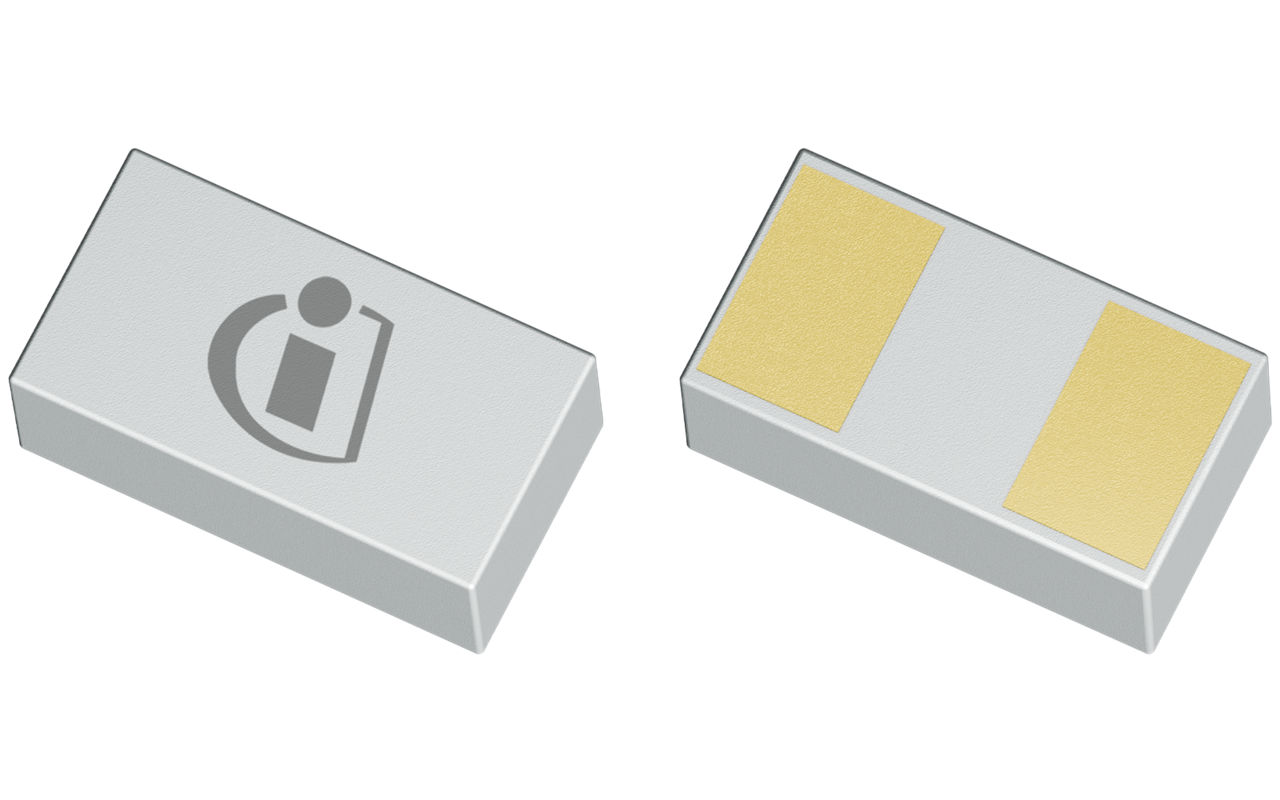

ESD202-B1-CSP01005

Data Sheet
package
ea.
in stock

Content could not be loaded

Unfortunately, we were unable to load the content for this section. You may want to refresh the page or try again later.

ESD202-B1-CSP01005
ESD202-B1-CSP01005
ea.
Data Sheet

Product details

  • CL
    6.5 pF
  • IEFT
    40A
  • IPP
    3.0A
  • IR
    1 nA
  • Protected Lines
    1
  • Rdyn (reverse)
    0.2 Ω
  • Rdyn (forward)
    0.2 Ω
  • Vcl typ. reverse (TLP 16A)
    13 V
  • Vcl typ. reverse (TLP 30A)
    17 V
  • VESD
    -15 kV to 15 kV
  • VWM
    -5.5 V to 5.5 V
Recommended
OPN
ESD202B1CSP01005XTSA1
Product Status active and preferred
Infineon Package
SG-WLL-2-2
Package Name N/A
Packing Size 15000
Packing Type TAPE & REEL
Moisture Level 1
Moisture Packing NON DRY
Lead-free Yes
Halogen Free Yes
RoHS Compliant Yes
Infineon stock last updated:
 ea. in stock

Product Status
Active
Infineon Package
SG-WLL-2-2
Package Name -
Packing Size 15000
Packing Type TAPE & REEL
Moisture Level 1
Moisture Packing NON DRY
Lead Free
Halogen Free
RoHS Compliant
ea.
in stock
Miniaturized Low Capacitance Bi-directional ESD / Transient Protection Diode

Features

  • ESD / transient protection according to:
  • – IEC61000-4-2 (ESD): ±15 kV (air/contact discharge)
  • – IEC61000-4-5 (Surge): 3A (8/20 µs)
  • Bi-directional, working voltage up to VRWM = ±5.5 V max.
  • Low capacitance: CL = 6.5 pF (typical)
  • Ultra low dynamic resistance: R DYN = 0.20 Ω typ.
  • Low reverse current. IR = 100nA (max.)
  • Pb-free (RoHS compliant) and halogen free package
