Active and preferred
RoHS Compliant
Lead-free

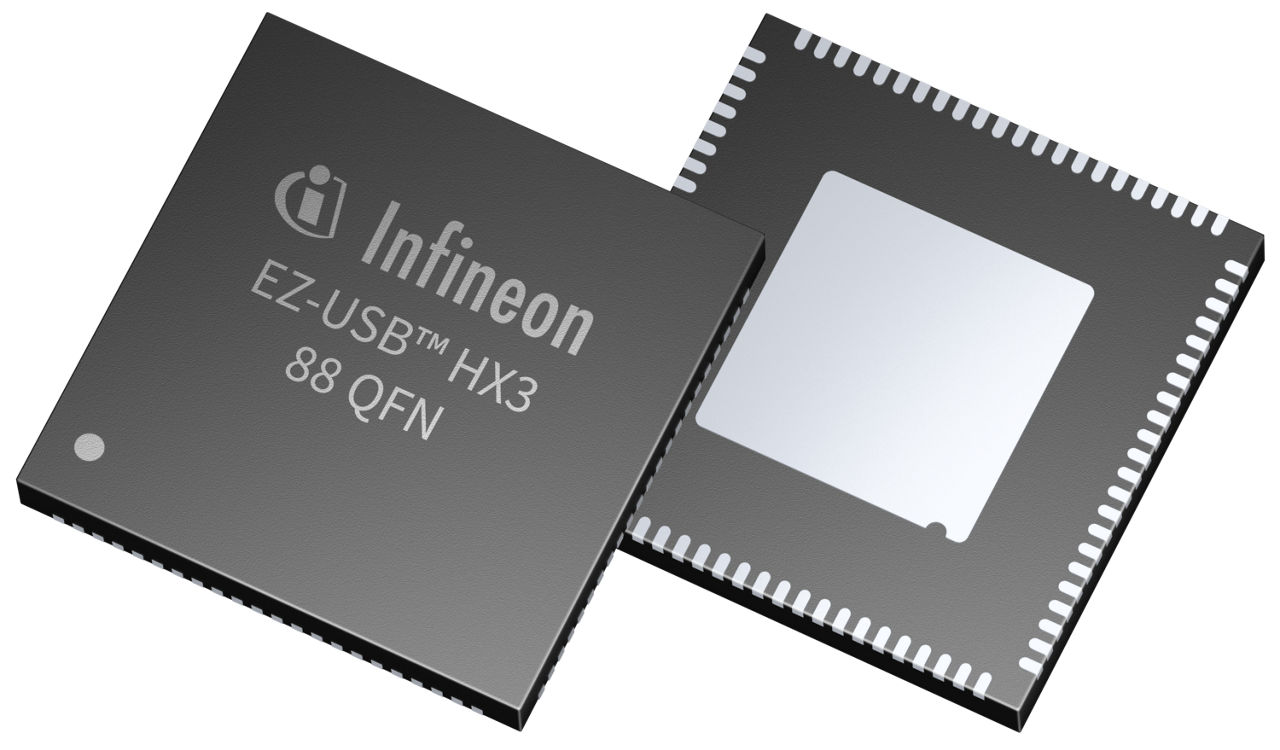

CYUSB3314-88LTXST

Automotive two-ports USB hub controller, tape & reel packing
Data Sheet
package
software

Content could not be loaded

Unfortunately, we were unable to load the content for this section. You may want to refresh the page or try again later.

CYUSB3314-88LTXST
CYUSB3314-88LTXST
Data Sheet

Product details

  • # of DS ports
    4
  • # of US ports
    1
  • Applications
    Cockpit domain controller, Head unit, In-vehicle infotainment
  • Family
    EZ-USB™ HX3 Auto
  • Features
    Ghost charge™, Shared Link™
  • Operating Temperature
    -40 °C to 105 °C
  • Operating Voltage
    3 V to 3.6 V
  • Package Type
    88-pin QFN
  • Product Category
    Hub Controllers
  • Product Description
    USB 3.2 Gen 1 Hub Controller
  • Software Tools
    Yes
  • Temperature grade
    Automotive Grade-S
  • USB Speed
    5 GBit/s
  • USB Standard
    USB 3.2 Gen 1
Recommended
OPN
CYUSB331488LTXSTXUMA1
Product Status active and preferred
Infineon Package
PG-VQFN-88
Package Name QFN-88 (001-76569)
Packing Size 2000
Packing Type TAPE & REEL
Moisture Level 3
Moisture Packing DRY
Lead-free Yes
Halogen Free Yes
RoHS Compliant Yes
Infineon stock last updated:

Product Status
Active
Infineon Package
PG-VQFN-88
Package Name QFN-88 (001-76569)
Packing Size 2000
Packing Type TAPE & REEL
Moisture Level 3
Moisture Packing DRY
Lead Free
Halogen Free
RoHS Compliant
EZ-USB™ HX3 automotive is a family of USB 5Gbps hub controllers compliant with the USB 3.1, Gen 1 specification. It supports USB 5Gbps (formerly known as superspeed), 480 Mbps (high-speed), 12 Mbps (full-speed), and 1.5 Mbps (low-speed) on all the ports.

Features

  • AEC-Q100 compliance
  • USB 5Gbps
  • Two downstream ports
  • Ganged and individual port power control
  • Battery charging v1.2
  • Apple charging
  • Multi transaction translator
  • I2C serial communication
  • ARM® Cortex® M0 MCU
  • Driver strength control
  • 88-QFN package
  • Tape and reel packing

Benefits

  • USB-IF compliance
  • AEC-Q100 qualified
  • Robust interoperability
  • Enhanced connectivity & flexible design
  • Driver strength control
  • Interface to PD controller
  • Hub FW update via PD controller
