BGMC1210

BGMC1210 Bias & Control Chips
Data Sheet
package
ea.
in stock

Content could not be loaded

Unfortunately, we were unable to load the content for this section. You may want to refresh the page or try again later.

BGMC1210
BGMC1210
ea.
Data Sheet

Product details

  • Control Interface
    I2C, I3C
  • Current Sense ADC Inputs
    2 (12-bit)
  • DAC (#, Max. Resolution @ Sample Rate)
    12-bit
  • DAC Outputs
    8
  • Features
    Clamping Switches, Temperature Sensor
  • Operating Temperature Range
    -40 °C to 150 °C
  • Voltage ADC Inputs
    4 (11-bit)
Recommended
OPN
BGMC1210E6327XUMA1
Product Status active and preferred
Infineon Package

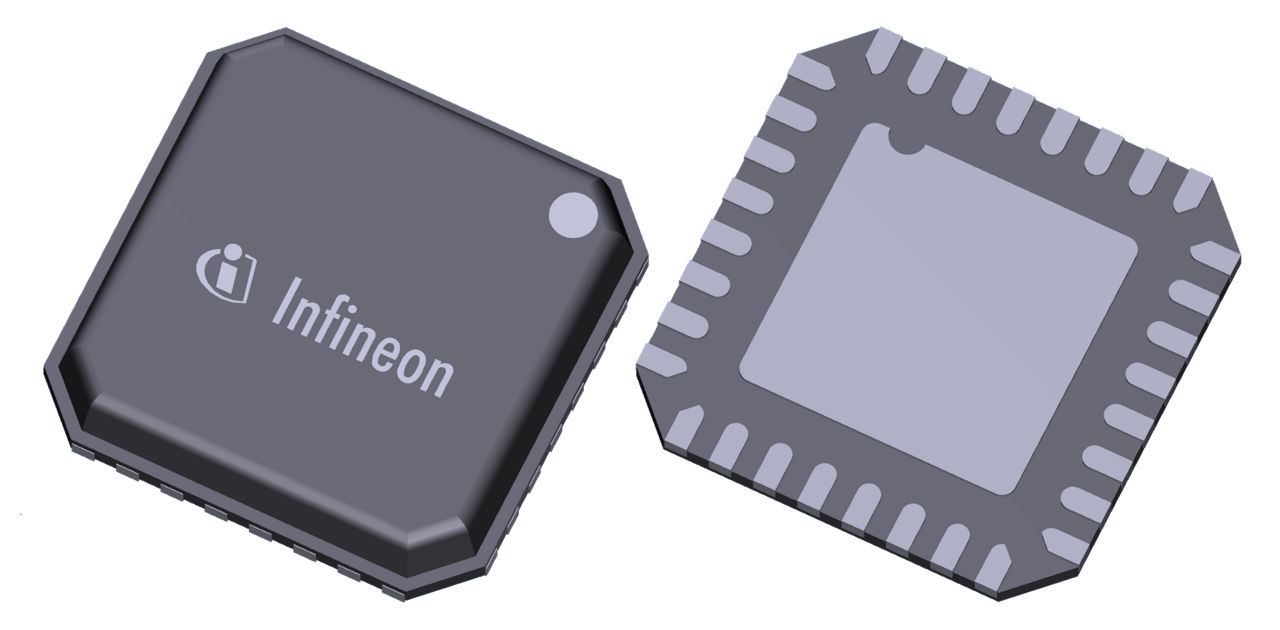

PG-VQFN-32
Package Name N/A
Packing Size 5000
Packing Type TAPE & REEL
Moisture Level 3
Moisture Packing DRY
Lead-free Yes
Halogen Free Yes
RoHS Compliant Yes
Infineon stock last updated:
 ea. in stock

Product Status
Active
Infineon Package
PG-VQFN-32
Package Name -
Packing Size 5000
Packing Type TAPE & REEL
Moisture Level 3
Moisture Packing DRY
Lead Free
Halogen Free
RoHS Compliant
ea.
in stock
The BGMC1210 is a bias and control IC for Power Amplifiers (PA). The device is optimized for Doherty PAs and biases up to 2 PAs with 4 DAC outputs per PA but can be used in any PA configuration. The  DACs have a resolution of 12 Bit and a current driving capability of 50 mA sourcing and 20 mA sinking. The DACs are organized in two groups with independent supplies and can be operated with positive and negative supply voltages in order to bias LDMOS and GaN transistors. In addition, the BGMC1210 offers integrated clamping switches for fast TDD operation of the PA and integrated ADCs to measure supply voltages and drain currents.

Features

  • 8 DACs with 12-bit resolution
  • 2 Current Sense ADCs and 1 Voltage ADCs
  • Vout range: -7…0 / 0…+7 V
  • Integrated temperature sensor
  • Control interface: I2C & I3C
  • Packaging: VQFN-32 (5x5 mm²)

Benefits

  • Bias & Control chip to bias Doherty Power Amplifiers of two Transmit (Tx) channels
  • Positive and negative output range for LDMOS and GaN PAs
  • Integrated clamping switches & buffers for fast TDD operation
  • Integrated 60V ADC for PA current and voltage measurements
  • Temperature sensor and fast I3C & I2C serial interfaces

Applications

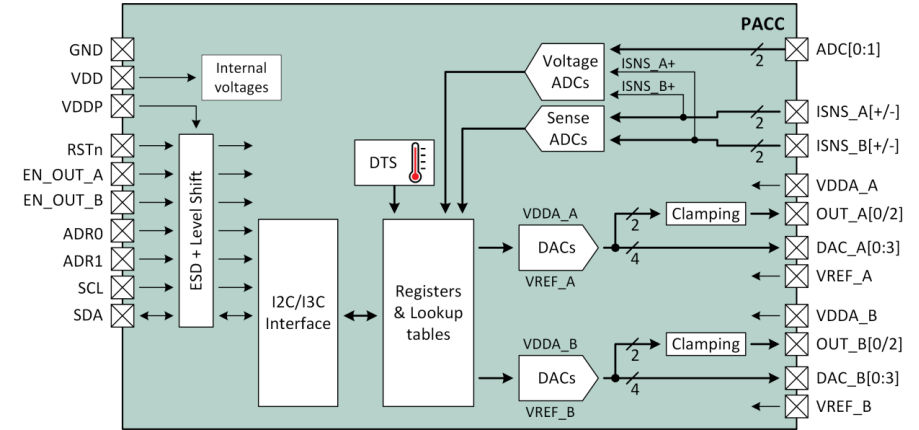

Diagrams

Diagram_BGMC1210
Diagram_BGMC1210
Diagram_BGMC1210 Diagram_BGMC1210 Diagram_BGMC1210
×
