SHIELD_BTF3050TE
SHIELD_BTF3050TE
User Manual

Product details

  • Board Type
    Evaluation Board
  • Family
    Low-Side Switches, HITFET™ + 12V
  • Input Type
    DC
  • Output Voltage
    13.5 V
  • Product Name
    Low-Side Switch Shield with BTF3050TE for Arduino
  • Qualification
    Automotive
  • Sub Application
    Resistive, Inductive and capacitive loads
  • Supply Voltage
    12 V
  • Target Application
    Automotive
  • Topology
    Low-side switch
Recommended
OPN
SHIELDBTF3050TETOBO1
Product Status active and preferred
Infineon Package N/A
Package Name N/A
Packing Size 1
Packing Type CONTAINER
Moisture Level NA
Moisture Packing NON DRY
Lead-free No
Halogen Free No
RoHS Compliant No
Infineon stock last updated:

Product Status
Active
Infineon Package N/A
Package Name -
Packing Size 1
Packing Type CONTAINER
Moisture Level NA
Moisture Packing NON DRY
Lead Free
Halogen Free
RoHS Compliant

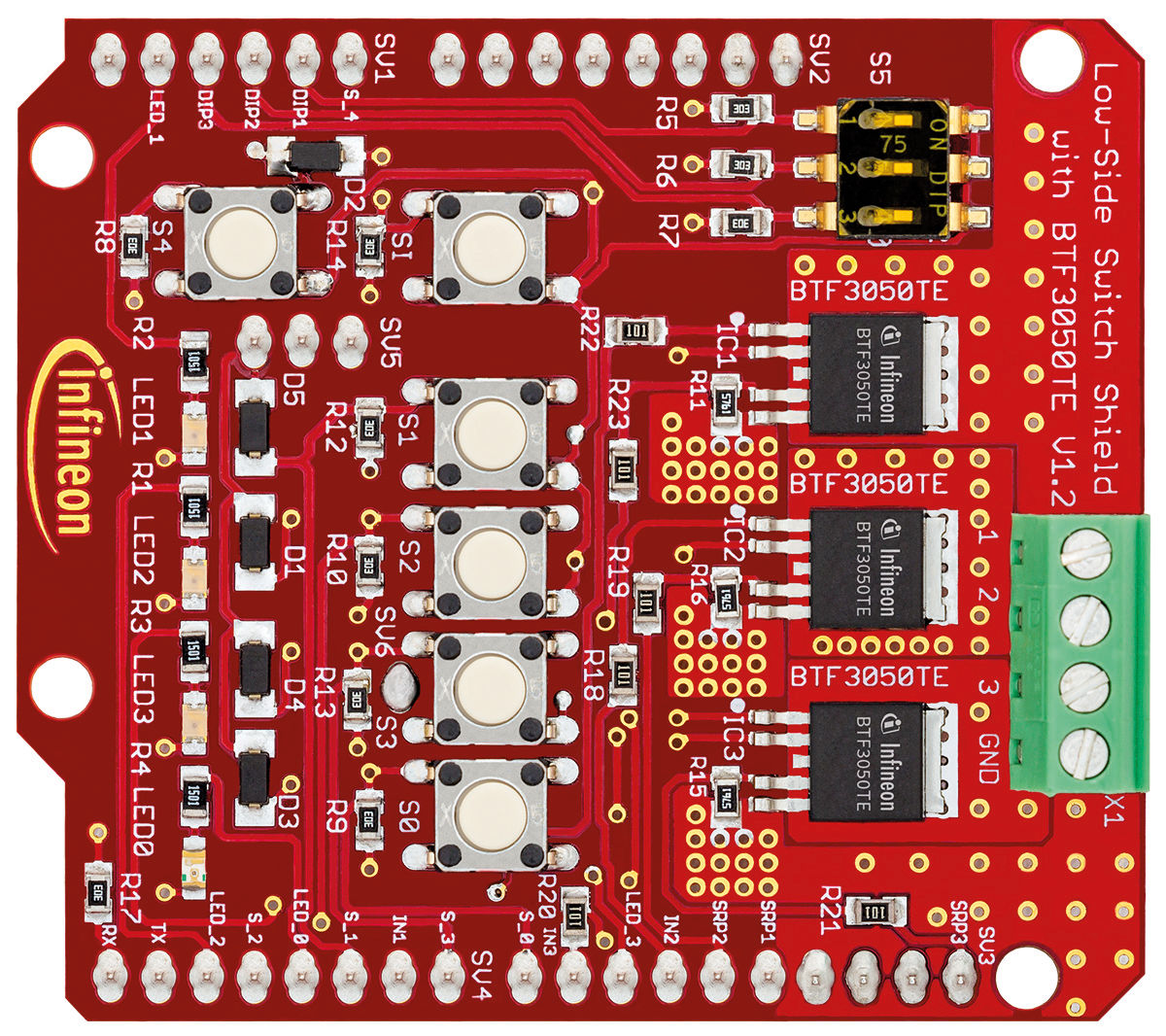

Infineon's Low-Side Switch Shield has three independent power channels controlled by BTF3050TE low-side switches. It's compatible with Arduino-based microcontroller boards and supports fast prototyping. The BTF3050TE is a high-integrated switch for driving resistive, inductive, and capacitive loads up to 3 A. It includes protection features and is optimized for 12 V automotive and industrial applications.

Features

  • Controls up to three low-side switches
  • Able to switch all kinds of loads
  • Input voltage: 3 to 5.5V
  • Supply voltage: 3 to 5.5V
  • Nominal battery voltage: 8 to 18V
  • Extended battery voltage: 3 to 28V
  • Nominal load current: 3 A
  • Minimum current limitation: 30 A
  • Overtemp. shutdown with auto-resart
  • Active clamp overvoltage protection
  • Enhanced short circuit protection

Applications

Bill of Material
