84 W AC-DC reference design for e-bike battery charger
Application Notes
ea.
in stock

Content could not be loaded

Unfortunately, we were unable to load the content for this section. You may want to refresh the page or try again later.

REF_ICC80QSG_84W2_BPA
REF_ICC80QSG_84W2_BPA
ea.
Application Notes

Product details

  • Frequency max
    60 kHz
  • Input Type
    AC
  • Input Voltage
    230 V
  • Iout
    1 A
  • Output Voltage
    24 V
  • Pout max
    84 W
  • Target Application
    Charger
  • Topology
    Flyback
  • Vout
    DC
Recommended
OPN
REFICC80QSG84W2BPATOBO1
Product Status active and preferred
Infineon Package N/A
Package Name N/A
Packing Size 1
Packing Type CONTAINER
Moisture Level NA
Moisture Packing NON DRY
Lead-free No
Halogen Free No
RoHS Compliant Yes
Infineon stock last updated:
 ea. in stock

Product Status
Active
Infineon Package N/A
Package Name -
Packing Size 1
Packing Type CONTAINER
Moisture Level NA
Moisture Packing NON DRY
Lead Free
Halogen Free
RoHS Compliant
ea.
in stock

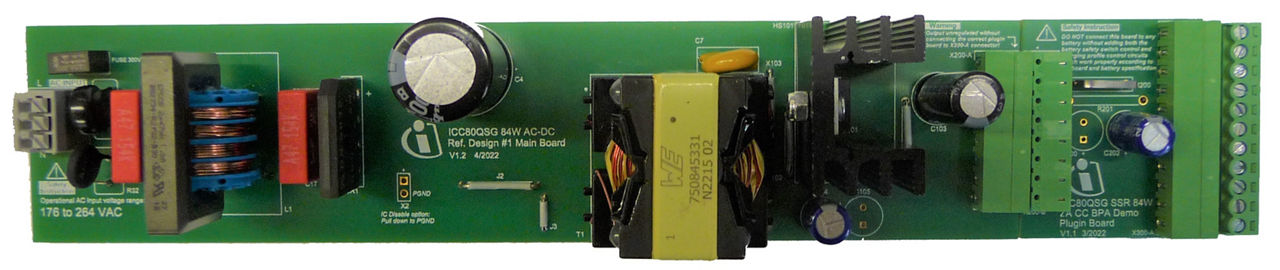

The REF_ICC80QSG_BPA2_84W is an 84 W flyback-based reference design tailor-made for battery chargers for e-bikes. It is based on the quasi-resonant flyback controller ICC80QSG and the renowned 700 V CoolMOS™ P7 technology in the small footprint and wave solderable SOT-223 package .

Features

  • Secondary-side regulation with adjustable CC output set-point from 0.2 A to 2 A
  • Supports wide output load range from 6 V to 42 V
  • Full-power efficiency more than 91 percent at 230 VRMS_AC input
  • Four-point average efficiency more than 91 percent at 42 V output load
  • System standby power less than 200 mW at 230 VRMS_AC input

Benefits

  • High efficiency and low EMI with quasi-resonant (QR) valley switching
  • Cost-effective flyback MOSFET with high performance, using CoolMOS™ P7 in SOT-223 package
  • Configurable hysteresis of brown-in and brown-out
  • Adaptive brown-out level triggering based on bus voltage ripple, to better protect primary components from overheating and saturation with higher brown-out level at higher power transfer
  • Comprehensive set of protections: internal overtemperature protection (OTP), output overvoltage protection (OVP), VCC OVP, overcurrent protection (OCP), brown-in and brown-out protection, input OVP and open-loop protection

Applications
