Reference design for motor control in residential aircon applications
User Manual

Content could not be loaded

Unfortunately, we were unable to load the content for this section. You may want to refresh the page or try again later.

REF-AIRCON-C302A-IM564
REF-AIRCON-C302A-IM564
User Manual

Product details

  • Board Type
    Reference Board
  • Dimensions
    157x80x250 mm
  • Family
    IGBT Modules, iMOTION™ Motor Control ICs, Intelligent Power Modules (IPM), Motor Driver
  • Input Type
    AC
  • Pout max
    2500 W
  • Product Name
    REF-AIRCON-C302A-IM564
  • Qualification
    Industrial
  • Target Application
    Aircon
  • Topology
    3-Phase Inverter
OPN
REFAIRCONC302AIM564TOBO1
Product Status not for new design
Infineon Package N/A
Package Name N/A
Packing Size 1
Packing Type CONTAINER
Moisture Level NA
Moisture Packing NON DRY
Lead-free No
Halogen Free No
RoHS Compliant Yes
Infineon stock last updated:

Product Status not for new design
Infineon Package N/A
Package Name -
Packing Size 1
Packing Type CONTAINER
Moisture Level NA
Moisture Packing NON DRY
Lead Free
Halogen Free
RoHS Compliant

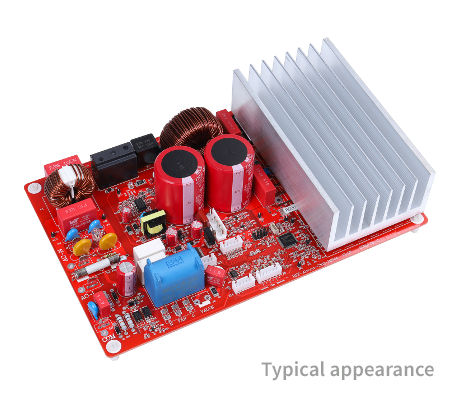

The REF-AIRCON-C302-IM564 is a 3-phase turnkey motor drive for air conditioner outdoor units (ODU) with an IMC302 iMOTION™ controller, a CIPOS™ Mini IPM IM564-X6D inverter, 1ED44175 gate driver, and CoolSET™ ICE5AR4770BZS for the auxiliary supply. It enables more efficient ODU designs with smaller form factors and provides fully-featured motor control (MCE2.0) for reduced development cycle time.

Features

  • Typ. 1400 W motor power
  • Max. 2500 W motor power
  • Input voltage rage of 85...265 VAC
  • On-board auxiliary voltage supply
  • On-board inductor for 40~60 Khz PFC
  • Control interfaces to external BLDC
  • Communication interface to IDU
  • Overcurrent protection
  • Over temperature protection
  • Fault diagnostic LED output
  • 2-layer PCB with 250 mm × 157 mm
  • Easy-to-use iMOTION™ firmware
