REF_80VDC_3.5KW_OPE2

3.5 kW BLDC motor drive system solution for outdoor power equipment (OPE) and LEVs operating from a 72-80 V battery pack
Application Notes
ea.
in stock

Content could not be loaded

Unfortunately, we were unable to load the content for this section. You may want to refresh the page or try again later.

REF_80VDC_3.5KW_OPE2
REF_80VDC_3.5KW_OPE2
ea.
Application Notes

Product details

  • Dimensions
    125 mm x 102.98 mm
  • Family
    Motor Driver
  • Frequency
    10 kHz to 20 kHz
  • Halogen-free
    yes
  • Input Type
    DC
  • Output Current max
    55 A
  • Pout max
    3500 W
  • Qualification
    Consumer
  • Supply Voltage
    60 V to 80 V
  • Target Application
    Outdoor Power Equipment
  • Topology
    3-Phase Motor
  • Type
    Reference Board
Recommended
OPN
REF80VDC35KWOPE2TOBO1
Product Status active and preferred
Infineon Package --
Package Name N/A
Packing Size 1
Packing Type CONTAINER
Moisture Level N/A
Moisture Packing NON DRY
Lead-free No
Halogen Free No
RoHS Compliant Yes
Infineon stock last updated:
 ea. in stock

Product Status
Active
Infineon Package --
Package Name -
Packing Size 1
Packing Type CONTAINER
Moisture Level -
Moisture Packing NON DRY
Lead Free
Halogen Free
RoHS Compliant
ea.
in stock

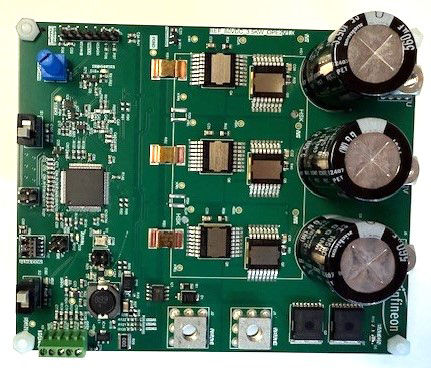

The REF_80VDC_3.5KW_OPE2 reference board is a high efficiency BLDC/PMSM three phase motor drive solution based on Infineon's PSOC™ Control C3 advanced Arm® Cortex®-M33-based microcontroller. It is capable of supporting multiple control schemes including sensor-less field oriented control (FOC). It produces sinusoidal motor phase current up to 100 Amps peak and 40 Amps RMS continuous motor drive power of 2.5 kW. It operates with Infineon's motor control suite.

Features

  • 3-phase BLDC, PMSM motor drive inverter
  • Sensorless FOC control firmware
  • Supports Hall sensors
  • Sensored trapezoidal control supported
  • Battery safe disconnect MOSFET (7th FET)
  • Thermal protection
  • Over current protection
  • Over voltage protection
  • Supports motor control suite SW tool

Benefits

  • High efficiency > 98%
  • Optimized thermal management
  • Operates up to 80 VDC input
  • Output power 3.5 kW for 1 minute
  • Continuous output power 2.5 kW
  • Sinusoidal phase currents
