OPTIGA TPM SLI9670 A-TPM
OPTIGA TPM SLI9670 A-TPM

Product details

  • Applications
    Automotive
  • Board Type
    Evaluation Board
  • Family
    Security
  • Input Type
    DC
  • Product Name
    OPTIGA™ TPM SLI 9670 A-TPM board
  • Qualification
    Automotive
  • Sub Application
    Automotive Security
  • Supply Voltage
    3.3 V
  • Target Application
    Automotive
OPN
Product Status
Infineon Package
Package Name
Packing Size
Packing Type
Moisture Level
Moisture Packing
Lead-free
Halogen Free
RoHS Compliant
Infineon stock last updated:

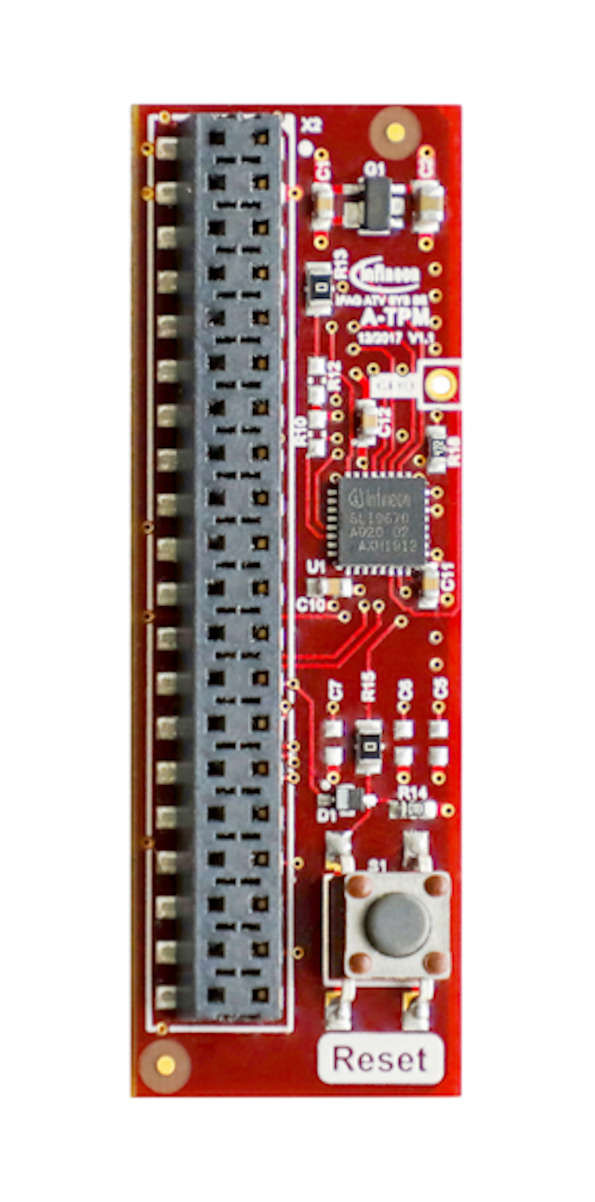

OPTIGA™ TPM SLI 9670 A-TPM board allows developers to evaluate and develop AURIX™ 2nd generation MCU-based systems offering enhanced levels of security. It is an add-on board for the AURIX™ TC3xx, supported by the TPM Software Stack (TSS) 2.0, which acts as an AUTOSAR-compatible complex driver.The board is designed to be connected to AURIX™ TriBoard TC389 with TC389QP microcontroller via SPI.

Features

  • AUTOSAR-compatible complex TPM driver
  • Including a MCAL SPI driver & mbed TLS
  • Source code for typical applications
  • Key generation and provisioning
  • Cryptographic operations
  • Protected certs storage (NV indexes)
  • Secured boot w/ sealing / PCR validation
  • Secured communication betw. host and TPM
  • 3.3 V or 1.8 V power supply
  • Reset button

Benefits

  • Future-proof automotive security

Applications
