KIT_PSC3M5_CC2

PSOC™ Control C3M5 Motor Drive Control Card
board

Content could not be loaded

Unfortunately, we were unable to load the content for this section. You may want to refresh the page or try again later.

KIT_PSC3M5_CC2
KIT_PSC3M5_CC2

Product details

  • Core
    ARM Cortex M33
  • Device
    PSC3M5FDS2AFQ1
  • Family
    PSOC™ Control C3
  • Features
    2 User LED, 2 Debug LED & Aux LED, 1 Power LED
  • GPIOs/Shield Compatibility
    MADK
  • Hardware Compatibility
    MADK Power boards
  • Programmer/Debugger
    SEGGER J-Link Lite
  • Sensors
    Hall sensors
  • Software Ecosystem
    ModusToolbox™ Software
  • Software Support
    ModusToolbox
  • Speed [m/s]
    ModusToolbox
Recommended
OPN
KITPSC3M5CC2
Product Status active and preferred
Infineon Package N/A
Package Name N/A
Packing Size 1
Packing Type CONTAINER
Moisture Level NA
Moisture Packing NON DRY
Lead-free No
Halogen Free No
RoHS Compliant Yes
Infineon stock last updated:

Product Status
Active
Infineon Package N/A
Package Name -
Packing Size 1
Packing Type CONTAINER
Moisture Level NA
Moisture Packing NON DRY
Lead Free
Halogen Free
RoHS Compliant

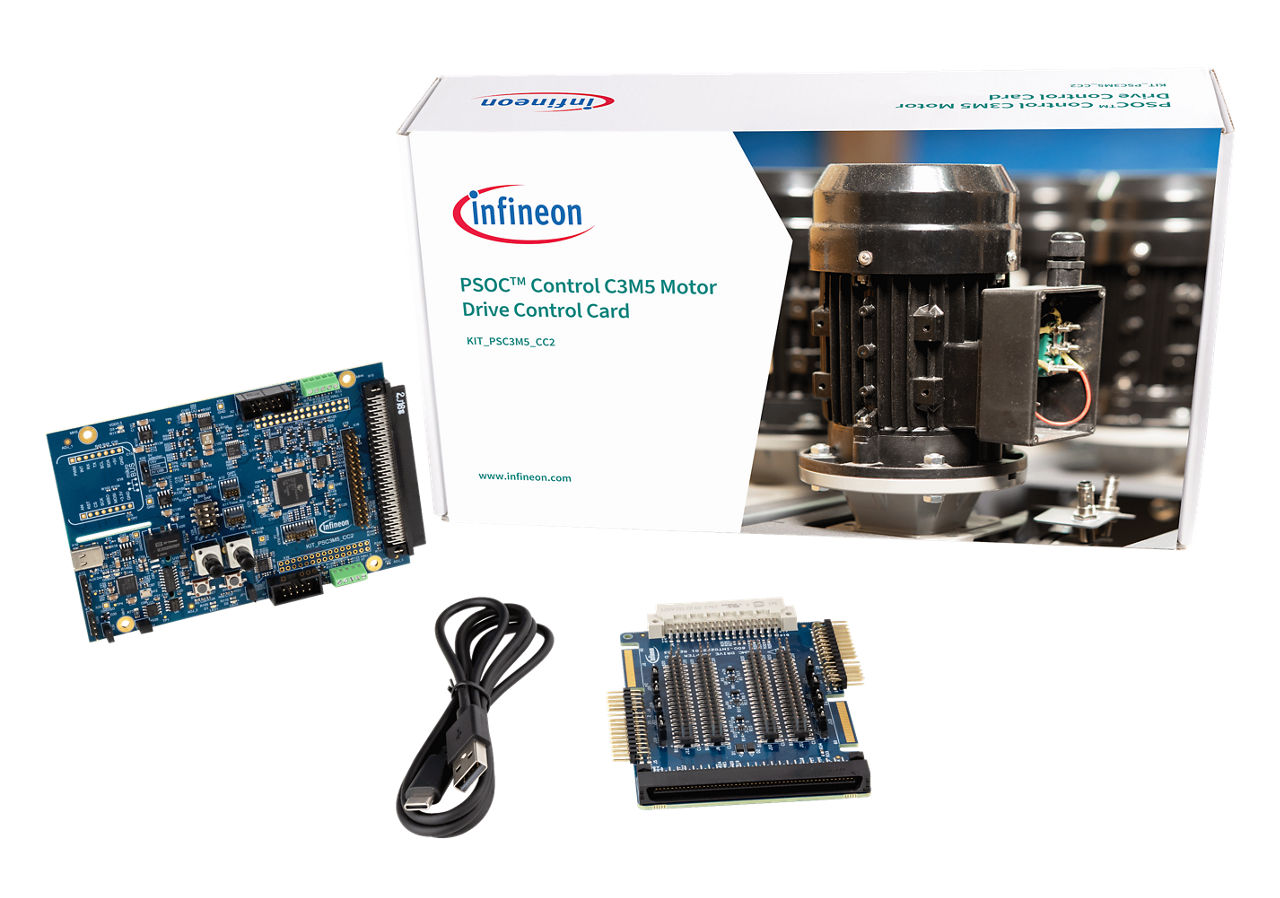

The PSOC™ Control C3M5 CC2 motor control kit is an evaluation board designed to help engineers in developing PSOC™ Control C3 based motor control solutions.  A suitable power stage can quickly be made with available MADK connector (M1/M3/M5) to drive a variety of motors.  The board features an isolated onboard debugger for programming and debugging over a USB interface.  CC2 is a subset of the MC1 kit without the power board.

Features

  • PSOC™ Control C3M5 PSC3M5FDS2AFQ1
  • Connection to MADK boards (M1, M3, M5)
  • On-board debugger (SEGGER J-Link LITE)
  • 2 User LED - User-controlled LED
  • 2 Debug LED & Aux LED - Debugger LEDs

Benefits

  • Out-of-the-box configuration
  • Sensored or sensorless FOC motor control
  • Can be configured to run two motors
  • Code examples to shorten development
  • Modular setup to adapt new power boards

Applications
