EVALLEDICL8105F2
EVALLEDICL8105F2

Product details

  • Board Type
    Reference Board
  • Dimensions
    105 x 60 x 25
  • Family
    LED Driver & Ballast Controller
  • Input Type
    AC, DC
  • Interfaces
    UART
  • Output Current
    880 mA
  • Output Voltage
    15 V to 45 V
  • Pout
    40 W
  • Qualification
    Consumer
  • Sub Application
    Power Management
  • Supply Voltage
    90 V to 300 V
  • Target Application
    Power Supplies
  • Topology
    Flyback
OPN
Product Status
Infineon Package
Package Name
Packing Size
Packing Type
Moisture Level
Moisture Packing
Lead-free
Halogen Free
RoHS Compliant
Infineon stock last updated:

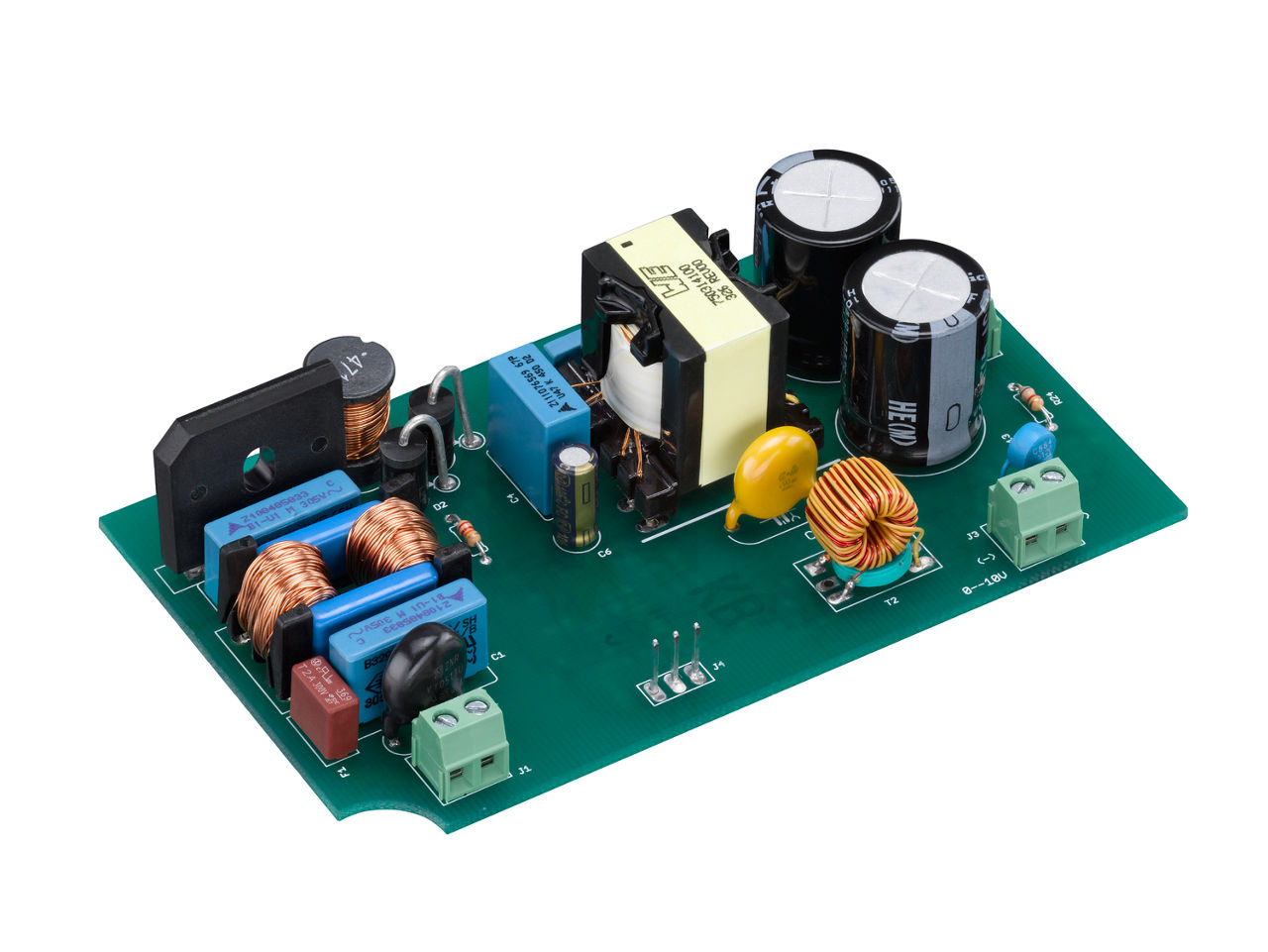

The 40W LED driver with isolated 0 – 10 V dimming interface allows quick performance assessment and bill of materials evaluation. It supports universal input voltage, wide output voltage range, and isolated 0-10 V dimming for LED lighting applications. Integrated with Infineon components, including the ICL8105 digital flyback controller and 800V CoolMOS™, it ensures efficient and reliable LED driver functionality.

Features

  • Single-stage flyback with power factor correction (PFC) and high-precision primary side-controlled constant current output. Excellent current accuracy of typ +/-3% across wide line/load to maintain aconstant light output
  • The ICL8105 supports isolated 0-10 V dimming without the need for extra ICs. Extended dimming is supported down to 1% of the nominal load. Besides, the dimming curve is adjustable (linear / eye adapted).Configurable voltage levels ensure that min and max current can always be achieved, making the application robust against dimmer & component tolerances
  • Quick design and variant handling supported by digital parameter configurability with .dp vision GUI. E.g. Output current setting, protections, temperature handling, startup & shutdown, dimming, power factor correction and operation fine tuning
  • Excellent line/load regulation over universal input and wide output within +3/-4%
  • Low Bill Of Materials (BOM)
  • Intelligent thermal management
  • ICL8105 incl optimized parameter setting, device parameters optionally configurable by graphical user interface (.dp vision)
