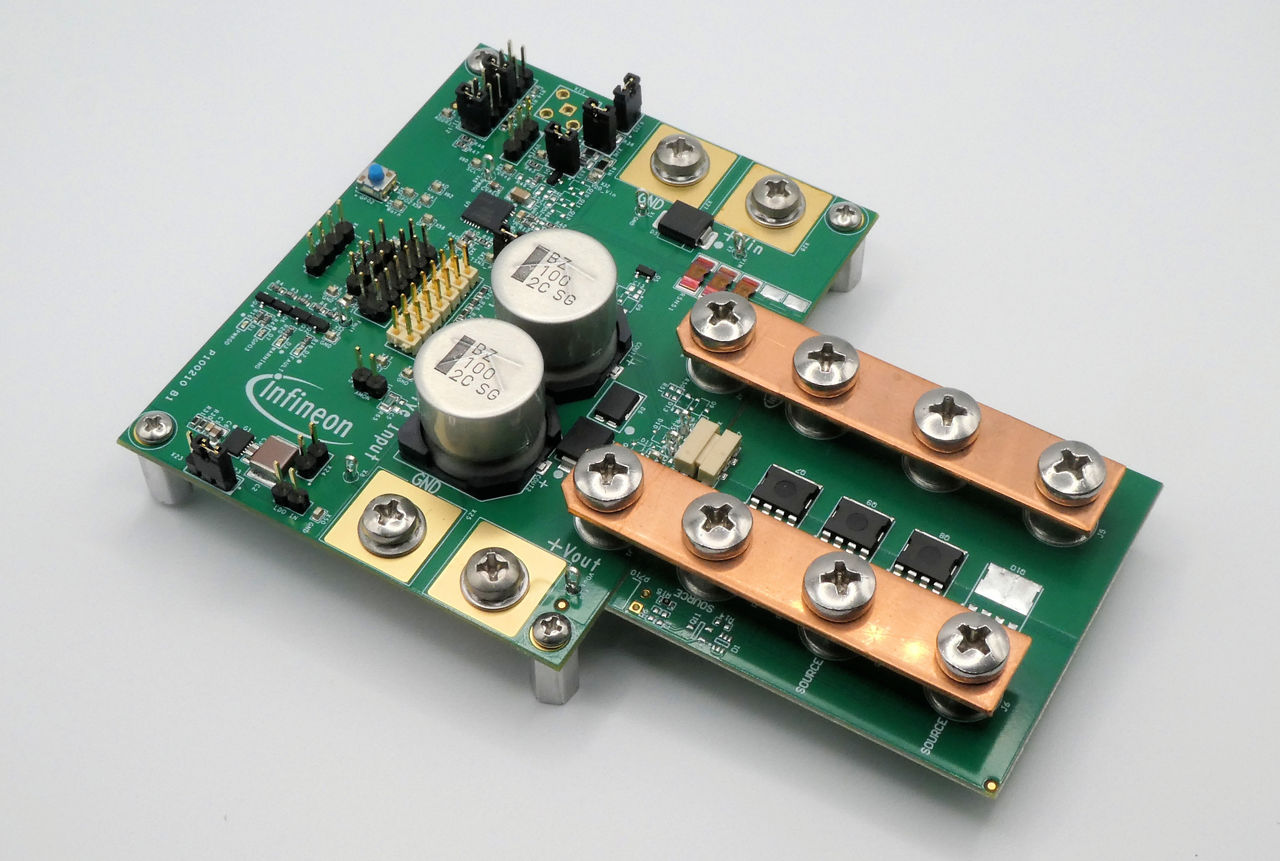

EVAL_XDP711-001

Evaluation board for XDP711-001

Content could not be loaded

Unfortunately, we were unable to load the content for this section. You may want to refresh the page or try again later.

EVAL_XDP711-001
EVAL_XDP711-001

Product details

  • Board Name
    EVAL_XDP711-001
  • Board Type
    Evaluation Board
  • Configuration
    XDP711-001, IPM018N10NM5LF2
  • Description
    This board features the XDP711-001, a wide input voltage range (7V to 80V) hot-swap controller to provide controlled turn-on of the FETs to reduce the inrush current on capacitive load. It allows for testing of controlled turn-on of N-Channel MOSFETs in various footprints with option to add multiple FETs in parallel for higher power levels.
  • Dimensions
    121mm x 75mm
  • Family
    Protection and monitoring ICs
  • Input Type
    DC
  • Mounting
    Stand Offs
  • Output Current max
    100 A
  • Output Voltage
    7 V to 80 V
  • Pout
    0 kW to 6.6 kW
  • Qualification
    Industrial
  • Supply Voltage
    7 V to 80 V
  • Target Application
    Server factories, SMPS Switch Mode Power Supply, GPU accelerator cards, AI
Recommended
OPN
EVALXDP711001TOBO1
Product Status active and preferred
Infineon Package --
Package Name N/A
Packing Size 1
Packing Type CONTAINER
Moisture Level N/A
Moisture Packing NON DRY
Lead-free No
Halogen Free No
RoHS Compliant Yes
Infineon stock last updated:

Product Status
Active
Infineon Package --
Package Name -
Packing Size 1
Packing Type CONTAINER
Moisture Level -
Moisture Packing NON DRY
Lead Free
Halogen Free
RoHS Compliant
This evaluation board features the wide input voltage range digital hot-swap controller XDP™ XDP711-001 to provide a controlled turn-on of the FETs to reduce the inrush current on capacitive load. In conjunction with the module EVAL_XDP7xx_FET_BRD_mTOLL, it allows for testing the turn-on behavior of one or multiple (parallel) N-channel MOSFETs. This FET board is exchangeable by other FET boards to evaluate other MOSFET packages.

Features

  • Easy input and output connections
  • Provides PMBus® interface
  • Per pin diagnostics
  • Wide input voltage range
  • On board capacitive load
  • Fault, warning, power good LEDs
  • RESTART push button
  • Easy-mode-selection using jumpers
  • Configurable 3.3 V / 5 V bias

Benefits

  • Various MOSFET package selection
  • Easy paralleling of MOSFET
  • Easy-to-scale design with multiple shunts
  • Port of XDP™ designer dongle
  • Easy mode configuration
  • Easy device address selection
  • Board optimized for high-power designs
  • On board I2C pullups
