EVAL_TOLL_72VDC_2KW
EVAL_TOLL_72VDC_2KW
ea.

Product details

  • Description
    Evaluation Board for 120V TOLL MOSFET in BLDC motor drive
  • Dimensions
    67mm Height, 172mm width, 130mm lenth
  • Frequency
    10 kHz to 20 kHz
  • Input Type
    AC
  • Pout max
    2000 W
  • Qualification
    Industrial
  • Sub Application
    Gardening Tools
  • Supply Voltage
    24 V to 84 V
  • Target Application
    Motor Control & Drives
  • Topology
    Half Bridge
Recommended
OPN
EVALTOLL72VDC2KWTOBO1
Product Status active and preferred
Infineon Package --
Package Name N/A
Packing Size 1
Packing Type CONTAINER
Moisture Level N/A
Moisture Packing NON DRY
Lead-free No
Halogen Free No
RoHS Compliant No
Infineon stock last updated:
 ea. in stock

Product Status
Active
Infineon Package --
Package Name -
Packing Size 1
Packing Type CONTAINER
Moisture Level -
Moisture Packing NON DRY
Lead Free
Halogen Free
RoHS Compliant
ea.
in stock

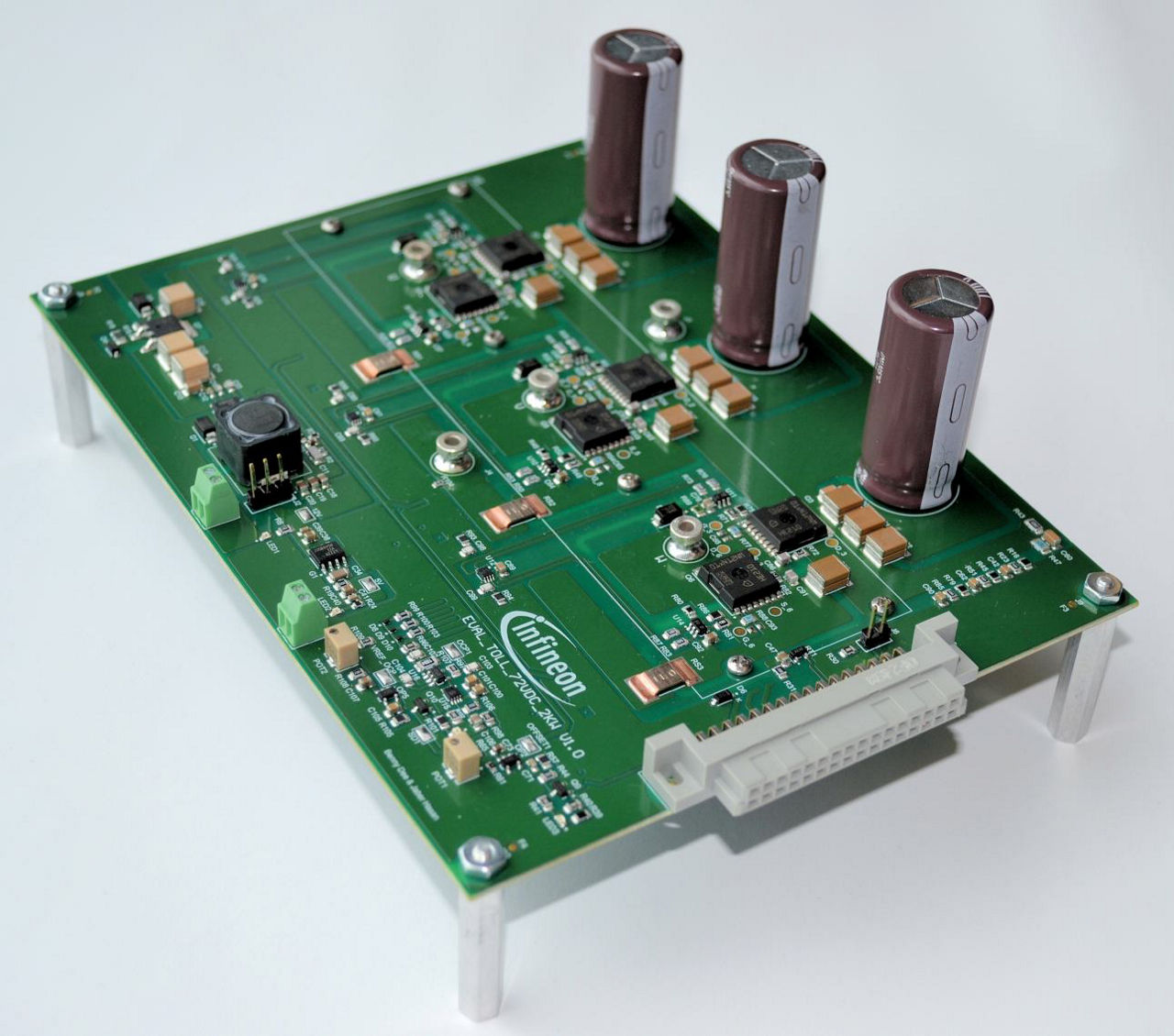

The EVAL_TOLL_72VDC_2kW evaluation power board utilizes new OptiMOS™ 6 120V power MOSFET technology, ideal for 60V-84V BLDC motor drives in high-power tools. It is designed to be used with the Infineon XMC1300 drive card KIT_XMC1300_DC_V1 (or higher) with the correct firmware. Both the power board and the drive card are essential for this application, requiring a 32-pin male-female connector (MAB32B2-FAB32Q2) for connection.

Features

  • Single MOSFET inverter
  • 32-pin connector power board XMC1300
  • 72V nominal input voltage
  • Capable of commutation and FOC control
  • 12 V and 5 V supplies for ICs

Benefits

  • High efficiency
  • Excellent thermal management
  • Modular design – power board

Applications
