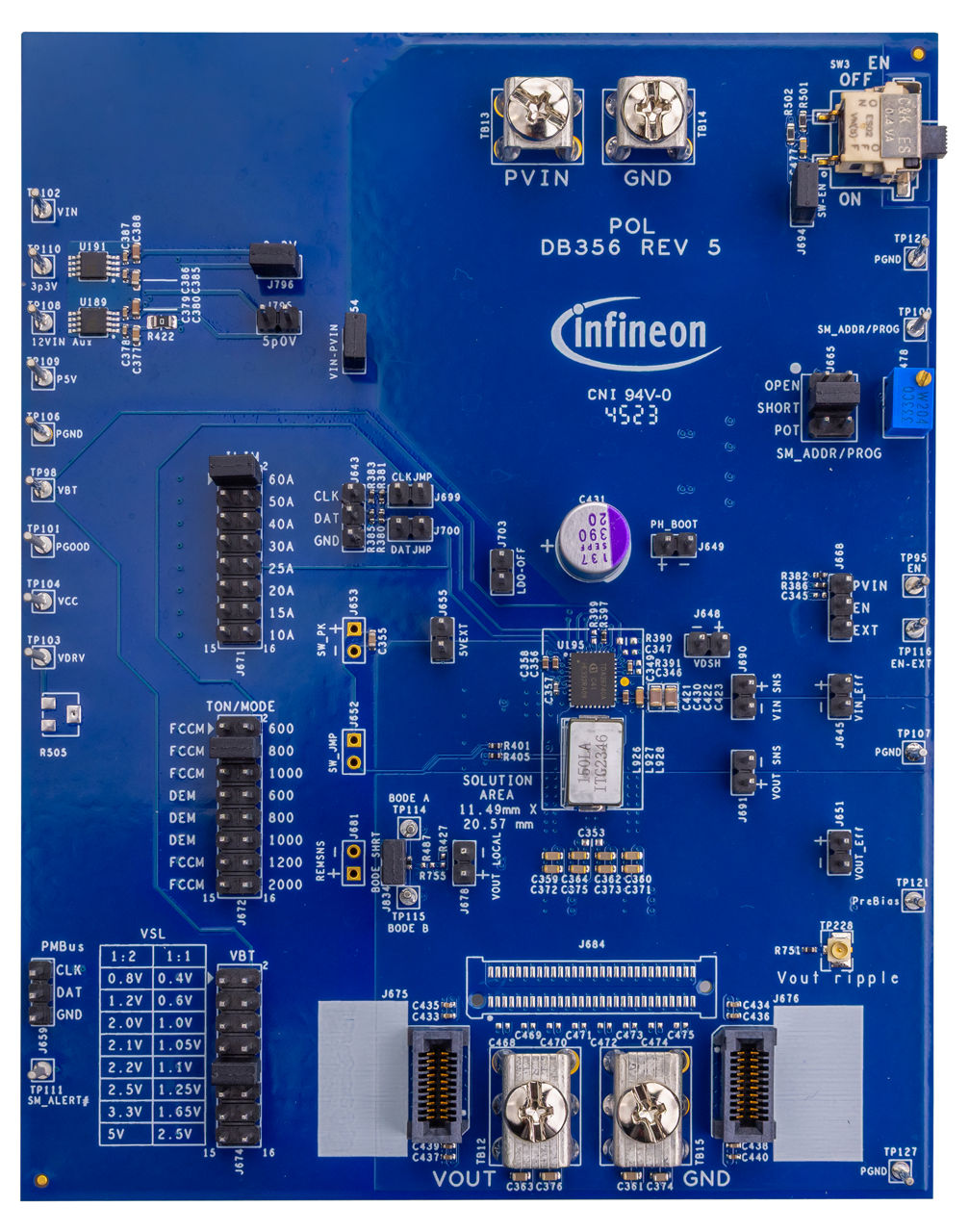

EVAL_TDA38640A_1.0VOUT

Evaluation demoboard 1.0 Vout for IPOL single-output synchronous voltage regulator TDA38640A
User Manual
ea.
in stock

Content could not be loaded

Unfortunately, we were unable to load the content for this section. You may want to refresh the page or try again later.

EVAL_TDA38640A_1.0VOUT
EVAL_TDA38640A_1.0VOUT
ea.
User Manual

Product details

  • Board Type
    Evaluation Board
  • Configuration
    TDA38640A
  • Description
    Evaluation demoboard 1.0 Vout for IPOL single-voltage regulator TDA38640A
  • Family
    OptiMOS™ IPOL
  • Frequency
    1000 kHz, 400 kHz to 1000 kHz
  • Halogen-free
    Yes
  • Input Type
    DC
  • Output Current max
    40 A
  • Output Voltage
    0.25 V to 5.12 V
  • Supply Voltage
    3 V to 17 V
  • Target Application
    Data centers
  • Topology
    Buck
Recommended
OPN
EVALTDA38640A10VOUTTOBO1
Product Status active
Infineon Package --
Package Name N/A
Packing Size N/A
Packing Type CONTAINER
Moisture Level N/A
Moisture Packing N/A
Lead-free No
Halogen Free No
RoHS Compliant Yes
Infineon stock last updated:
 ea. in stock

Product Status
Active
Infineon Package --
Package Name -
Packing Size 0
Packing Type CONTAINER
Moisture Level -
Moisture Packing
Lead Free
Halogen Free
RoHS Compliant
ea.
in stock
OptiMOS™ IPOL TDA38640A is a synchronous buck converter with both SVID communication interface, providing a compact, high-performance, and flexible solution in a compact QFN package. This evaluation board is to be used during the design process for evaluating and measuring characteristic curves, and for understanding the various part features.
