EVAL_MTR_48V150A_GAN

Evaluation board for low-voltage and high-power motor drive solutions with CoolGaN™ Transistors 80 V G3 and TDI EiceDRIVER™ 1EDN7116U
User manual
board
ea.
in stock

Content could not be loaded

Unfortunately, we were unable to load the content for this section. You may want to refresh the page or try again later.

EVAL_MTR_48V150A_GAN
EVAL_MTR_48V150A_GAN
ea.
User manual

Product details

  • Efficiency
    99%
  • Family
    CoolGaN™
  • Input Type
    Battery
  • Input Voltage range
    14 V to 66 V
  • Output Current range
    110 A to 160 A
  • Output Voltage Type
    AC
  • Output Voltage range
    0 V to 19.5 V
  • Switching Frequency range
    50 kHz to 100 kHz
Recommended
OPN
EVALMTR48V150AGANTOBO1
Product Status active and preferred
Infineon Package N/A
Package Name N/A
Packing Size 1
Packing Type CONTAINER
Moisture Level NA
Moisture Packing NON DRY
Lead-free No
Halogen Free No
RoHS Compliant No
Infineon stock last updated:
 ea. in stock

Product Status
Active
Infineon Package N/A
Package Name -
Packing Size 1
Packing Type CONTAINER
Moisture Level NA
Moisture Packing NON DRY
Lead Free
Halogen Free
RoHS Compliant
ea.
in stock

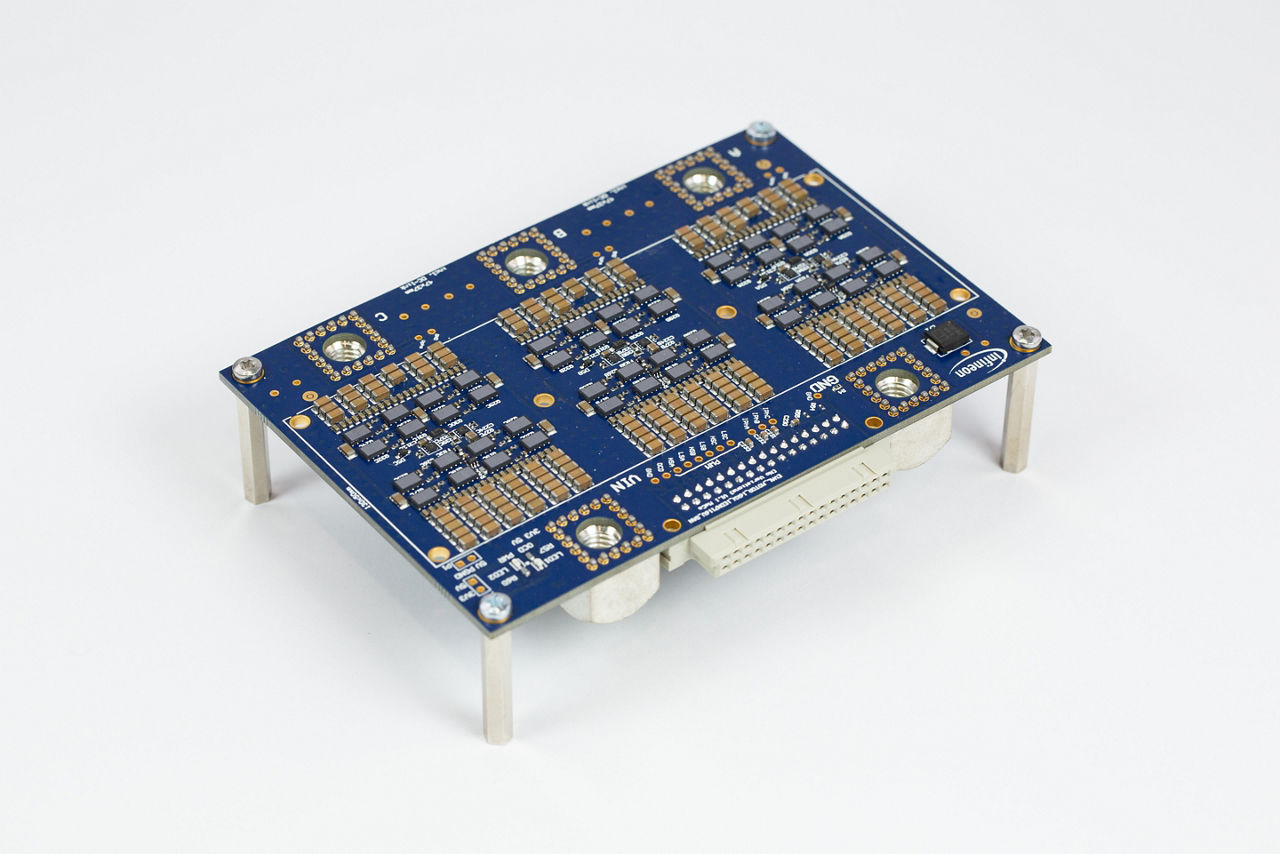

The EVAL_MTR_48V150A_GaN is an evaluation board for FOC motor drive applications, including eight CoolGaN™ Transistors 80 V G3 in parallel. For each side of the half-bridge configuration, the EiceDRIVER™ gate drive IC 1EDN7116U is used. In addition, three in-phase current sensors using the XENSIV™ TLE4972 magnetic current sensors provide accurate phase current measurements at any switching frequency.

Features

  • Optimized parallel half-bridge layout
  • Waveform connection
  • DC voltage connection
  • On-board temperature sensing
  • Multiple PWM input options

Benefits

  • High efficiency
  • High power density
  • Easily scalable design

Applications
