not for new design
RoHS Compliant

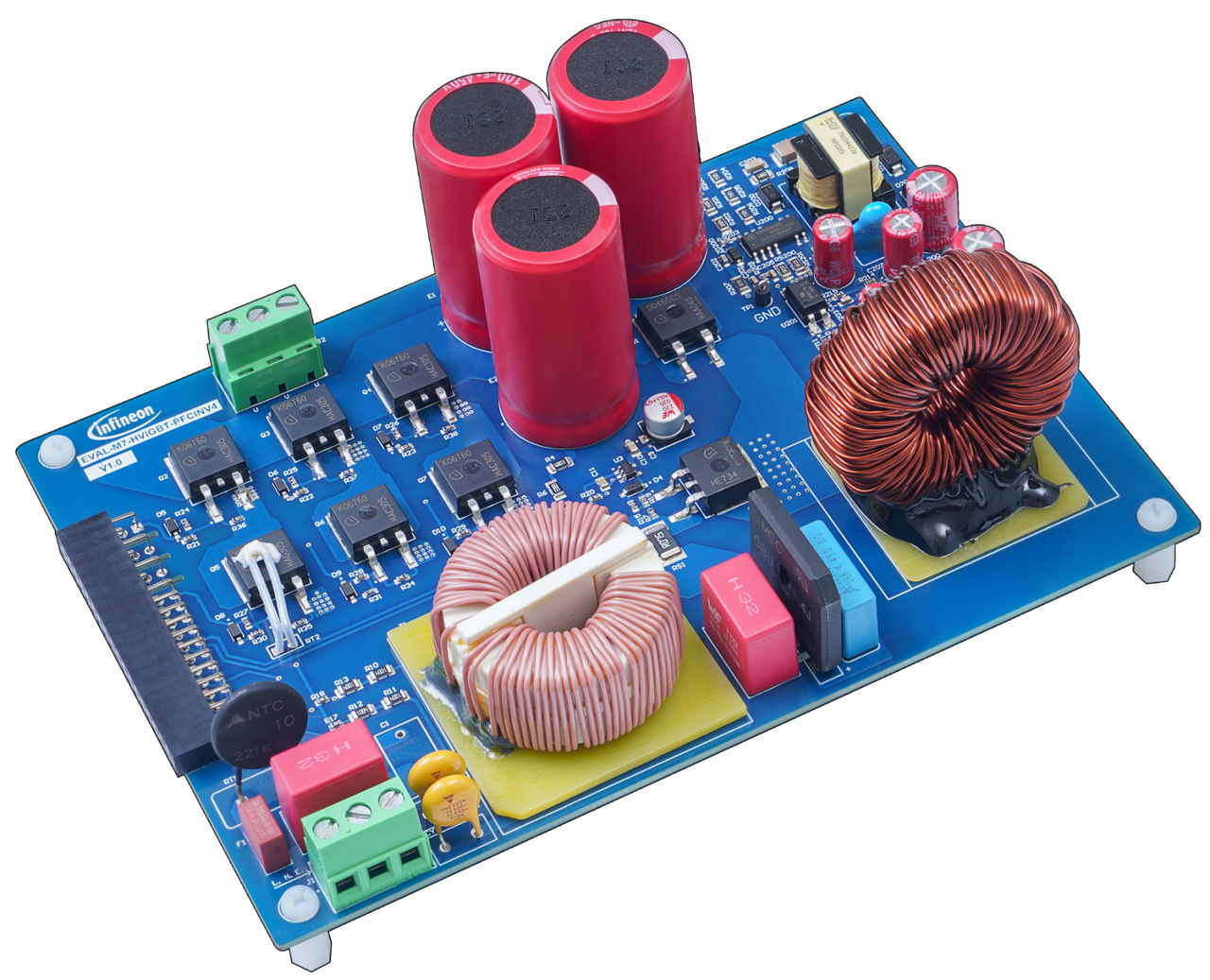

EVAL-M7-HVIGBT-PFCINV4

iMOTION™ MADK evaluation board for TRENCHSTOP™ RCD2 IGBT
User Manual
ea.
in stock

Content could not be loaded

Unfortunately, we were unable to load the content for this section. You may want to refresh the page or try again later.

EVAL-M7-HVIGBT-PFCINV4
EVAL-M7-HVIGBT-PFCINV4
ea.
User Manual

Product details

  • Applications
    Aircon, Drives, Pumps, Refrigerator
  • Board Type
    Evaluation Board
  • Dimensions
    153x107x42 mm
  • Family
    iMOTION™ Motor Control ICs, IGBT Discrete
  • Input Type
    AC
  • Interfaces
    MADK-M7
  • Motor Power max
    200 W
  • Product Name
    EVAL-M7-HVIGBT-PFCINV4
  • Qualification
    Industrial
  • Sub Application
    Major Home Appliances, Small Home Appliances
  • Target Application
    Home Appliances
  • Topology
    CCM boost PFC, 3-Phase control
OPN
EVALM7HVIGBTPFCINV4TOBO1
Product Status not for new design
Infineon Package --
Package Name N/A
Packing Size 1
Packing Type CONTAINER
Moisture Level N/A
Moisture Packing NON DRY
Lead-free No
Halogen Free No
RoHS Compliant Yes
Infineon stock last updated:
 ea. in stock

Product Status not for new design
Infineon Package --
Package Name -
Packing Size 1
Packing Type CONTAINER
Moisture Level -
Moisture Packing NON DRY
Lead Free
Halogen Free
RoHS Compliant
ea.
in stock
The EVAL-M7-HVIGBT-PFCINV1 is an MADK platform power board. It implements a three phase inverter plus a power factor correction (PFC) running in CCM mode with a PWM rate up to 40kHz. The inverter is using the latest generation of TRENCHSTOP™ reverse conduction IGBTs while the PFC is based on a high speed TRENCHSTOP™ 5 IGBT. In combination with the matching control board the power board targets motor systems like fans, pumps and compressors.

Features

  • Ready to use 3-phase motor power stage
  • Reverse conducting IGBTs with max. 650 V
  • High speed TRENCHSTOP™ 5 IGBT for PFC
  • Nominal input voltage 220 VAC
  • Up to 200 W output power without cooling
  • Up to 40 kHz PFC PWM rate
  • Test hooks to attach oscilloscope probes
  • MADK M7 32pin interface connector

Benefits

  • Evaluate 650 V RC-D2 with IMD110 driver
  • Cost efficient inverter and PFC design
  • High electrical robustness
  • Very good EMI performance
