Active and preferred
RoHS Compliant

EVAL-IMOTION2GO

Easy introduction to iMOTION™ system, tools and software
User Manual
software
ea.
in stock

Content could not be loaded

Unfortunately, we were unable to load the content for this section. You may want to refresh the page or try again later.

EVAL-IMOTION2GO
EVAL-IMOTION2GO
ea.
User Manual

Product details

  • Applications
    DEMO for iMOTION Ecosystem
  • Board Type
    Evaluation Board
  • Dimensions
    19x70mm
  • Family
    iMOTION™ Motor Control ICs
  • Input Type
    DC
  • Interfaces
    USB
  • Motor Power max
    1 W
  • Output Current
    0 mA to 150 mA
  • Output Voltage max
    5 V
  • Product Name
    EVAL-IMOTION2GO
  • Qualification
    Industrial
  • Sub Application
    DEMO for iMOTION Ecosystem
  • Supply Voltage
    5 V
  • Target Application
    Industrial Motor Control and Drives, Home Appliances
  • Topology
    leg-shunt, single-shunt
Recommended
OPN
EVALIMOTION2GOTOBO1
Product Status active and preferred
Infineon Package --
Package Name N/A
Packing Size 1
Packing Type CONTAINER
Moisture Level N/A
Moisture Packing NON DRY
Lead-free No
Halogen Free No
RoHS Compliant Yes
Infineon stock last updated:
 ea. in stock

Product Status
Active
Infineon Package --
Package Name -
Packing Size 1
Packing Type CONTAINER
Moisture Level -
Moisture Packing NON DRY
Lead Free
Halogen Free
RoHS Compliant
ea.
in stock
The Starter kit introduces iMOTION™ devices and systems, providing a USB-powered setup for evaluating iMOTION™ tools and software. The featured IMC101T-T038 device enables sensorless field-oriented control without coding, and the pre-programmed kit runs a script-based demo with a small motor. Users can download essential tools and software from the website for evaluation and learning.

Features

  • Starter kit for iMOTION
  • Fully operational inverter system
  • Single shunt sensorless FOC
  • BLDC motor mounted on the board
  • User programmable script engine
  • On-board debugger interface
  • USB powered operation

Benefits

  • Run a motor in less than 1 hour!
  • Simple setup and easy tuning
  • iMOTION™ Solution Designer support
  • No coding for motor control
  • Safe 5 V USB power operation

Applications

Bill of Material

Documents

Documents

Design resources

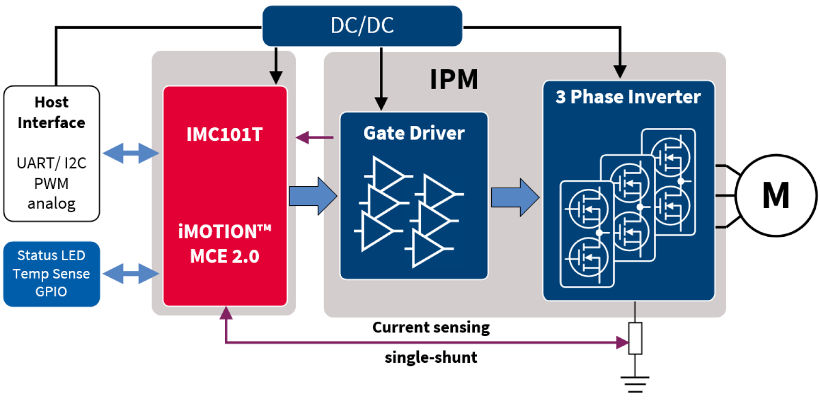

Diagrams

iMOTION2go
iMOTION2go
iMOTION2go iMOTION2go iMOTION2go
×
