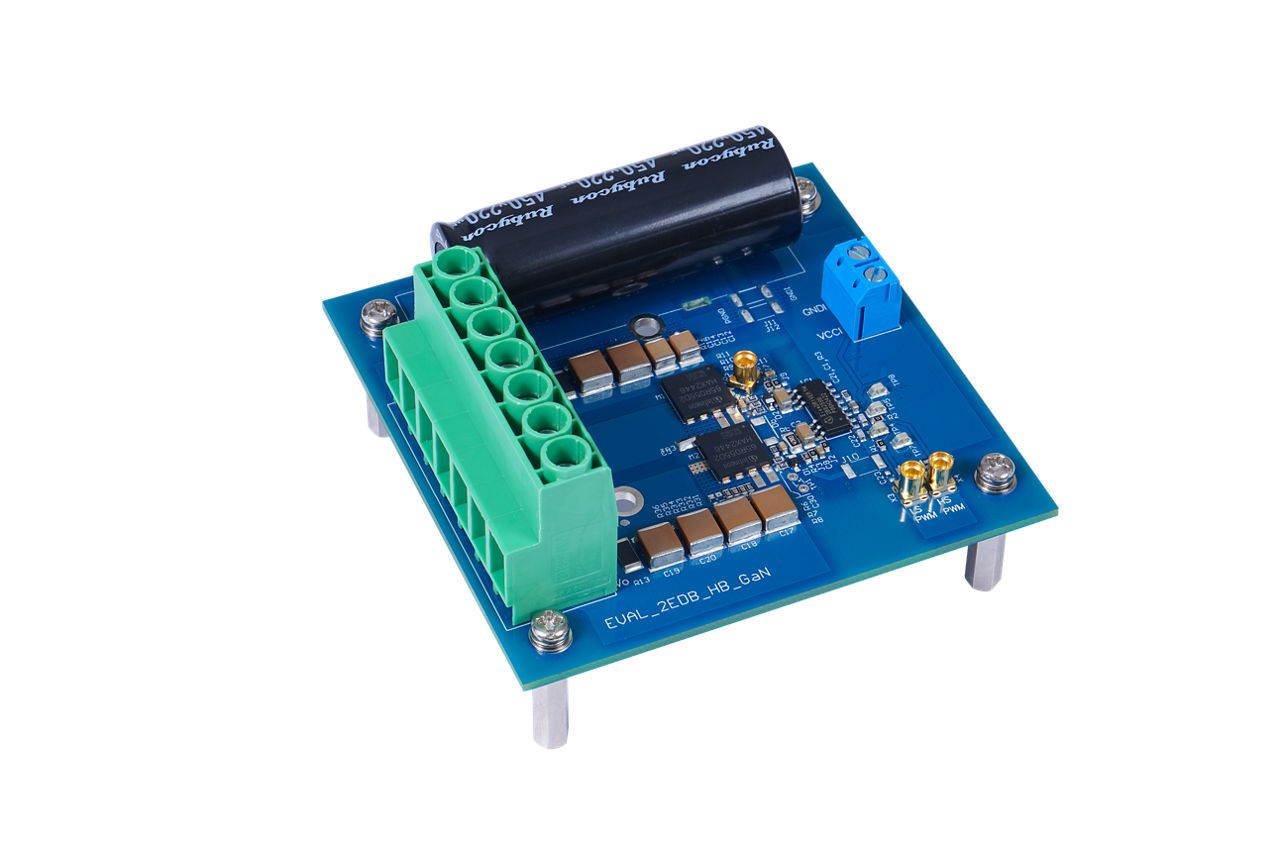

EVAL_2EDB_HB_GAN

CoolGaN™ GIT HEMT half-bridge evaluation board with EiceDRIVER™ 2EDB8259Y
Application Notes

Content could not be loaded

Unfortunately, we were unable to load the content for this section. You may want to refresh the page or try again later.

EVAL_2EDB_HB_GAN
EVAL_2EDB_HB_GAN
Application Notes

Product details

  • Dimensions
    76,7x 74,3 x 1,6
  • Family
    High/Low Side Switch
  • Frequency max
    2000 kHz
  • Input Type
    DC
  • Interfaces
    7-pole position terminal block, 2-pole position terminal block with 5.08mm pitch
  • Iout
    Depends on the topology and frequency
  • Mounting
    screw driver for cables connection
  • Output Voltage
    0 V to 450 V
  • Qualification
    Industrial
  • Sub Application
    Industrial
  • Supply Voltage
    0 V to 450 V
  • Target Application
    Server and Telecom switch-mode power supplies (SMPS), EV Off-board chargers, Solar micro inverter, Industrial power supplies (SMPS, Residential UPS)
  • Topology
    Half Bridge
Recommended
OPN
EVAL2EDBHBGANTOBO1
Product Status active and preferred
Infineon Package --
Package Name N/A
Packing Size 1
Packing Type CONTAINER
Moisture Level N/A
Moisture Packing NON DRY
Lead-free No
Halogen Free No
RoHS Compliant No
Infineon stock last updated:

Product Status
Active
Infineon Package --
Package Name -
Packing Size 1
Packing Type CONTAINER
Moisture Level -
Moisture Packing NON DRY
Lead Free
Halogen Free
RoHS Compliant
The EVAL_2EDB_HB_GaN facilitates testing of Infineon CoolGaN™ GIT HEMT with EiceDRIVER™ 2EDB8259Y. It supports configuration of the auxiliary supply as bipolar or unipolar, isolated or non-isolated, with or without bootstrap, and is suitable for buck or boost-mode, double-pulse testing, continuous PWM operation, and hard-/soft-switching at high power levels and MHz frequencies, eliminating the need for custom gate driver and power circuit design.

Features

  • Simple GaN half-bridge with dedicated GaN driver ICs
  • Configurable auxiliary supply: unipolar vs. bipolar (with regulation on positive or negative rail), isolated vs non-isolated (bootstrap)
  • Shunt on low-side GaN for current measurement

Benefits

  • Easy setup and use
  • Enable testing with different configurations (Buck, Boost, Direct and Reverse Double Pulse)
  • Evaluate high-frequency capabilities of GaN
  • Evaluate waveforms with low ringing, overshoot, EMI
  • Enables easy evaluation at multi-kilowatt power levels
  • Shoot-through check and Eoss measurements via current shunt
