Active and preferred

EVAL-1ED3122MX12H

Evaluation board for 1ED3122MX12H - 2300 V, 10 A, 5.7 kV (rms) single-channel isolated gate driver
Application Notes
ea.
in stock

Content could not be loaded

Unfortunately, we were unable to load the content for this section. You may want to refresh the page or try again later.

EVAL-1ED3122MX12H
EVAL-1ED3122MX12H
ea.
Application Notes

Product details

  • Board Type
    Evaluation Board
  • Family
    IGBT Discrete, CoolSiC™ MOSFET, Gate Driver
  • Input Type
    DC
  • Product Name
    EVAL-1ED3122MX12H
  • Qualification
    Industrial
  • Sub Application
    Server, Telecommunication
  • Supply Voltage
    16 V
  • Target Application
    EV Charger, Industrial Drives, Induction Heating, Power Supplies, Commercial Air Conditioning, Solar Energy Systems
  • Topology
    Half Bridge
Recommended
OPN
EVAL1ED3122MX12HTOBO1
Product Status active and preferred
Infineon Package --
Package Name N/A
Packing Size 1
Packing Type CONTAINER
Moisture Level N/A
Moisture Packing DRY
Lead-free No
Halogen Free No
RoHS Compliant No
Infineon stock last updated:
 ea. in stock

Product Status
Active
Infineon Package --
Package Name -
Packing Size 1
Packing Type CONTAINER
Moisture Level -
Moisture Packing DRY
Lead Free
Halogen Free
RoHS Compliant
ea.
in stock

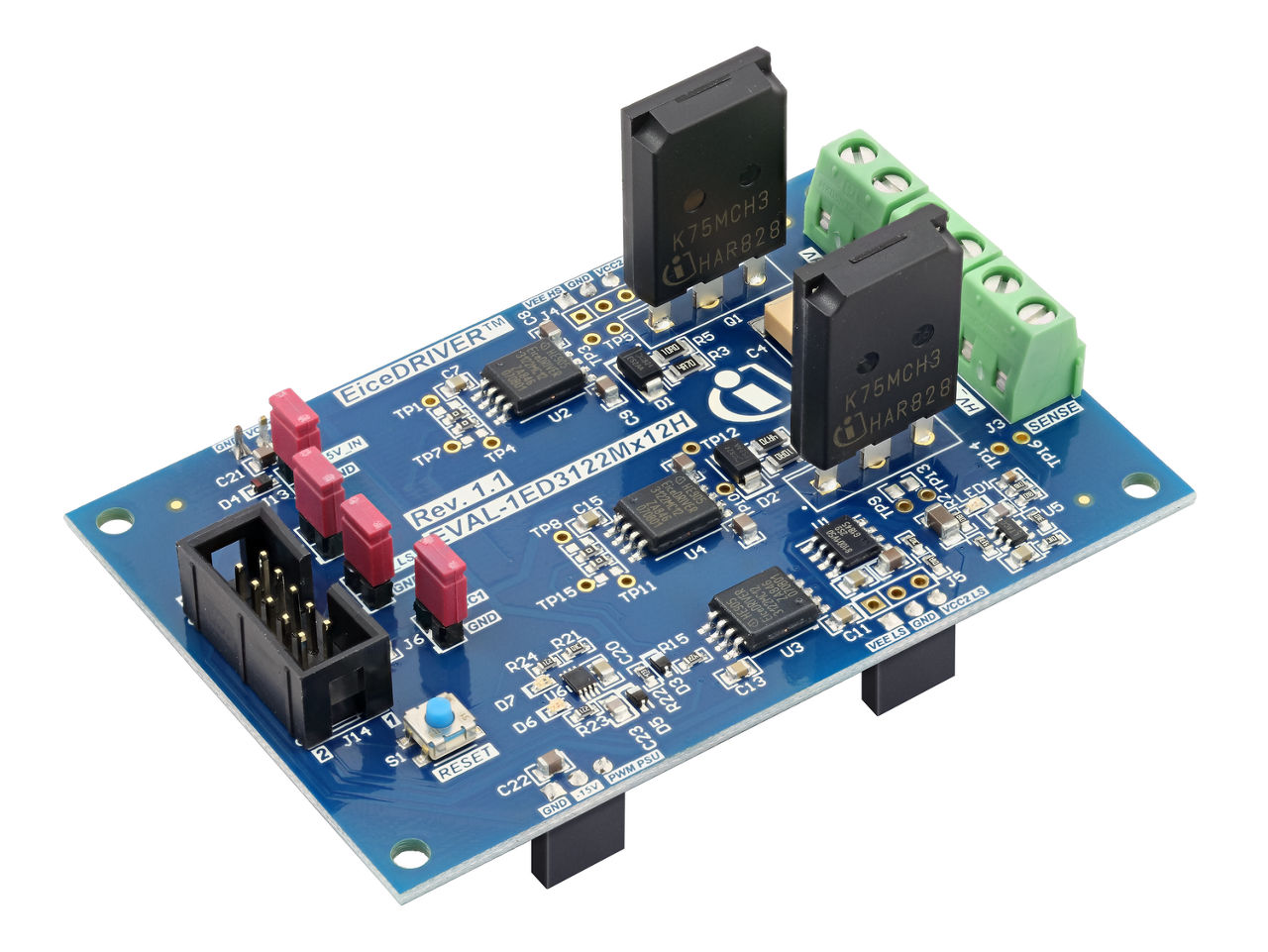

The EVAL-1ED3122MX12H features a half-bridge configuration with 1ED3122MU12H gate driver ICs for IGBTs and SiC MOSFETs, along with TRENCHSTOP™ IGBT IKQ75N120CH3. It includes an additional gate driver IC for isolated over-current feedback and is ideal for double-pulse testing. The 1ED3122MU12H provides an active Miller clamp, stable timing, active shutdown, and short-circuit clamping over a wide supply voltage range, unipolar or bipolar.

Features

  • Single channel isolated gate driver
  • For < 2300 V IGBT, SiC & Si MOSFET
  • 2300 V funct. offset volt. capable
  • Galvanically isolated
  • 10 A typ. sink & source peak outp.
  • 40 V absolute max. output voltage
  • 90 ns propagation delay
  • High CMTI >200 kV/μs
  • Active Miller clamp
  • Short-circuit clamping
  • DSO-8 300 mil wide-body package
  • 8 V/10 V UVLO protection
