100W motor drive evaluation board with FOC sensorless control
Application Notes
software
ea.
in stock

Content could not be loaded

Unfortunately, we were unable to load the content for this section. You may want to refresh the page or try again later.

EVAL_100W_DRIVE_CFD2
EVAL_100W_DRIVE_CFD2
ea.
Application Notes

Product details

  • Board Type
    Evaluation Board
  • Dimensions
    Diameter 87mm
  • Family
    Gate Driver, Microcontroller, Linear Voltage Regulator (LDO), Diode (Si, SiC), MOSFET
  • Frequency
    6 kHz to 20 kHz
  • Input Type
    AC
  • Output Current
    0 mA to 500 mA
  • Output Voltage
    120 V to 370 V
  • Pout max
    100 W
  • Product Name
    EVAL_100W_DRIVE_CFD2
  • Qualification
    Consumer, Industrial
  • Sub Application
    Draining and recirculation pumps, Heating systems, Dish washers, Refrigerator compressors, Water pump, Inverterized home appliances solution, Air conditioner fan
  • Supply Voltage
    85 V to 265 V
  • Target Application
    Motor Control & Drives
  • Topology
    3-Phase Motor
OPN
EVAL100WDRIVECFD2TOBO1
Product Status on request
Infineon Package --
Package Name N/A
Packing Size 1
Packing Type CONTAINER
Moisture Level N/A
Moisture Packing NON DRY
Lead-free No
Halogen Free No
RoHS Compliant No
Infineon stock last updated:
 ea. in stock

Product Status on request
Infineon Package --
Package Name -
Packing Size 1
Packing Type CONTAINER
Moisture Level -
Moisture Packing NON DRY
Lead Free
Halogen Free
RoHS Compliant
ea.
in stock

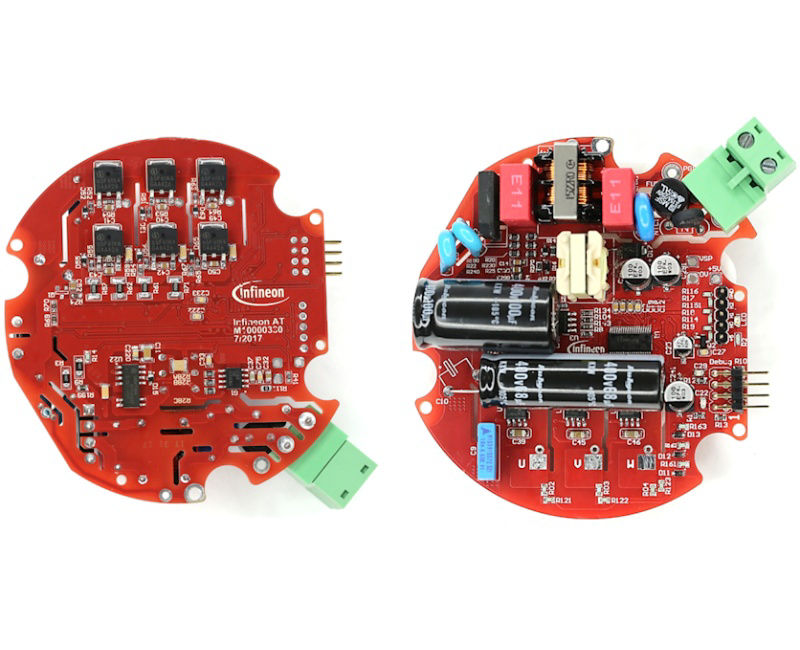

The EVAL_100W_DRIVE_CFD2 motor drive board offers a sensorless synchronous rectification BLDC/PMSM control algorithm, adjustable switching frequency, and a choice between two-phase or three-phase modulation to reduce switching losses. Infineon's CoolMOS™ CFD MOSFET series enhances efficiency and allows for BOM reduction. It can be interfaced through XMC™ Link, an isolated debug probe based on SEGGER J-Link debug firmware for use with DAVE™.
