2ED4820 EB2 2HSV48

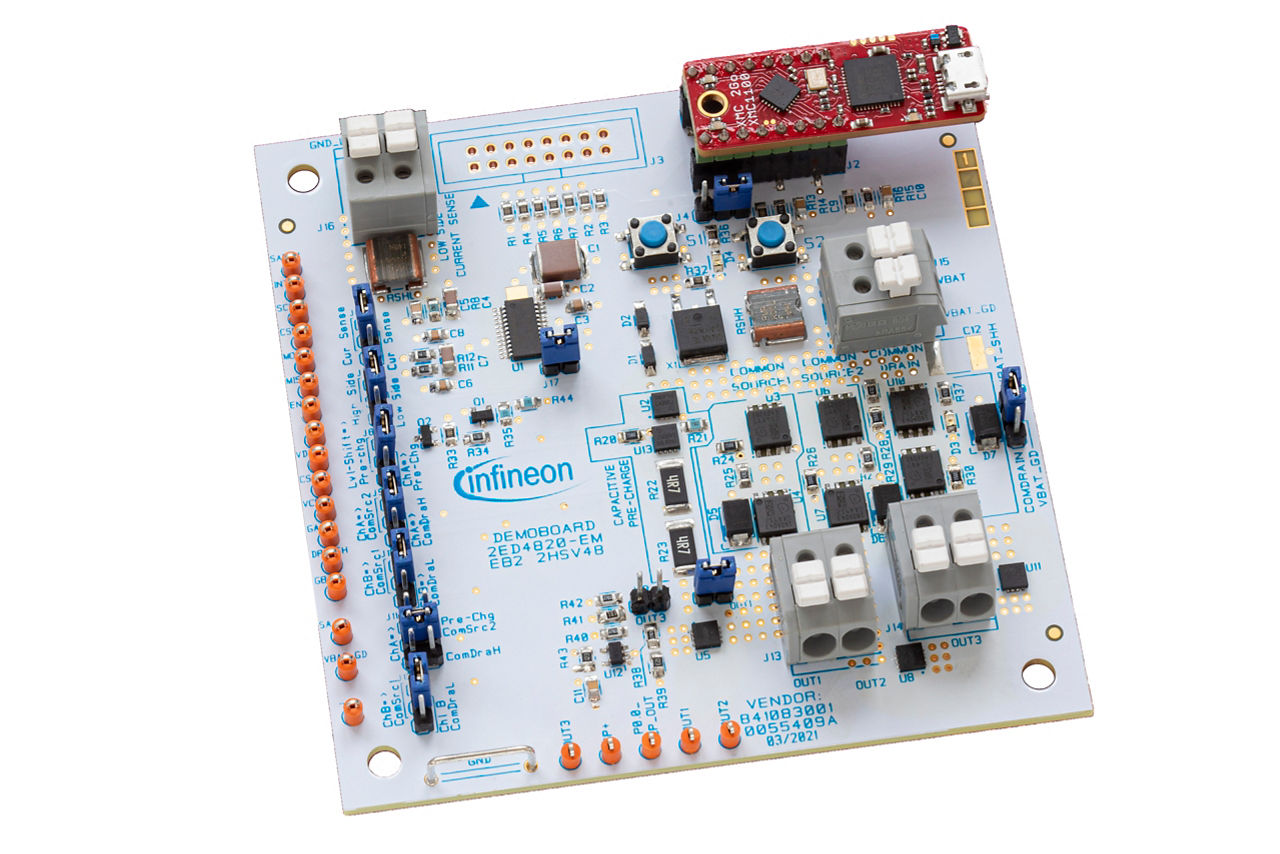

2ED4820-EM Dual high-side switch - 48V Evaluation Board
User Manual
ea.
in stock

Content could not be loaded

Unfortunately, we were unable to load the content for this section. You may want to refresh the page or try again later.

2ED4820 EB2 2HSV48
2ED4820 EB2 2HSV48
ea.
User Manual

Product details

  • Board Type
    Evaluation Board
  • Dimensions
    96 mm x 98 mm
  • Family
    EiceDRIVER™ Gate Driver
  • Halogen-free
    Yes
  • Input Type
    DC
  • Qualification
    Automotive
  • Supply Voltage
    20 V to 70 V
  • Target Application
    Automotive, Battery Switch, Relays, Power Distribution, Motorcycles, E-Bikes & Small E-Vehicles
  • Topology
    High-Side, High-side switch, Back to Back common source, Back to Back common drain
Recommended
OPN
2ED4820EB22HSV48TOBO1
Product Status active and preferred
Infineon Package N/A
Package Name N/A
Packing Size 1
Packing Type CONTAINER
Moisture Level NA
Moisture Packing NON DRY
Lead-free No
Halogen Free No
RoHS Compliant Yes
Infineon stock last updated:
 ea. in stock

Product Status
Active
Infineon Package N/A
Package Name -
Packing Size 1
Packing Type CONTAINER
Moisture Level NA
Moisture Packing NON DRY
Lead Free
Halogen Free
RoHS Compliant
ea.
in stock
This configurable evaluation board supports testing of various configurations: back-to-back MOSFET structures, current sense options, and pre-charge path for up to 1mF capacitive loads. The 2ED4820-EM EiceDRIVERTM APD is controlled by the XMC2GO µController board via SPI. Operated through a Windows-based UI software on a connected PC, it targets 48V automotive power distribution apps, handling currents up to 20A.

Features

  • 2 highside output channels common source
  • Or high-side channel in the common drain
  • Pre-charge path
  • µC controller board (XMC2GO)
  • Monitoring,failure flags are visualized
  • Sensed current displayed
  • Automated capacitive precharge sequences

Applications

Bill of Material

Documents

Documents

Design resources

Diagrams

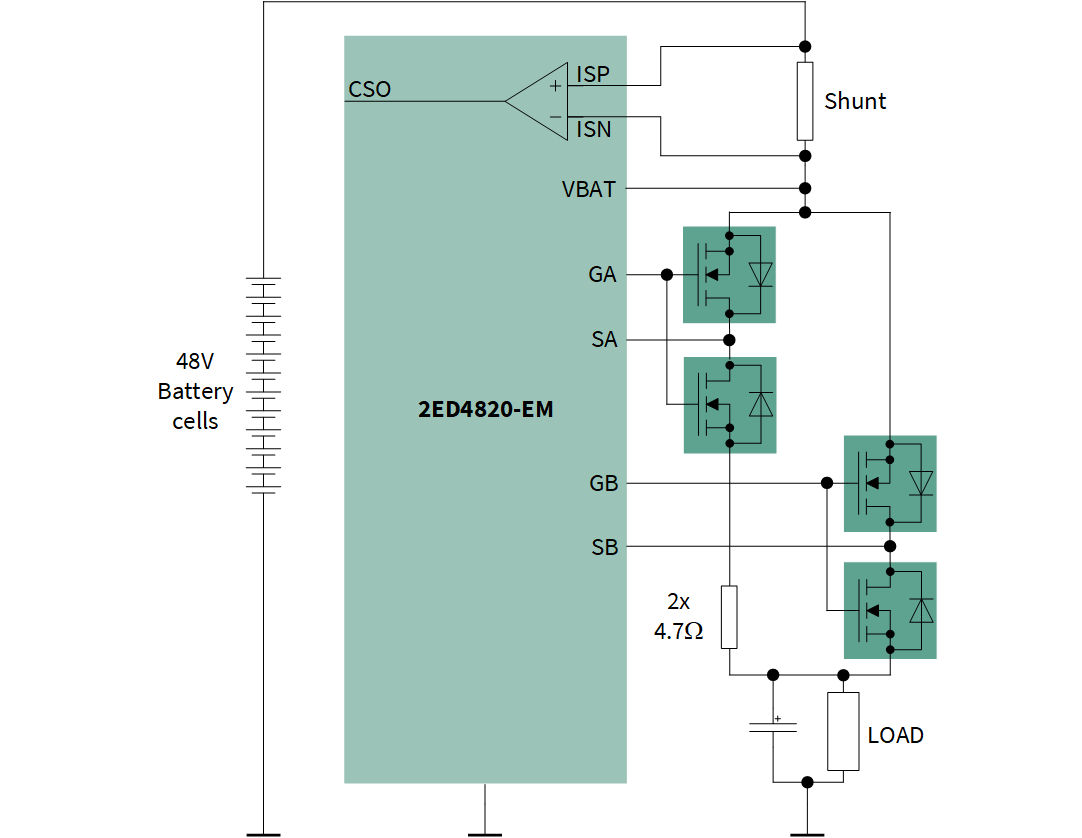

Diagram-4-2ED4820-EM-EB2-2HSV48
Diagram-4-2ED4820-EM-EB2-2HSV48
Diagram-4-2ED4820-EM-EB2-2HSV48 Diagram-4-2ED4820-EM-EB2-2HSV48 Diagram-4-2ED4820-EM-EB2-2HSV48

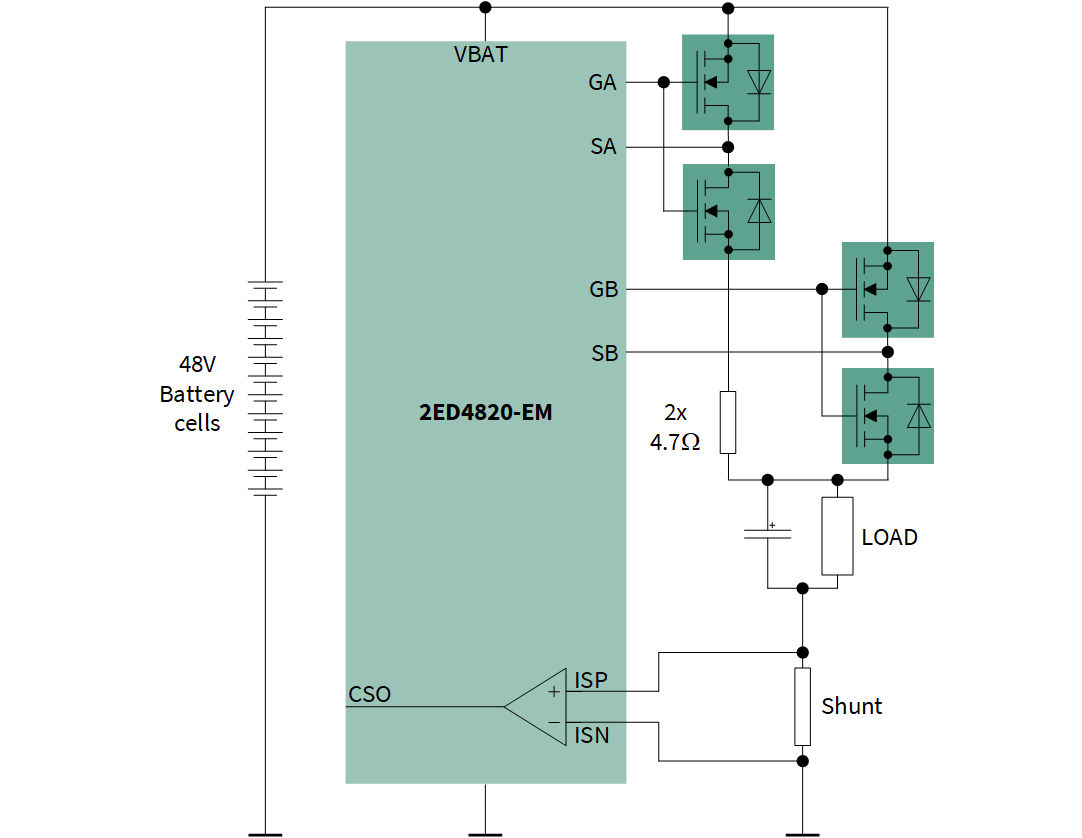

Diagram-3-2ED4820-EM-EB2-2HSV48 Diagram-3-2ED4820-EM-EB2-2HSV48 Diagram-3-2ED4820-EM-EB2-2HSV48

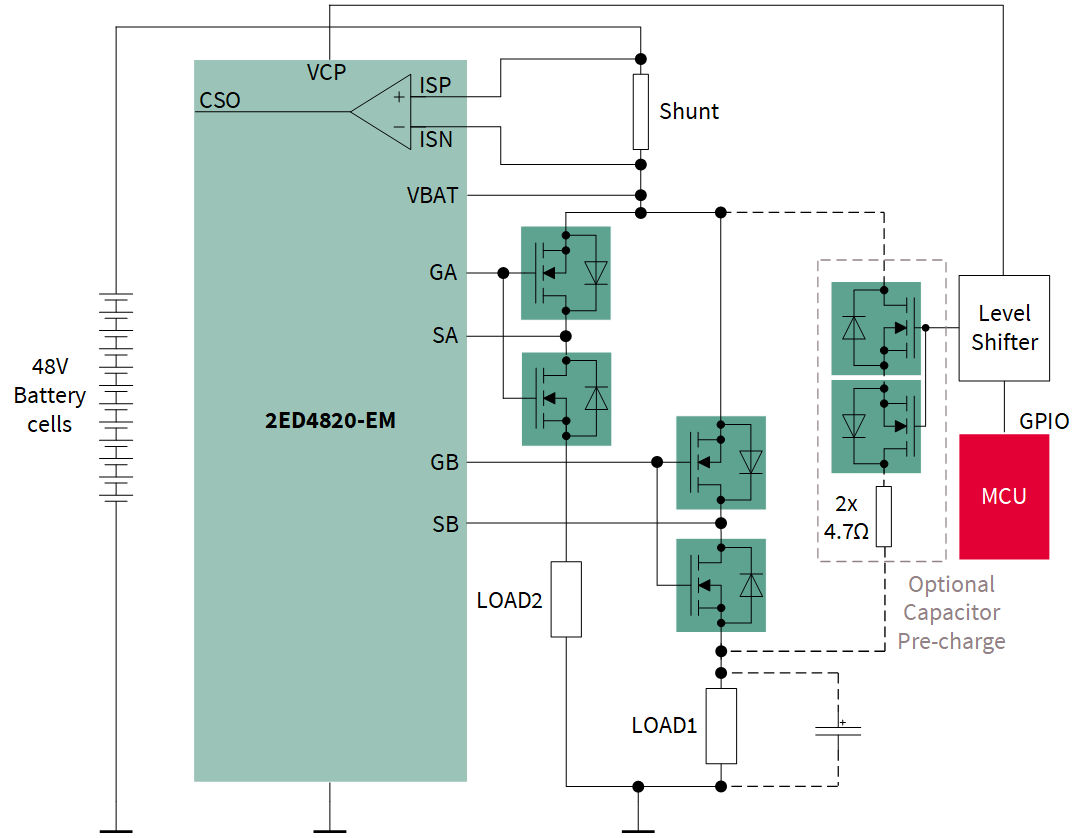

Diagram-6-2ED4820-EM-EB2-2HSV48 Diagram-6-2ED4820-EM-EB2-2HSV48 Diagram-6-2ED4820-EM-EB2-2HSV48

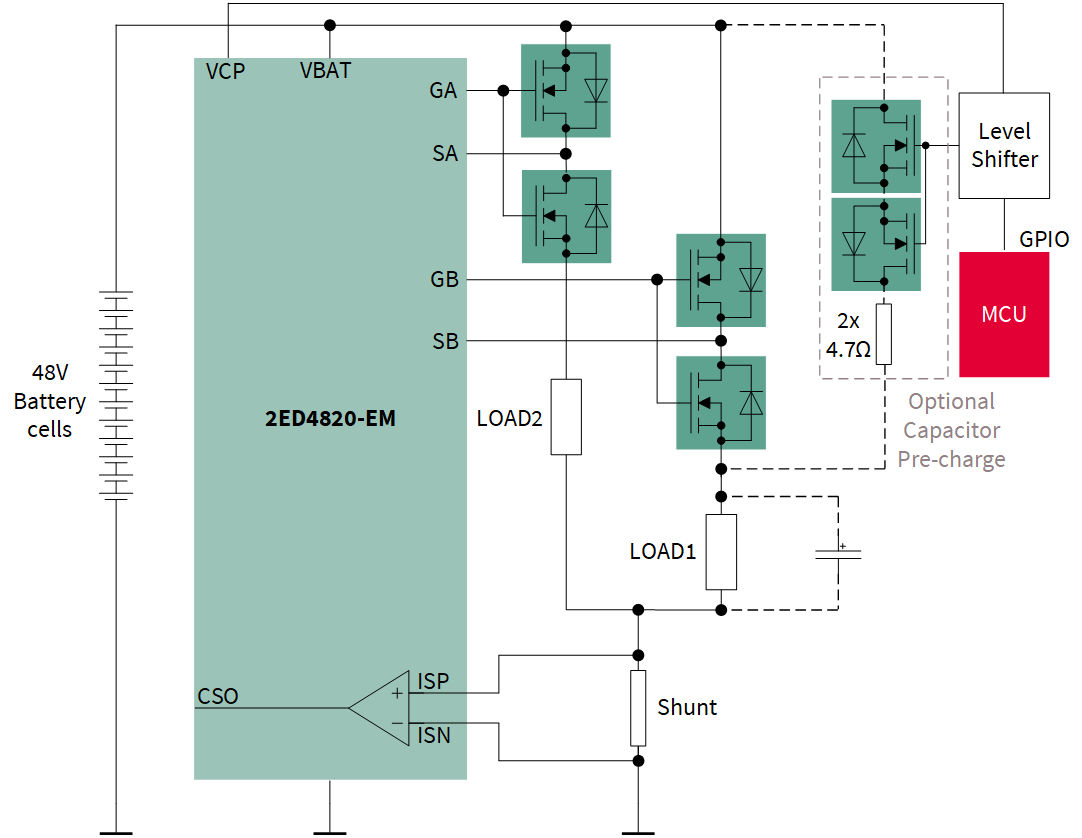

Diagram-5-2ED4820-EM-EB2-2HSV48 Diagram-5-2ED4820-EM-EB2-2HSV48 Diagram-5-2ED4820-EM-EB2-2HSV48

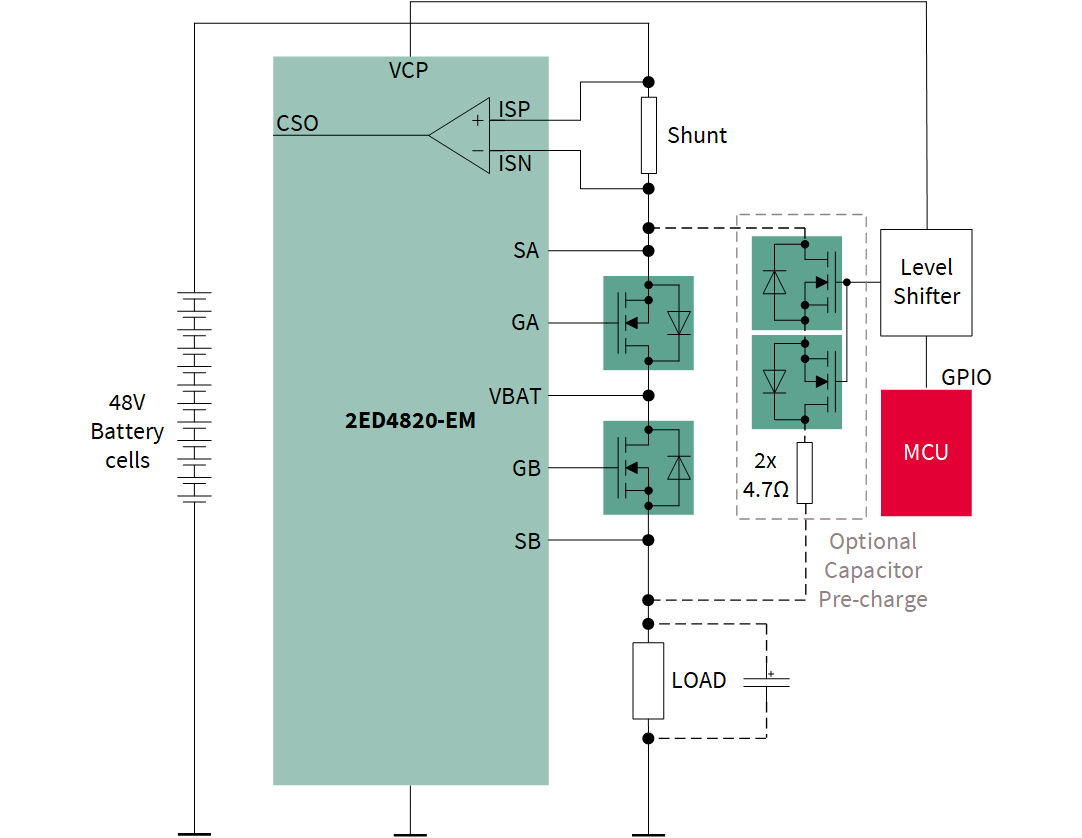

Diagram-2-2ED4820-EM-EB2-2HSV48 Diagram-2-2ED4820-EM-EB2-2HSV48 Diagram-2-2ED4820-EM-EB2-2HSV48

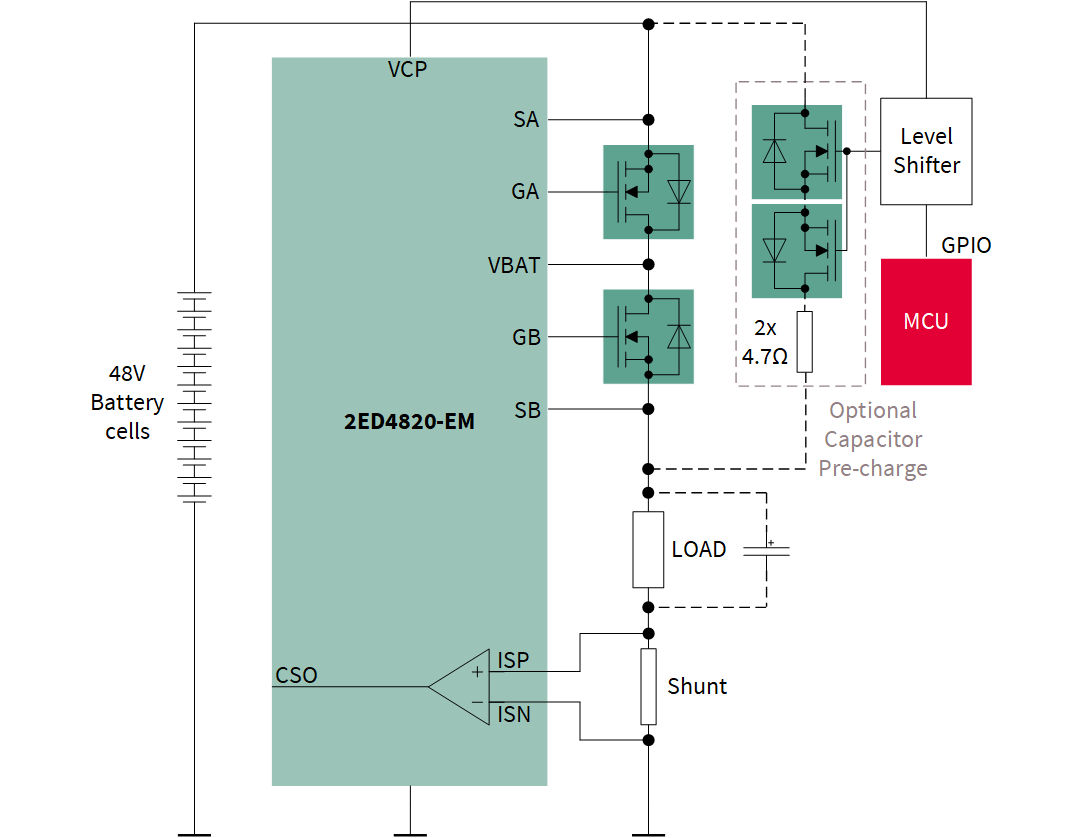

Diagram-1-2ED4820-EM-EB2-2HSV48 Diagram-1-2ED4820-EM-EB2-2HSV48 Diagram-1-2ED4820-EM-EB2-2HSV48
×
