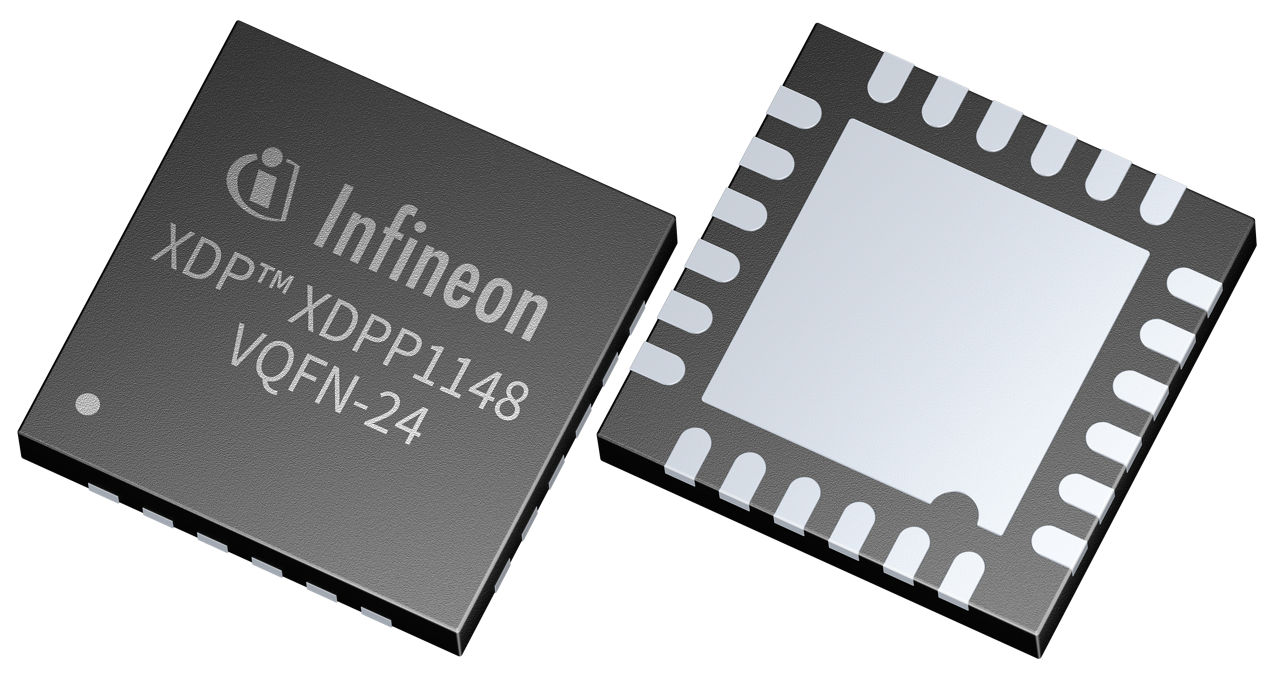

XDPP1148-100B

XDP™ integrated digital controller for DC-DC conversions with PWM and LLC support
Data Sheet
package
board
ea.
in stock

Content could not be loaded

Unfortunately, we were unable to load the content for this section. You may want to refresh the page or try again later.

XDPP1148-100B
XDPP1148-100B
ea.
Data Sheet

Product details

  • Communication Interfaces
    I2C, PMBUS, UART, SPI
  • DPWM Resolution
    78.1 ps
  • GPIO
    11
  • I-ADC
    2
  • Input Voltage range
    3.3 V
  • Memory
    80kB ROM; 32kB RAM; 64kB OTP
  • Package
    PG-VQFN-24
  • PWM Frequency max
    2 MHz
  • PWM Outputs
    6
  • V-ADC
    1
  • Voltage Loops max
    1
Recommended
OPN
XDPP1148100BXUMA1
Product Status active and preferred
Infineon Package
PG-VQFN-24
Package Name N/A
Packing Size 5000
Packing Type TAPE & REEL
Moisture Level 2
Moisture Packing DRY
Lead-free Yes
Halogen Free Yes
RoHS Compliant Yes
Infineon stock last updated:
 ea. in stock

Product Status
Active
Infineon Package
PG-VQFN-24
Package Name -
Packing Size 5000
Packing Type TAPE & REEL
Moisture Level 2
Moisture Packing DRY
Lead Free
Halogen Free
RoHS Compliant
ea.
in stock
The XDPP1148-100B is the latest generation of digital controller product family. It adds close-loop LLC topology support, enhanced feed-forward, non-linear fast transient, light load power management and bi-directional configuration. The high-performance AFE, state-machine-based digital control loop, and Cortex®-M0 processor integrated in the 4x4 mm 24-pin VQFN package enables high power quality, low latency, and flexible power supply designs.

Features

  • Industry's smallest 4x4 mm VQFN package
  • 100 MHz, 32bit Cortex®-M0 processor
  • Feed-forward control
  • PWM and PFM mode support
  • Phase-current balancing
  • 1 V-sense ADC and 2 I-sense ADCs
  • Burst mode, diode-emu & phase shedding
  • Fast transient & non-linear PID response
  • Firmware-based system configuration
  • Active current sharing
  • I2C/PMBus 1.4, UART and SPI interface
  • Low power consumption sleep mode

Benefits

  • Easy product differentiation
  • User-specific customerization
  • Fast time to market
  • Excellent dynamic transient performance
  • Reduced BOM size & low system cost
  • Sophisticated fault handling
  • Housekeeping with configurable GPIOs
