XDP710-002

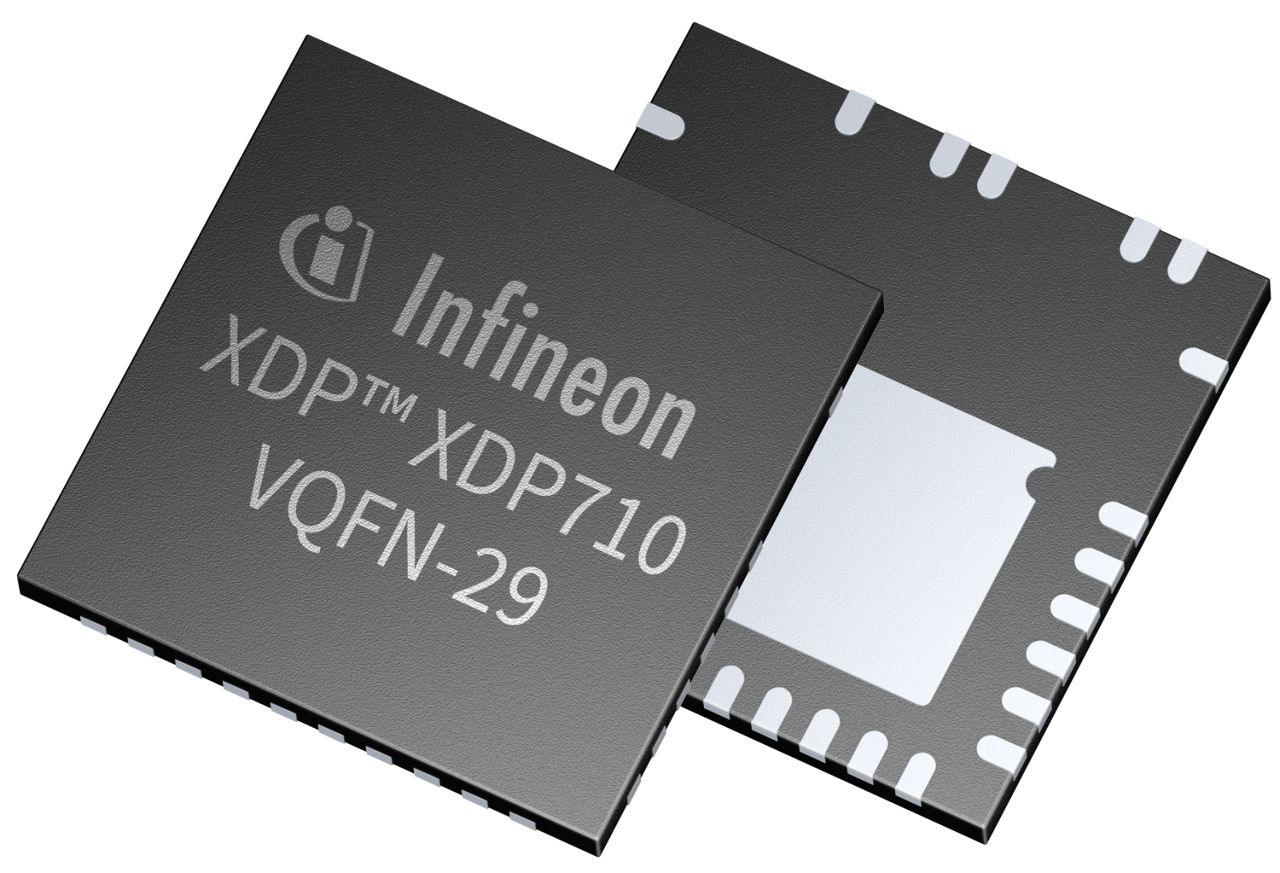

XDP710-002 is Infineon's next generation wide input voltage hot-swap controller with programmable digital SOA control ideal for AI servers
Data Sheet
package
board
ea.
in stock

Content could not be loaded

Unfortunately, we were unable to load the content for this section. You may want to refresh the page or try again later.

XDP710-002
XDP710-002
ea.
Data Sheet

Product details

  • Analog reporting
    -
  • Communication Interfaces
    PMBus 1.3 at 1MHz
  • Current sensing
    High-side
  • Energy reading register size
    24-bit
  • Fault response
    Latch off, Auto retry or digitally configurable
  • Input Voltage fault hysteresis configurability
    UV configurable
  • Input Voltage
    5.5 V to 80 V
  • Inrush current control type
    SOA current control, boost mode with auto boost or full boost
  • Package
    PG-VQFN-29
  • Power averaging ( (128 samples))
    13 ms
  • Product Group
    Hot-swap controller
  • Protection Features
    Input overvoltage, input undervoltage, output undervoltage, overcurrent, short circuit current, over temperature, FET faults, fast input overvoltage, watchdog timer, memory and SOA fault
  • Supported rails
    Positive
  • Surge immunity
    -
  • Telemetry accuracy
    V ≤ 0.4%, E ≤ 2.7%, P ≤ 1.15%, I ≤ 0.75%
Recommended
OPN
XDP710002XUMA1
Product Status active and preferred
Infineon Package
PG-VQFN-29
Package Name N/A
Packing Size 4000
Packing Type TAPE & REEL
Moisture Level 3
Moisture Packing DRY
Lead-free Yes
Halogen Free Yes
RoHS Compliant Yes
Infineon stock last updated:
 ea. in stock

Product Status
Active
Infineon Package
PG-VQFN-29
Package Name -
Packing Size 4000
Packing Type TAPE & REEL
Moisture Level 3
Moisture Packing DRY
Lead Free
Halogen Free
RoHS Compliant
ea.
in stock
XDP710-002 Hot-Swap-Controller able to drive a single or multiple parallel N-channel MOSFETs and is backward compatible to XDP710-001 with improved and enahanced features.
Key resource of XDP710-002 include high-precision AFE, extensive variety of system warnings and protections, high-speed communiction via PMBus to main CPU, reset, shutdown, retry and digital SOA control gate driver and charge pump for a cotrolled turn ON and safe operation.

Features

  • VIN: +5.5 V to +80 V ( 100 V for 500 ms)
  • Dediated 12-Bit V/I ADCs
  • Active monitoring: V ≤ 0.4%, I ≤ 0.75%
  • Active monitoring: P ≤ 1.15%, E ≤ 2.7%
  • Integrated gate drive: 0 to 250 uA
  • Two-step gate shutdown: ~1.5 A (max)
  • Programmable and pre-set FET active SOA
  • Telemetry with I2C and PMBus at 1MHz
  • Programmable input/output UVLO, OVP, OTP
  • Multi-Response: Ilim, SOA control, etc.
  • OTP multi-configuration
  • Dynamic config. of faults & warnings
  • Boost mode on 1ms or 100µs SOA line

Benefits

  • Complete system protection & management
  • Drives single or multiple N-ch. FETs
  • Accurate Real-time system measurement
  • On-the-fly flexibility & programmability
  • AFE allows 0.75% telemetry accuracy
  • Fast shut down of <1usec
  • Digital configuration reduces BOM cost
  • Analog-assisted digital mode option
  • OTP allows Multi-SOA config. profiles
  • Input transient & MOSFET SOA protection
  • Supports external temperature sensor

Applications
