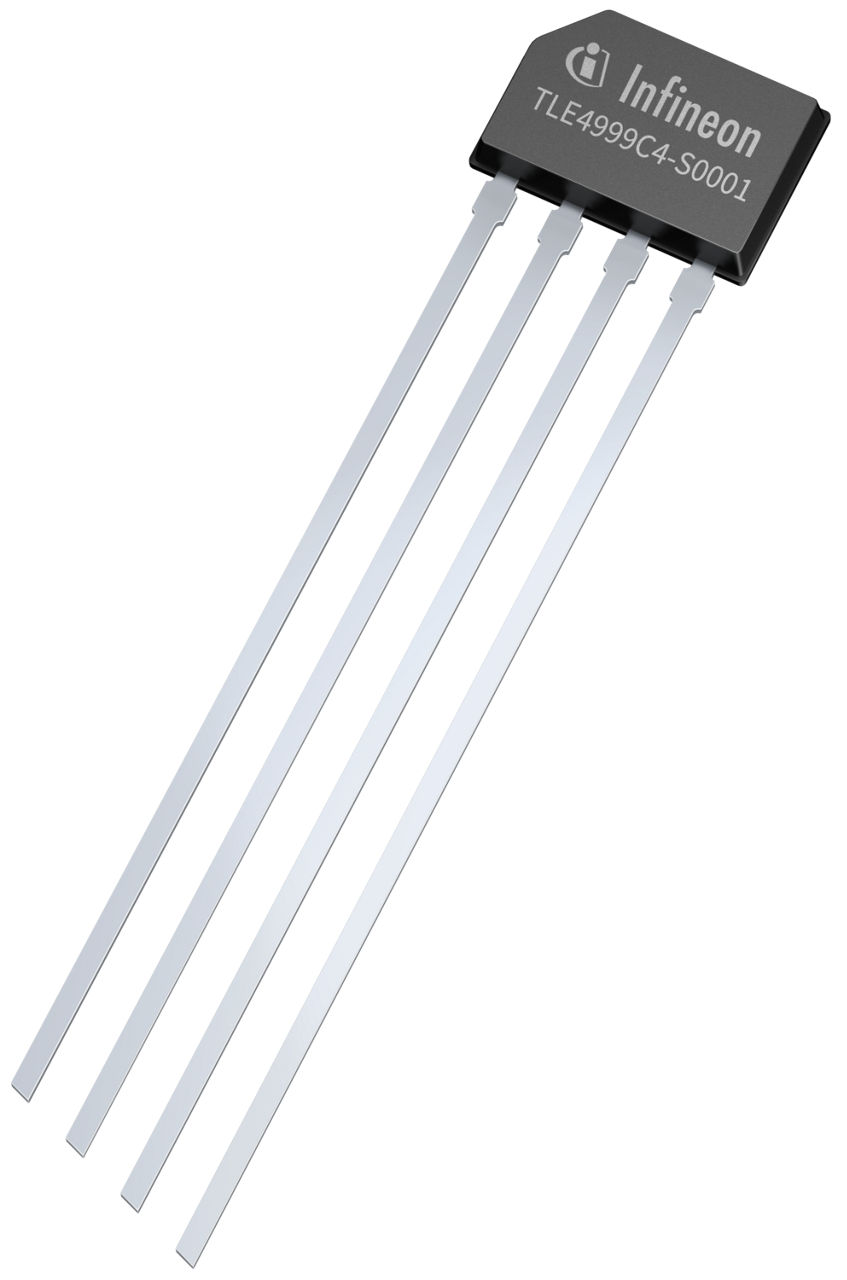

TLE4999C4-S0001

XENSIV™ - TLE4999C4-S0001 programmable dual channel linear Hall sensor with fast SPC interface for safety applications
Data Sheet
package
ea.
in stock

Content could not be loaded

Unfortunately, we were unable to load the content for this section. You may want to refresh the page or try again later.

TLE4999C4-S0001
TLE4999C4-S0001
ea.
Data Sheet

Product details

  • Applications
    Linear Hall
  • Classification
    ISO 26262-compliant
  • Family
    Linear Hall IC
  • Interfaces
    SPC
  • Package
    Leaded
  • Currently planned availability until at least
    2038
  • Programmable
    yes
Recommended
OPN
TLE4999C4S0001HALA1
Product Status active and preferred
Infineon Package
PG-SSO-4
Package Name N/A
Packing Size 2000
Packing Type AMMO-PACK
Moisture Level NA
Moisture Packing NON DRY
Lead-free Yes
Halogen Free No
RoHS Compliant Yes
Infineon stock last updated:
 ea. in stock

Product Status
Active
Infineon Package
PG-SSO-4
Package Name -
Packing Size 2000
Packing Type AMMO-PACK
Moisture Level NA
Moisture Packing NON DRY
Lead Free
Halogen Free
RoHS Compliant
ea.
in stock
The Infineon TLE4999C4-S0001 is a dual-channel linear Hall sensor with a bus-capable digital Short-PWM-Code interface, meeting ISO 26262 safety standards. It provides high redundancy with two sensor elements in one silicon design. Developed according to ISO 26262 (2011), supporting safety up to ASIL C, it has a magnetic sensitivity drift of 2.5%, noise main channel 1 LSB12, and sub-channel 4 LSB12.

Features

  • Hall measurement channels (main and sub)
  • Developed compliant to ISO 26262
  • Diagnostic coverage via signal checks
  • Digital SPC interface with min.0.5µs
  • Bus supports 4 sensor ICs on single line
  • Selectable 12/14/16bit output signals
  • Operating automotive temp -40°C to 150°C
  • Digital temperature&stress compensation
  • Voltage protection for VDD, GND&OUT pins
  • Independently programmable in EEPROM
  • Multipoint calibration up to 9 points
  • Frameholder mechanism
