TLD2311EL

LITIX™ Basic TLD2311EL is a three channel high side driver IC with integrated output stages
Data Sheet
package
board
ea.
in stock

Content could not be loaded

Unfortunately, we were unable to load the content for this section. You may want to refresh the page or try again later.

TLD2311EL
TLD2311EL
ea.
Data Sheet

Product details

  • Control Inputs
    3
  • Family
    LITIX™ Basic
  • Feedback Output
    No
  • Inhibit
    Yes
  • Iq
    0.1 µA
  • Language
    SPICE
  • Open Load Detection
    Yes
  • Operating Temperature
    -40 °C to 150 °C
  • Output Channels
    3
  • Output Current
    60 mA
  • Currently planned availability until at least
    2038
  • Product Category
    Automotive Lighting ICs
  • PWM engine
    No
  • PWM
    Yes
  • Short Circuit Protection
    Yes
  • Short GND Detection
    Yes
  • Tolerance
    7%
  • Topology
    Linear
  • VQ (multiple)
    40.0 V
  • VS
    5.5 V to 40 V
Recommended
OPN
TLD2311ELXUMA1
Product Status active and preferred
Infineon Package
PG-SSOP-14
Package Name N/A
Packing Size 2500
Packing Type TAPE & REEL
Moisture Level 3
Moisture Packing DRY
Lead-free Yes
Halogen Free Yes
RoHS Compliant Yes
Infineon stock last updated:
 ea. in stock

Product Status
Active
Infineon Package
PG-SSOP-14
Package Name -
Packing Size 2500
Packing Type TAPE & REEL
Moisture Level 3
Moisture Packing DRY
Lead Free
Halogen Free
RoHS Compliant
ea.
in stock
The TLD2311EL is designed to control LEDs with a current up to 120 mA. In typical automotive applications the device is capable to drive i.e. 3 red LEDs per chain (total 9 LEDs) with a current up to 60mA, which is limited by thermal cooling aspects. The output current is controlled practically independent of load and supply voltage changes.

Features

  • Integrated O/P,optimized to drive LEDs
  • Output current up to 120mA per channel
  • Low current consumption in sleep mode
  • PWM-operation supported via VS- &EN-pin
  • Output current adjustable
  • Reverse polarity protection
  • Undervoltage detection
  • Open load&short circuit to GND diagnosis
  • Wide temperature range:-40 °C<150 °C
  • PG-SSOP14 package with exposed heatslug
  • Green Product (RoHS compliant)

Diagrams

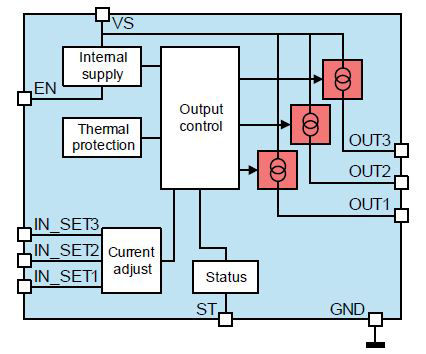

Block_Diagram_TLD2311EL
Block_Diagram_TLD2311EL
Block_Diagram_TLD2311EL Block_Diagram_TLD2311EL Block_Diagram_TLD2311EL
×
