Active and preferred
RoHS Compliant

IGT65R140D2

CoolGaN™ Transistor 650 V G5
Data Sheet
package

Content could not be loaded

Unfortunately, we were unable to load the content for this section. You may want to refresh the page or try again later.

IGT65R140D2
IGT65R140D2
Data Sheet

Product details

  • Generation
    G5
  • ID (@25°C) max
    13 A
  • IDpuls (@25°C) max
    23 A
  • Mounting
    SMT
  • QG
    1.8 nC
  • Qualification
    Industrial
  • RDS (on) (typ)
    140 mΩ
  • RDS (on) max
    170 mΩ
  • VDS max
    650 V
Recommended
OPN
IGT65R140D2ATMA1
Product Status active and preferred

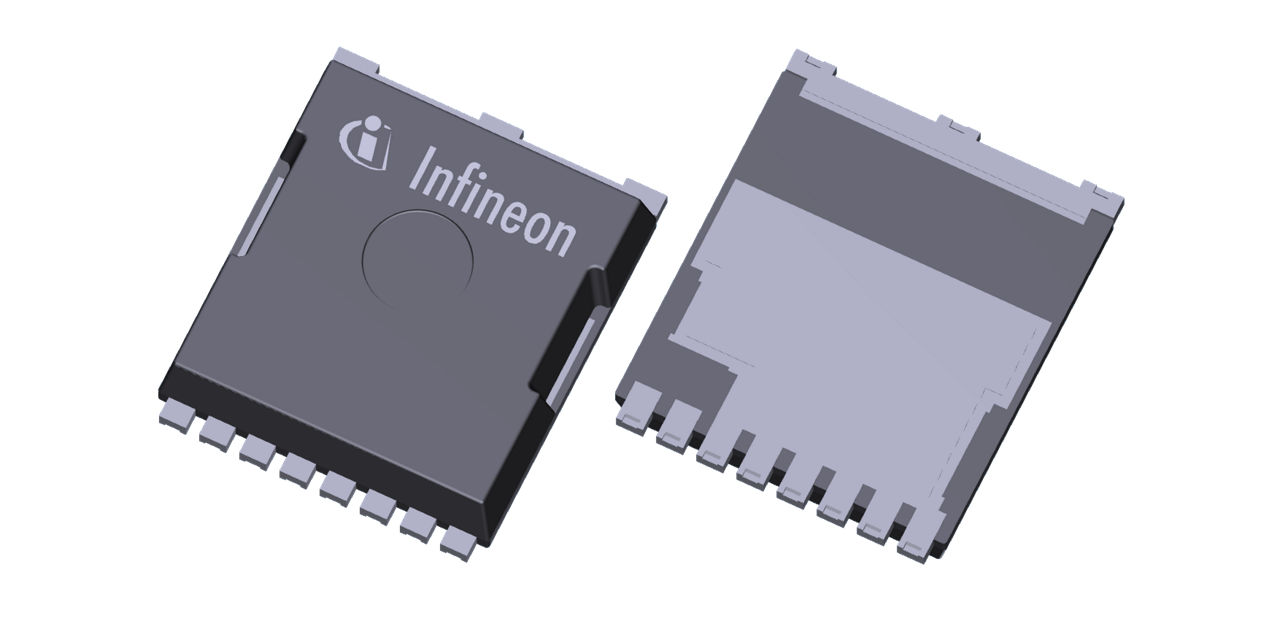

Infineon Package
PG-HSOF-8
Package Name N/A
Packing Size 2000
Packing Type TAPE & REEL
Moisture Level 1
Moisture Packing NON DRY
Lead-free No
Halogen Free Yes
RoHS Compliant Yes
Infineon stock last updated:

Product Status
Active
Infineon Package
PG-HSOF-8
Package Name -
Packing Size 2000
Packing Type TAPE & REEL
Moisture Level 1
Moisture Packing NON DRY
Lead Free
Halogen Free
RoHS Compliant
The IGT65R140D2 GaN power transistor allows for increased efficiency at high-frequency operation. As part of the CoolGaN™ 650 V G5 family, it meets the highest quality standards, enabling highly reliable designs with superior efficiency. Housed in a bottom-side cooled TOLL package, it is designed for optimal power dissipation in various consumer and industrial applications.

Features

  • 650 V e-mode power transistor
  • Ultrafast switching
  • No reverse-recovery charge
  • Capable of reverse conduction
  • Low gate charge, low output charge
  • Superior commutation ruggedness
  • Low dynamic RDS(on)
  • High ESD robustness: 2 kV HBM - 1 kV CDM
  • Bottom-side cooled package
  • JEDEC qualified (JESD47, JESD22)

Benefits

  • Supports high operating frequency
  • Enables highest system efficiency
  • Enables ultrahigh power density designs
  • Supports BOM cost savings
