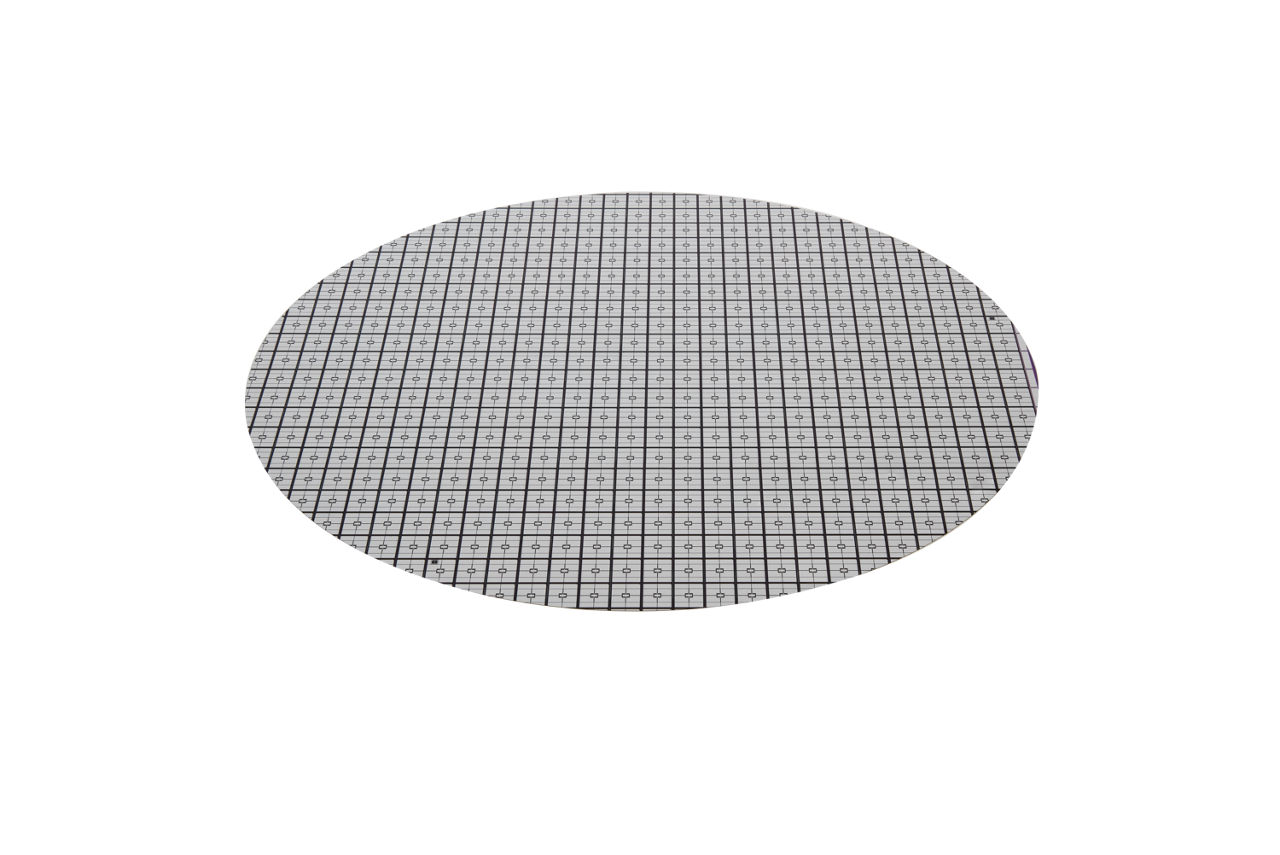

IGC100T75H12RDYA

Unleashing the Power of Infineon's Cutting-Edge Si IGBT Technology
Data Sheet

Content could not be loaded

Unfortunately, we were unable to load the content for this section. You may want to refresh the page or try again later.

IGC100T75H12RDYA
IGC100T75H12RDYA
Data Sheet

Product details

  • ICn
    320 A
  • Tvj [°C]
    -40 to 185
  • VCE(sat) (Tvj=185°C @15V/200A)
    1.2 V
  • VCE(sat) (Tvj=25°C @15V/320A)
    1.29 V
  • VCE(sat) (Tvj=25°C @15V/200A)
    1.15 V
  • VCE
    750 V
Recommended
OPN
IGC100T75H12RDYAX7SA1
Product Status active and preferred
Infineon Package --
Package Name N/A
Packing Size 1
Packing Type HORIZONTAL FRAME SHIPPER
Moisture Level N/A
Moisture Packing DRY
Lead-free Yes
Halogen Free Yes
RoHS Compliant Yes
Infineon stock last updated:

Product Status
Active
Infineon Package --
Package Name -
Packing Size 1
Packing Type HORIZONTAL FRAME SHIPPER
Moisture Level -
Moisture Packing DRY
Lead Free
Halogen Free
RoHS Compliant
Our latest EDT3 devices offer voltage classes of 750 V and 1200 V, delivering unprecedented output current for main inverter applications in low-cost and high-performance vehicles. With the ability to design and manufacture custom power modules tailored to specific application requirements, our Si IGBT & Diode solutions are set to transform the automotive landscape, elevating performance, efficiency, and reliability to new heights.

Features

  • Best-in-class current density
  • Suitable for 470 V VDC systems
  • Maximum junction temperature of 185 °C
  • High switching speed
  • Very low VCEsat
  • Very low switching losses
  • Short tail current
  • Very tight parameter distribution
  • Short circuit robustness tsc = 3 µs
  • Double side solderable and sinterable
  • Product validation acc. to AEC-Q101

Benefits

  • Ideal for automotive requirements
  • Available in 750V and 1200V class
  • Customized development (on demand)
  • Up to 25% higher output current density
  • Decreased losses and increased max. Tvj
  • Cost benefit due to module shrink
  • Low costs per Ampere on system level
  • Less parallelization effort and costs
  • High reliability and quality
  • Drop-in replacement
  • Simple gate drive design
