ICE2QR1065Z
ICE2QR1065Z
Data Sheet

Product details

  • ESD Protection max
    2 kV
  • Family
    CoolSET™
  • Frequency Range
    Variable
  • Green Product
    Yes
  • ICC
    1.5 mA
  • Mounting
    THT
  • Operating Temperature
    -25 °C to 130 °C

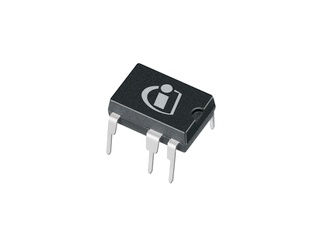

  • Package
    PG-DIP-7
  • Pout max
    34 W
  • RDS (on) max
    1.05 Ω
  • Sub Application
    Offline SMPS
  • Switching Frequency
    Variable
  • Target Application
    Power Supplies
  • Technology
    Gen2
  • tf
    30 ns
  • Topology
    Flyback
  • tr
    30 ns
  • Type
    PWM controller with integrated MOSFET
  • VCC
    10.5 V to 24 V
  • VDS max
    650 V
OPN
Product Status
Infineon Package
Package Name
Packing Size
Packing Type
Moisture Level
Moisture Packing
Lead-free
Halogen Free
RoHS Compliant
Infineon stock last updated:
Integrated power management IC with 650V avalanche rugged CoolMOS™, startup cell and QR current mode flyback PWM controller in DIP-7 package.  Capable for 35W SMPS design. The quasi QR CoolSET™ series continues to deliver design agility and miniaturization. Upon the successful F3 CoolSET™, this new series offer the possibility of higher efficiency and better EMI performance. The digital frequency reduction feature score a very stable operation with decreasing load change, and the fold-back correction keep the maximum power limits within tolerance desired by SMPS designers. The active burst mode operation during low power consumption, remains market leaders in providing best-in-class power consumption during standby.

Features

  •  Integrated power IC with 650V avalanche rugged CoolMOS™, startup cell and QR flyback PWM controller
  •  digital frequency reduction with decreasing load,
  •  cycle-by-cycle current limitation with fold-back correction
  •  built-in digital soft-start
  •  active burst mode for lowest standby power <50mW
  •  latch-off mode for short-winding and output voltage
  •  enhanced integrated protection functions, modulated gate drive, etc.

Benefits

  •  Higher efficiency
  •  low EMI noise
  •  low standby power, etc.

Applications
