BSC010N04LS
BSC010N04LS
ea.
Data Sheet

Product details

  • Budgetary Price €/1k
    0.59
  • Ciss
    6800 pF
  • Coss
    1900 pF
  • ID (@25°C) max
    281 A
  • IDpuls max
    1124 A
  • Operating Temperature
    -55 °C to 175 °C

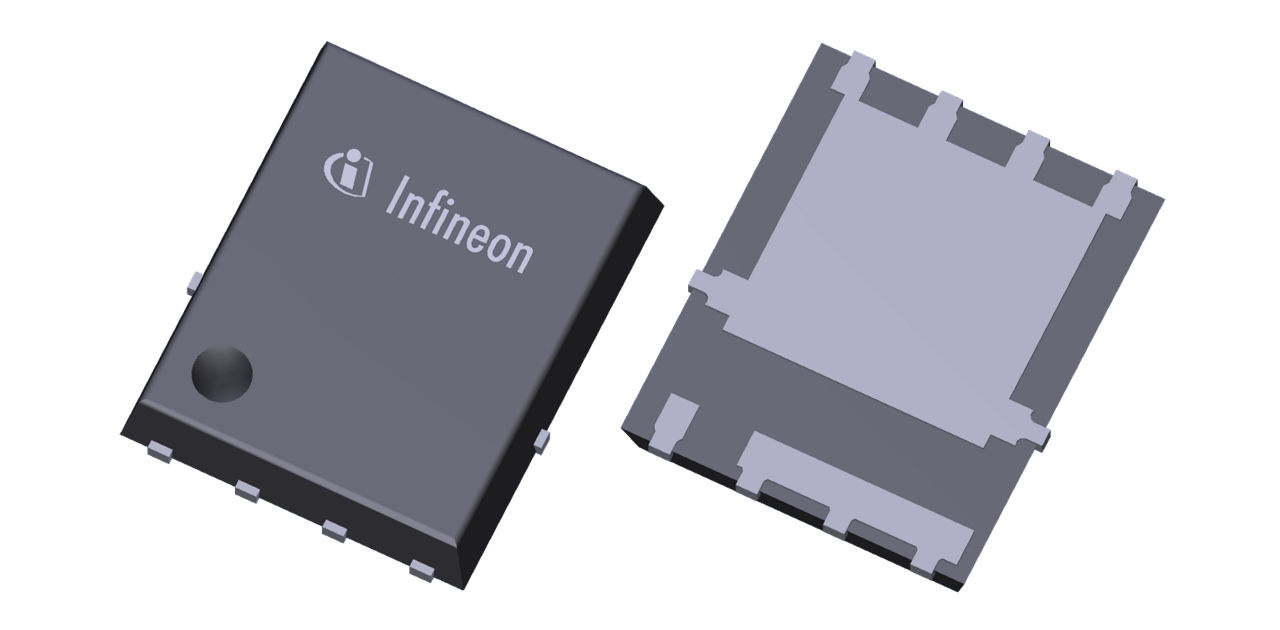

  • Package
    SuperSO8 5x6
  • Polarity
    N
  • Ptot max
    139 W
  • QG (typ @4.5V)
    49 nC
  • RDS (on) (@10V) max
    1 mΩ
  • RDS (on) (@4.5V) max
    1.3 mΩ
  • RDS (on) (@4.5V LL) max
    1.3 mΩ
  • Rth
    0.9 K/W
  • Special Features
    Fused leads
  • VDS max
    40 V
  • VGS(th)
    1.48 V
Recommended
OPN
BSC010N04LSATMA1
Product Status active
Infineon Package
PG-TDSON-8
Package Name SuperSO8 FL
Packing Size 5000
Packing Type TAPE & REEL
Moisture Level 1
Moisture Packing NON DRY
Lead-free No
Halogen Free Yes
RoHS Compliant Yes
Infineon stock last updated:
 ea. in stock

Product Status
Active
Infineon Package
PG-TDSON-8
Package Name SuperSO8 FL
Packing Size 5000
Packing Type TAPE & REEL
Moisture Level 1
Moisture Packing NON DRY
Lead Free
Halogen Free
RoHS Compliant
ea.
in stock
Infineon's 40V and 60V MOSFET product families feature not only the industry’s lowest RDS(on) but also a perfect switching behavior for fast switching applications. 15% lower RDS(on) and 31% lower figure of merit (RDS(on) x Qg) compared to alternative devices has been realized by advanced thin wafer technology.

Features

  • Optimized for synchronous rectification
  • 15% lower RDSon than others
  • 31% better FOM over similar devices
  • RoHS compliant - halogen free
  • MSL1 rated

Benefits

  • Highest system efficiency
  • Less paralleling required
  • Increased power density
  • System cost reduction
Very low voltage overshoot
