REF_62W_FLY_1700V_SIC

62.5W auxiliary power supply for three-phase power converter
Application Notes
ea.
in stock

Content could not be loaded

Unfortunately, we were unable to load the content for this section. You may want to refresh the page or try again later.

REF_62W_FLY_1700V_SIC
REF_62W_FLY_1700V_SIC
ea.
Application Notes

Product details

  • Applications
    Industrial UPS, Industrial SMPS, EV charger, Motor drives, Solar inverter
  • Board Type
    Reference Board
  • Family
    CoolSiC™ MOSFET
  • Frequency
    80 kHz
  • Input Type
    DC
  • Output Current (Sink)
    2 A
  • Pout
    62.5 W
  • Product Name
    REF_62W_FLY_1700V_SIC
  • Qualification
    Industrial
  • Target Application
    EV Charger, Industrial SMPS, Industrial UPS, Motor Control & Drives, Solar String Inverter
  • Topology
    Single-ended Flyback
Recommended
OPN
REF62WFLY1700VSICTOBO1
Product Status active
Infineon Package --
Package Name N/A
Packing Size 1
Packing Type BLISTER TRAY
Moisture Level N/A
Moisture Packing NON DRY
Lead-free No
Halogen Free No
RoHS Compliant Yes
Infineon stock last updated:
 ea. in stock

Product Status
Active
Infineon Package --
Package Name -
Packing Size 1
Packing Type BLISTER TRAY
Moisture Level -
Moisture Packing NON DRY
Lead Free
Halogen Free
RoHS Compliant
ea.
in stock

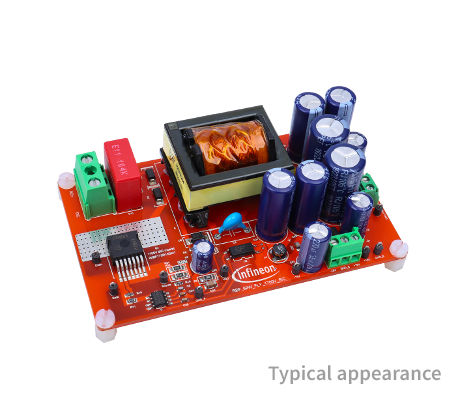

The reference board was developed to support customers designing auxiliary power supplies for three-phase converters using the 1700 V CoolSiC™ MOSFET in a single-ended flyback topology. The board has three outputs of +15 V, -15 V and +24 V with up to 62.5 W output power working in a wide input voltage range from 200 VDC to 1000 VDC. The reference board works in quasi-resonant mode and has a peak efficiency of 90.56% at a full load specification.

Features

  • Quasi-Resonant Mode Operation
  • 1700 V CoolSiC™ MOSFET
  • Current limit protection
  • Over temperature protection
  • Overload/open loop protection
