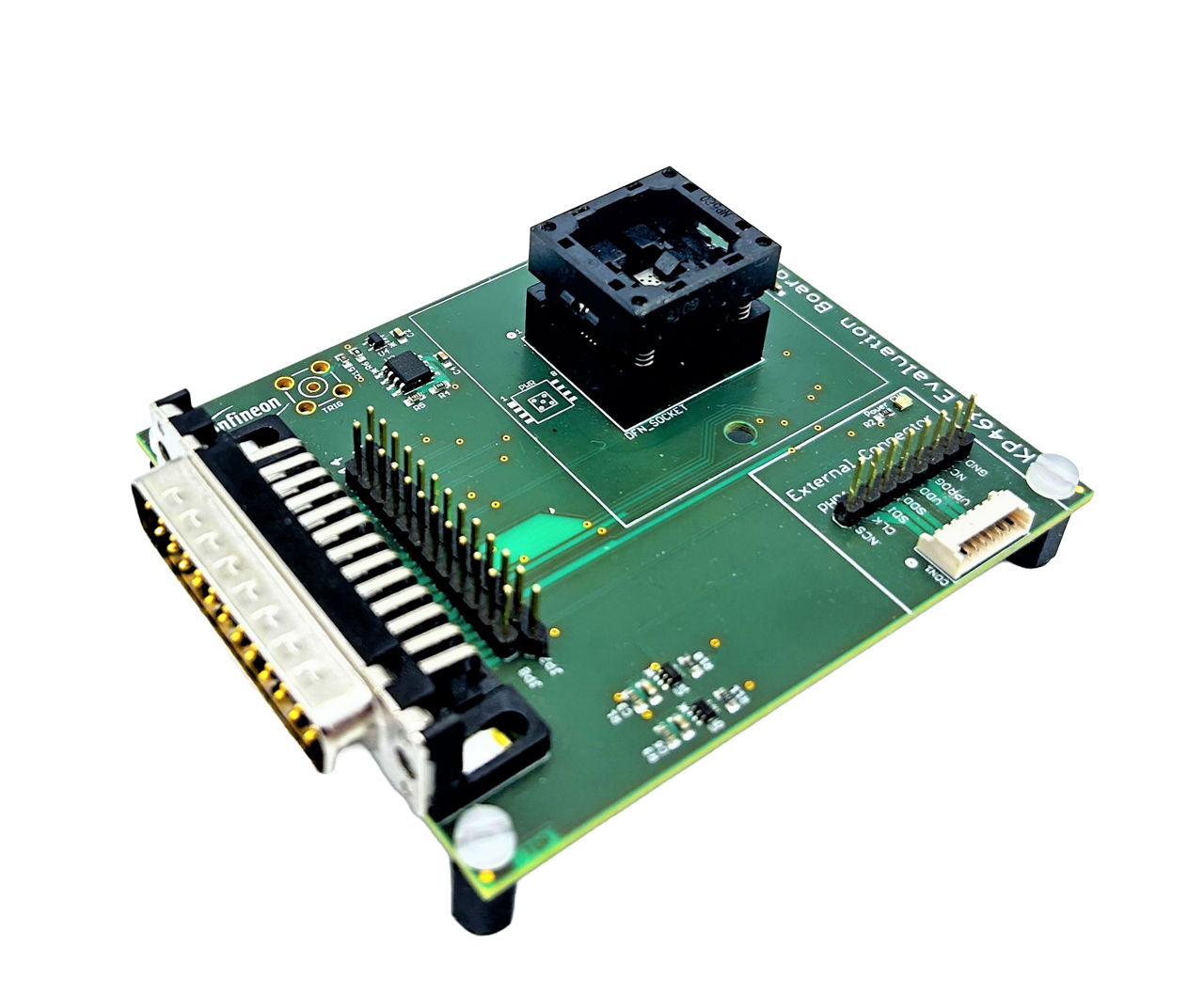

KP46X EVAL BOARD

XENSIV™ - KP46X EVAL BOARD is an evaluation board designed to provide an extended evaluation environment for KP46x pressure sensors
User Manual
board

Content could not be loaded

Unfortunately, we were unable to load the content for this section. You may want to refresh the page or try again later.

KP46X EVAL BOARD
KP46X EVAL BOARD
User Manual

Product details

  • Applications
    Automotive barometric air pressure sensor (BAP), Automotive manifold air flow sensor (MAF), Automotive battery monitoring system (BMS), Automotive seat comfort system , Industrial control, Weather stations, altimeters
  • Classification
    AEC-Q103-002
  • Device
    KP466, KP467, KP464
  • Family
    Absolute Pressure Sensors (MAP & BAP)
Recommended
OPN
KP46XEVALBOARDTOBO1
Product Status active and preferred
Infineon Package --
Package Name N/A
Packing Size 1
Packing Type CONTAINER
Moisture Level N/A
Moisture Packing NON DRY
Lead-free No
Halogen Free No
RoHS Compliant No
Infineon stock last updated:

Product Status
Active
Infineon Package --
Package Name -
Packing Size 1
Packing Type CONTAINER
Moisture Level -
Moisture Packing NON DRY
Lead Free
Halogen Free
RoHS Compliant
The KP46X EVAL BOARD shall be interfaced with the PGSISI-3 Interface Box which needs to be ordered separatelly. The compatible software provided is designed to visualize data acquired from the KP46x pressure sensors, and implements advanced features like EEPROM programming, diagnostics, test-mode operation. This evaluation board is compatible with the KP46X SATELLITE BOARD, which can be attached for evaluating remote connected sensors.

Features

  • Use  with PGSISI-3 Interface Box.
  • Compatible with all KP46x products
  • Evaluation software provided  @IDC
  • Allows EEPROM programming

Benefits

  • Easy-to-use software provided
  • Pre-calibrated sensor
  • Onboard DFN-8 connection socket

Applications
