KIT_XMC_PLT2GO_XMC4400

XMC4400 Platform2Go
User Manual

Content could not be loaded

Unfortunately, we were unable to load the content for this section. You may want to refresh the page or try again later.

KIT_XMC_PLT2GO_XMC4400
KIT_XMC_PLT2GO_XMC4400
User Manual

Product details

  • Applications
    Motor Control, Solar Inverters, Switched Mode Power Supplies (SMPS) , General Purpose
  • Bluetooth Standard
    N/A
  • Board Type
    Evaluation Kit
  • CapSense
    No
  • Core
    ARM Cortex-M4
  • External memory
    32-Mbit Serial Flash
  • Family
    XMC4400 Industrial Microcontroller
  • Features
    Ethernet PHY, RJ45 jack
  • GPIOs/Shield Compatibility
    Arduino Uno, mikroBUS, Shield2Go
  • Input Type
    DC
  • Product Name
    XMC4400 Platform2Go
  • Programmer/Debugger
    Onboard XMC4200 Debug IC
  • Qualification
    Industrial
  • Sensors
    None
  • Software Support
    ModusToolbox
  • Target Application
    Industrial
  • WiFi Standard
    N/A
Recommended
OPN
KITXMCPLT2GOXMC4400TOBO1
Product Status active and preferred
Infineon Package N/A
Package Name N/A
Packing Size 1
Packing Type CONTAINER
Moisture Level NA
Moisture Packing NON DRY
Lead-free No
Halogen Free No
RoHS Compliant Yes
Infineon stock last updated:

Product Status
Active
Infineon Package N/A
Package Name -
Packing Size 1
Packing Type CONTAINER
Moisture Level NA
Moisture Packing NON DRY
Lead Free
Halogen Free
RoHS Compliant

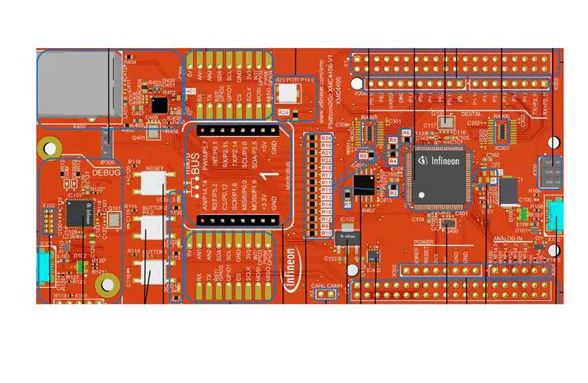

The Platform2GO XTREME XMC4400 kit, equipped with an XMC4400 device and debugger, supports ETHERNET, CAN, ARDUINO, MikroBUS, and Shields2Go. Designed to evaluate Infineon’s XMC4400 Microcontroller, it is compatible with various development tools, including Infineon’s free DAVE IDE. ModusToolbox™ software offers board support and validated code examples.

Features

  • XMC™4400 (ARM® Cortex™-M4)
  • ARDUINO Uno compatibility
  • Shields2Go connectivity
  • Ethernet-enabled communication option
  • Additional voltage level shifters
  • Versions: 3.3V Shields (Lite), 5V (Lite)
  • CAN connectivity

Benefits

  • Highest integration on Microcontrollers
  • Easy to design products
  • Highest efficiency
  • Reduced system cost
  • Full integration with ModusToolbox™ IDE
