Active and preferred

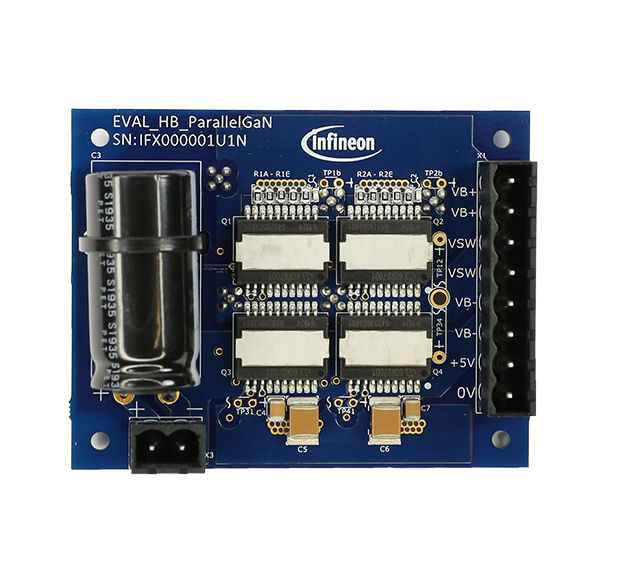

EVAL_HB_PARALLELGAN

Evaluate paralleling of CoolGaN™ 600 V HEMTs in half-bridge configurations for higher power applications.
Application Notes
board

Content could not be loaded

Unfortunately, we were unable to load the content for this section. You may want to refresh the page or try again later.

EVAL_HB_PARALLELGAN
EVAL_HB_PARALLELGAN
Application Notes

Product details

  • Board Type
    Evaluation Board
  • Dimensions
    78mm×60mm×28mm
  • Family
    CoolGaN™
  • Input Type
    DC, AC
  • Output Current max
    24 A
  • Output Voltage max
    450 V
  • Product Name
    EVAL_HB_ParallelGaN
  • Qualification
    Standard
  • Supply Voltage max
    450 V
  • Target Application
    Charger, EV Charger, Drives, Energy Storage, Industrial Drives, Motor Control & Drives, Power
  • Topology
    Boost, BCM, Buck, Phase Shift Full Bridge, PFC Interleave, PFC, LLC, Half Bridge, Full Bridge, Chopper
Recommended
OPN
EVALHBPARALLELGANTOBO1
Product Status active and preferred
Infineon Package N/A
Package Name N/A
Packing Size 1
Packing Type CONTAINER
Moisture Level NA
Moisture Packing NON DRY
Lead-free No
Halogen Free No
RoHS Compliant No
Infineon stock last updated:

Product Status
Active
Infineon Package N/A
Package Name -
Packing Size 1
Packing Type CONTAINER
Moisture Level NA
Moisture Packing NON DRY
Lead Free
Halogen Free
RoHS Compliant
The EVAL_HB_ParallelGaN is a test platform for investigating parallel operation of Infineon CoolGaN™ for higher power levels. It allows dynamic and static current sharing examination up to MHz levels and serves as a reference for PCB layout practices. The board is available as a Hardware Board or Reference Design and includes features such as isolated control and gate common-mode inductors.

Features

  • Evaluate GaN paralleling benefits and issues in half-bridge environment
  • Configurable for buck, boost or pulsed operation for hard- or soft-switching
  • Static and dynamic current sharing can be monitored through separate shunt resistors
  • Adjustable dead time

Benefits

  • Doubling the current carrying capacity by effectively halving the RDS(on)
  • Single driver can drive two parallel GaN devices

Applications
