EVAL-1ED3890MX12M
Active and preferred

EVAL-1ED3890MX12M

Evaluation board for EiceDRIVER™ X3 single-channel highly flexible isolated gate driver family
User manual
ea.
in stock

Content could not be loaded

Unfortunately, we were unable to load the content for this section. You may want to refresh the page or try again later.

EVAL-1ED3890MX12M
EVAL-1ED3890MX12M
ea.
User manual


Product details

  • Board Type
    Evaluation Board
  • Family
    Gate Driver, CoolSiC™ MOSFET
  • Go-wider-Board
    Yes
  • Input Type
    DC
  • Motor Power max
    100 W
  • Product Name
    EVAL-1ED3890MX12M
  • Qualification
    Industrial
  • Target Application
    Drives, UPS, EV Charger, Motor Control & Drives
  • Topology
    Half Bridge

Recommended
OPN
EVAL1ED3890MX12MTOBO1
Product Status active and preferred
Infineon Package N/A
Package Name N/A
Packing Size 1
Packing Type CONTAINER
Moisture Level NA
Moisture Packing NON DRY
Lead-free No
Halogen Free No
RoHS Compliant No
Country of Assembly (CoA)
CN
Country of Diffusion (CoD)
CN
Infineon stock last updated:
 ea. in stock

Product Status
Active
Infineon Package N/A
Package Name -
Packing Size 1
Packing Type CONTAINER
Moisture Level NA
Moisture Packing NON DRY
Lead Free
Halogen Free
RoHS Compliant
Country of Assembly (CoA)
CN
Country of Diffusion (CoD)
CN
ea.
in stock

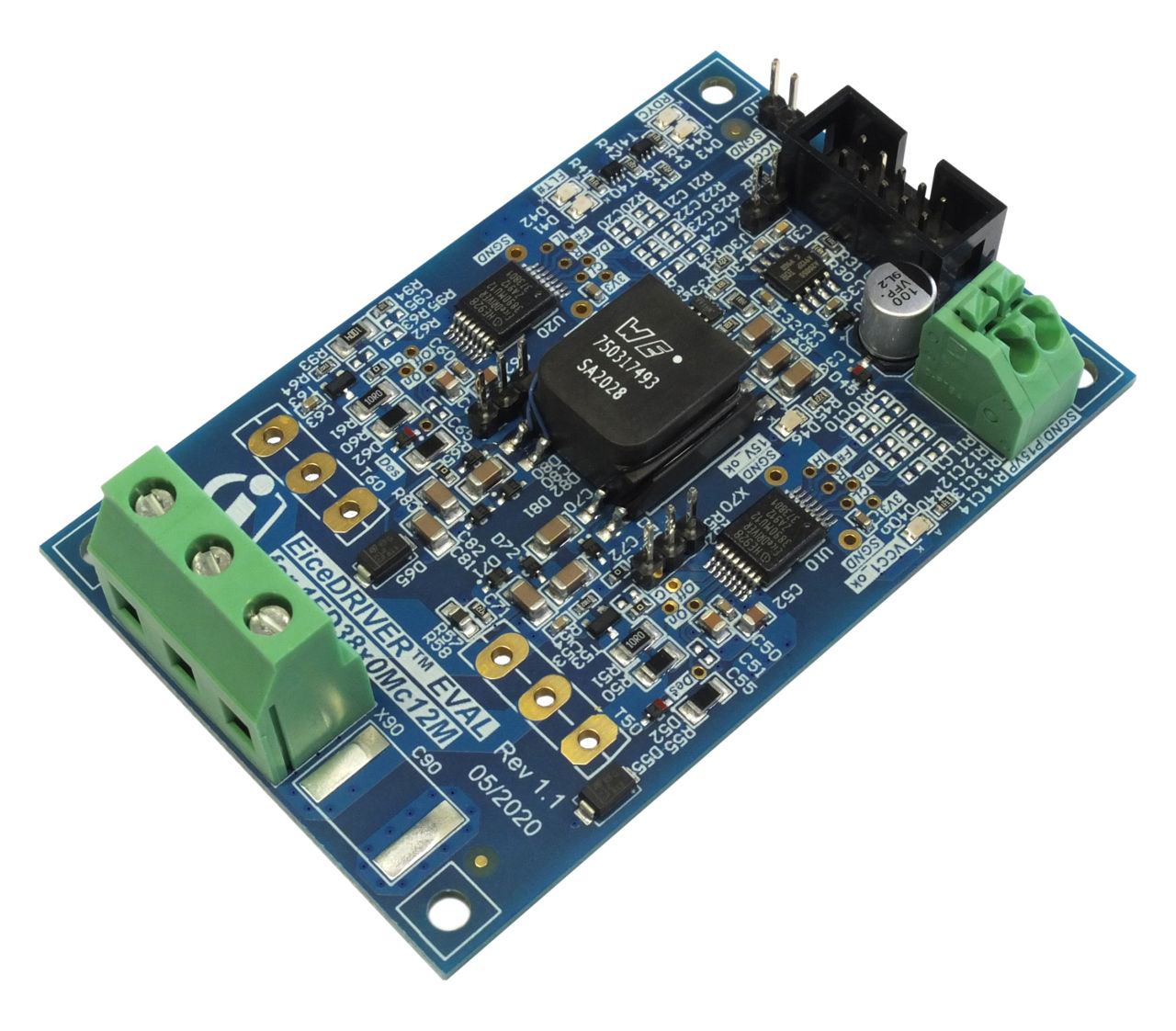

The EVAL-1ED3890MX12M, designed in a half-bridge configuration, utilizes two gate driver ICs (1ED3890MX12M) for driving IGBTs, MOSFETs, and SiC MOSFETs with a flexible switch type. It is sized at 85 x 85 x 15 mm and is ideal for leveraging the feature-rich X3 Digital (1ED38xx) family. Configuration is performed via the I2C bus, and it is recommended to use it with the EVAL-1ED38X0DCT microcontroller evaluation board for optimized configuration.

Features

  • I2C bus for parameter adjustment, state and fault feedback, ADC measurements and condition monitoring
  • Adjust. Clamp/Clamp driver/ADC pin
  • Two precise VCEsat detec. circuit
  • Two-level turn-off (TLTO)
  • Adjustable soft turn-off
  • Adjustable hardware UVLO
  • ADC measurem. of int. parameters
  • 40 V max. output supply voltage
  • ± 9 A typ. source & sink gate curr.
  • High CMTI = 200 kV/µs
  • Small space-saving DSO-16 package
  • Gate driver safety certification

Benefits

  • Enables fast design cycles due to low external component count and still offers adjustable DESAT with Soft-off functionality
  • Best-in-class DESAT accuracy: perfect for all applications requiring reliable short-circuit protection (including SiC MOSFET and IGBT7)
  • Enables predictive maintenance and rapid prototyping
  • The precise threshold and timings, combined with UL 1577 and VDE 0884-11 certification enable superior application safety
  • Perfect fit for all applications requiring a reliable DESAT protection, benefit from an active Miller clamp and prefer small PCB space requirements
