DEMO_IMR_ANGLE_SENS_V1

Demo board used to detect motor angles, featured in Infineon Mobile Robot (IMR)
User Manual
board
ea.
in stock

Content could not be loaded

Unfortunately, we were unable to load the content for this section. You may want to refresh the page or try again later.

DEMO_IMR_ANGLE_SENS_V1
DEMO_IMR_ANGLE_SENS_V1
ea.
User Manual

Product details

  • Board Type
    Demo Board
  • Configuration
    IRLML6401TRPBF, TLE5012B E1000, TLS202B1MB V33
  • Description
    Demo board used to detect motor angles, featured in Infineon Mobile Robot (IMR)
  • Dimensions
    10x25x25 mm
  • Family
    Sensor
  • Input Type
    DC
  • Interfaces
    Card edge connector, 2.54 mm pitch
  • Qualification
    Consumer, Industrial
  • Sub Application
    IMR
  • Supply Voltage
    5 V to 5 V
  • Target Application
    Robotics
Recommended
OPN
DEMOIMRANGLESENSV1TOBO1
Product Status active and preferred
Infineon Package --
Package Name N/A
Packing Size 1
Packing Type CONTAINER
Moisture Level N/A
Moisture Packing NON DRY
Lead-free No
Halogen Free No
RoHS Compliant Yes
Infineon stock last updated:
 ea. in stock

Product Status
Active
Infineon Package --
Package Name -
Packing Size 1
Packing Type CONTAINER
Moisture Level -
Moisture Packing NON DRY
Lead Free
Halogen Free
RoHS Compliant
ea.
in stock

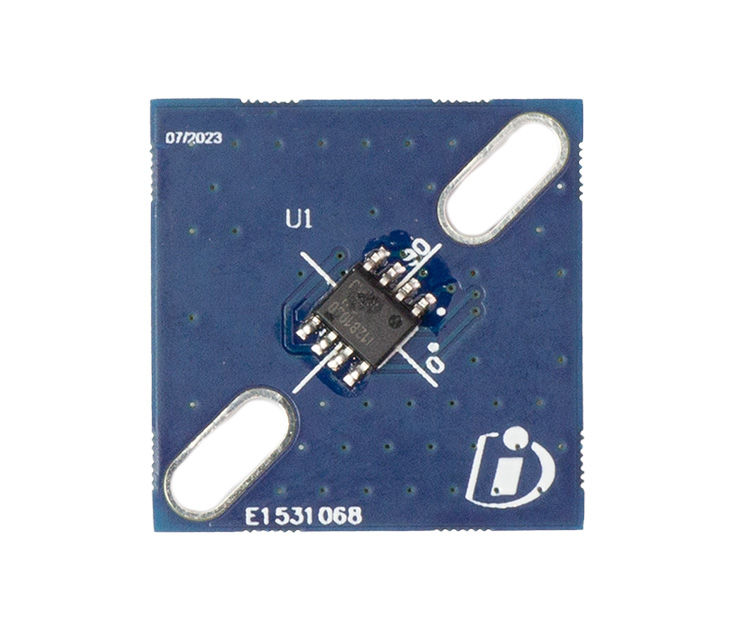

This demo board features the XENSIV™ TLE5012B E1000, which is a 360° magnetic angle sensor that detects the orientation of a magnetic field. This is achieved by measuring sine and cosine angle components with monolithic integrated Giant Magneto Resistance (iGMR) elements. These raw sine and cosine signals are digitally processed internally to calculate the angle orientation of the magnetic field of a magnet which is mounted to the motor shaft.

Features

  • GMR-based principle
  • Integrated magnetic field sensing
  • 360° angle measurement
  • Two highly accurate single bit SD-ADC
  • SSC & Incremental Interface (IIF)

Benefits

  • Flexible interfacing
  • Configurable output pins
  • Internal autocalibration algorithm

Bill of Material
