CY8CKIT-041S-MAX

PSOC™ 4100S Max pioneer kit (CY8CKIT-041S-MAX)
User Manual
software

Content could not be loaded

Unfortunately, we were unable to load the content for this section. You may want to refresh the page or try again later.

CY8CKIT-041S-MAX
CY8CKIT-041S-MAX
User Manual

Product details

  • Bluetooth Standard
    N/A
  • Board Type
    Evaluation Kit
  • CapSense
    Buttons
  • Core
    Arm Cortex-M0+
  • External memory
    None
  • Family
    PSOC™ 4100S Max Microcontroller
  • Features
    One User button,Three User LEDs.
  • GPIOs/Shield Compatibility
    Arduino Uno
  • Hardware Compatibility
    CY8CKIT-041S-MAX
  • Programmer/Debugger
    Onboard KitProg
  • Sensors
    Thermistor
  • Software Support
    ModusToolbox
  • WiFi Standard
    N/A
Recommended
OPN
CY8CKIT-041S-MAX
Product Status active and preferred
Infineon Package N/A
Package Name N/A
Packing Size N/A
Packing Type CONTAINER
Moisture Level NA
Moisture Packing NON DRY
Lead-free No
Halogen Free No
RoHS Compliant Yes
Infineon stock last updated:

Product Status
Active
Infineon Package N/A
Package Name -
Packing Size 0
Packing Type CONTAINER
Moisture Level NA
Moisture Packing NON DRY
Lead Free
Halogen Free
RoHS Compliant

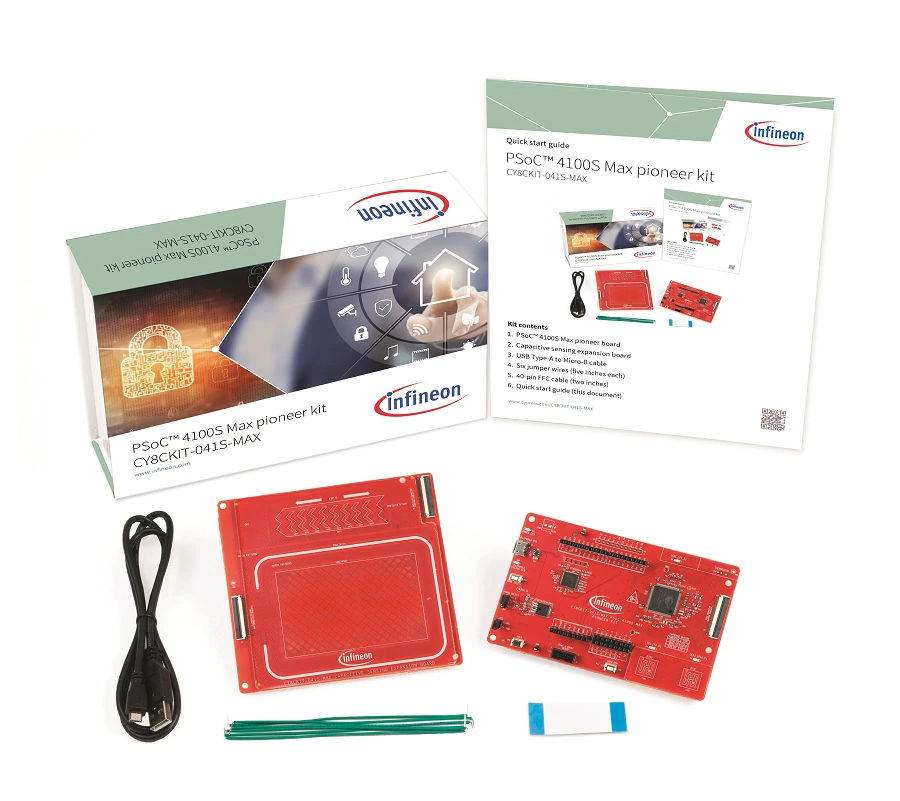

The PSOC™ 4100S Max pioneer kit enables designers to evaluate and develop application using PSOC™ 4100S Max MCU. It is comprised of two boards, CY8CKIT-041S-MAX pioneer board and CY8CKIT-041S-MAX expansion board. The pioneer board consists of the MCU, onboard programmer, and user LEDs. The expansion board allows user to evaluate CPASENSE™ touchpad, slider and proximity sensor.

Features

  • PSOC™ 4100S Max, 384KB Flash/32KB SRAM
  • Arduino UNO R3 compatible I/O headers
  • Capacitive Proximity
  • Capsense Touchpad
  • CapSense Slider
  • CapSense Buttons
  • Thermistor
  • User Leds
  • USB 2.0 Micro-B Connector
  • Current Measurement Jumper
  • An FFC connector and cable
  • PSOC™ 4100S Max MCU user button

Benefits

  • 32-bit, 48-MHz ARM Cortex-M0+ CPU
  • 12-bit 1-Msps SAR ADC
  • Low Power 1.71 to 5.5-V Device Operation
  • Two opamps
  • Two low-power comparators
  • 16 DMA Channels
  • 5th Gen CapSense
  • LCD drive capability
  • Eight 16-bit TCPWM block
  • CAN 2.0B block
