Active and preferred
RoHS Compliant

CY-SD4210

Stream 4K videos at 30 fps seamlessly from an external HDMI source to USB host via USB-C
User Manual

Content could not be loaded

Unfortunately, we were unable to load the content for this section. You may want to refresh the page or try again later.

CY-SD4210
CY-SD4210
User Manual

Product details

  • Family
    USB Peripheral Controller
  • Input Type
    DC
  • Qualification
    • TVS DIODE 5.5V 12V WLL-2-2 (ESD202B1CSP01005XTSA1) • 13V Clamp 3.5A (8/20µs) Ipp Tvs Diode Surface Mount WLL-2-3 (ESD131-B1-W0201) • EZ-USB SX3: Configurable SuperSpeed USB Controller (CYUSB3017-BZXI) • FLASH - NOR Memory IC 64Mb (8M x 8) SPI - Quad I/O, QPI 8-WSON (5x6) (S25FL064LABNFA010), Industrial
  • Supply Voltage
    4.5 V to 5.5 V
  • Target Application
    HDMI Video Capture, Consumer, Infotainment, Industrial
Recommended
OPN
CY-SD4210
Product Status active and preferred
Infineon Package --
Package Name N/A
Packing Size N/A
Packing Type TRAY
Moisture Level N/A
Moisture Packing NON DRY
Lead-free No
Halogen Free No
RoHS Compliant Yes
Infineon stock last updated:

Product Status
Active
Infineon Package --
Package Name -
Packing Size 0
Packing Type TRAY
Moisture Level -
Moisture Packing NON DRY
Lead Free
Halogen Free
RoHS Compliant

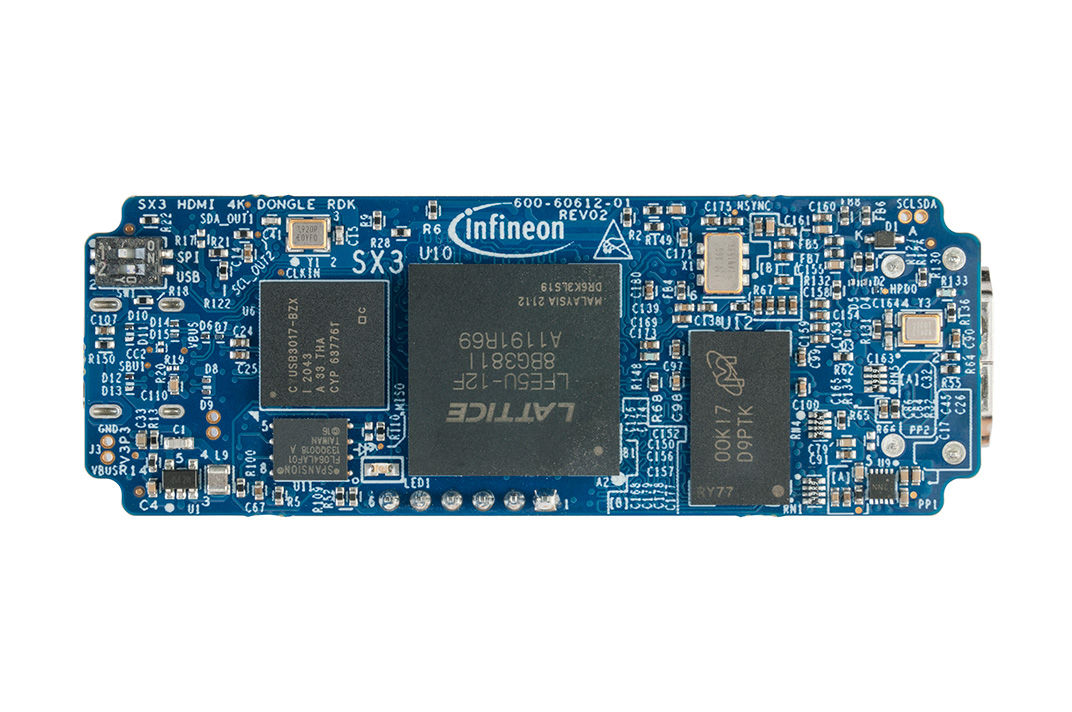

The CY-SD4210 HDMI 4K capture solution demo kit streams 4K30 fps HDMI video to PC via USB-C. It supports HDMI 1.4 b and is suitable for various applications including cameras, video conference systems, HDMI/SDI USB video capture cards, and medical imaging devices. Key components include EZ-USB™ SX3 Configurable SuperSpeed USB controller (CYUSB3017-BZXI), TVS DIODE, and FLASH NOR Memory IC. For more information, please contact us.

Features

  • Streaming up to 4K30 HDMI video
  • USB bus-powered operation
  • Supports HDMI 1.4 b

Benefits

  • Readymade HDMI to USB conversion
  • Supports 4K and 1080 p as well
  • Modular design

Applications

Bill of Material
