TLE5109A16D E2210

END OF LIFE
XENSIV™ - TLE5109A16D E2210 magnetic angle sensor for ultra-precise angular position sensing
Data Sheet

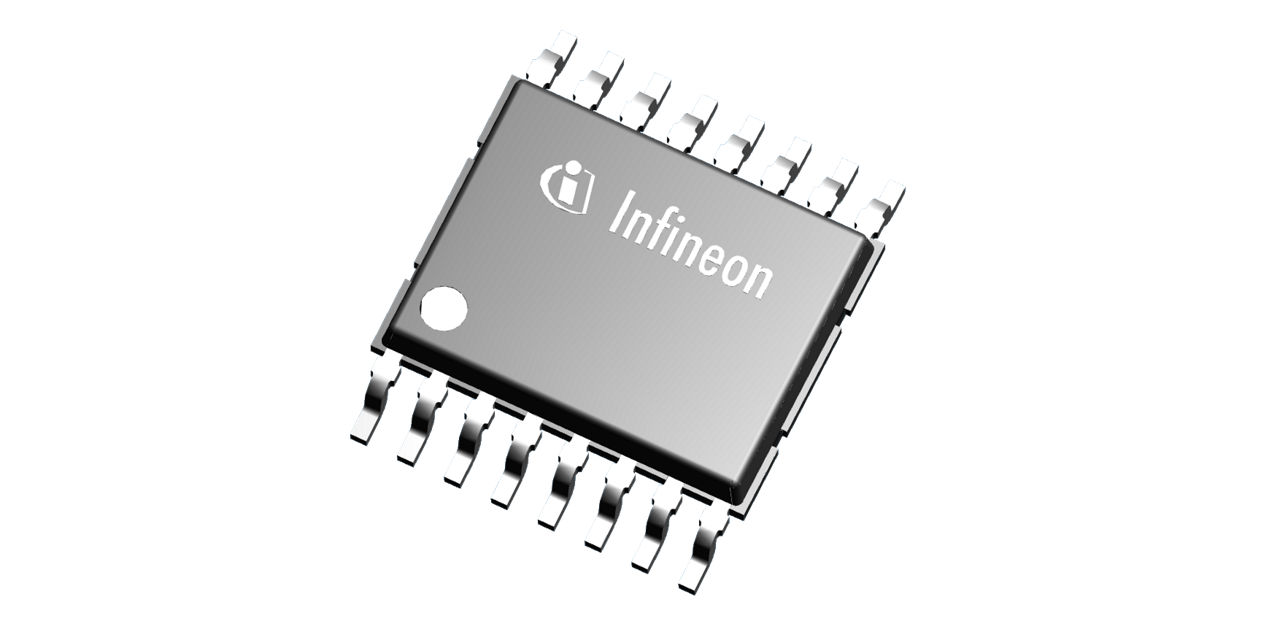

package

Content could not be loaded

Unfortunately, we were unable to load the content for this section. You may want to refresh the page or try again later.

TLE5109A16D E2210
TLE5109A16D E2210
Data Sheet

Product details

  • Classification
    ISO 26262-ready
  • Interfaces
    Analog
  • ISO 26262
    ready
  • Magnetic field
    20 mT to 500 mT
  • Package
    Dual SMD
  • Supply Voltage
    -0.5 V to 6.5 V
  • Supply Voltage ((V))
    -0.5-6.5
  • Technology
    AMR
  • Temperature
    -40 °C to 125 °C
OPN
TLE5109A16DE2210XUMA1
Product Status discontinued
Infineon Package
PG-TDSO-16
Package Name N/A
Packing Size 2500
Packing Type TAPE & REEL
Moisture Level 3
Moisture Packing DRY
Lead-free Yes
Halogen Free Yes
RoHS Compliant Yes
Infineon stock last updated:

Product Status discontinued
Infineon Package
PG-TDSO-16
Package Name -
Packing Size 2500
Packing Type TAPE & REEL
Moisture Level 3
Moisture Packing DRY
Lead Free
Halogen Free
RoHS Compliant
TLE5109A16D E2210 - Adding the AMR-based TLE5109 family to existing GMR TLE5009 and also TLE5309 products, design-in flexibility is granted. Having the same footprint and interfaces you have the option to start designs with one product family – and easily change from one to the other product family, available as single/dual die versions, at two different supply voltage options, ISO 26262-ready, targeting ASIL D for dual die sensors. Perfect fit for both automotive or industrial safety applications.

Features

  • AMR principle
  • High angle accuracy, 0.1° overall error
  • Best-in-class typ. angle error of 0.2°
  • Separate supply pins for top & sensor
  • Low current consumption
  • Quick start-up
  • Pre-amplified AMR sensor outputs
  • Automotive qualified
  • Wide magnetic field R:10mT up to > 500mT
  • ISO 26262-ready, targeting ASIL D
