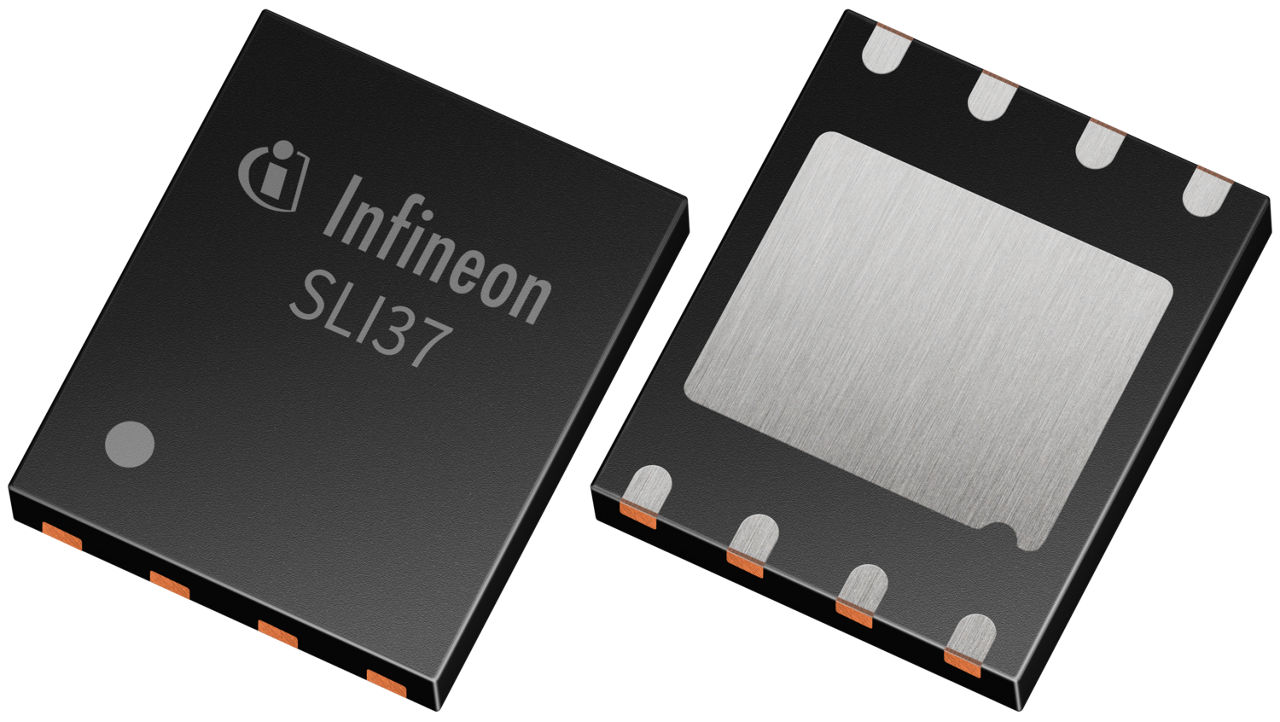

SLI37CCXXX

Security controller for automotive applications

Content could not be loaded

Unfortunately, we were unable to load the content for this section. You may want to refresh the page or try again later.

SLI37CCXXX
SLI37CCXXX

Product details

  • Ambient Temperature
    -40 °C to 105 °C
  • Applications
    Automotive eUICC / eCall, Vehicle-to-Vehicle and Vehicle-to-Infrastructure communication, Trust anchor in diverse automotive use cases
  • Asymmetric Cryptography
    RSA up to 4096-bit, Elliptic Curves up to 521-bit
  • Certifications
    AEC-Q100, CC EAL6+
  • CPU
    32-bit
  • Delivery Forms
    VQFN-32, VQFN-8
  • Interfaces
    ISO7816, GPIO, SWP, UART, I2C
  • Leading Technologies
    SOLID FLASH™
  • NVM
    1 MByte to 2 MByte
  • Package
    VQFN-8, VQFN-32
  • Product Description
    Automotive security controller
  • RAM
    48 kByte
  • Symmetric Cryptography
    DES, Triple DES, AES up to 256-bit
  • Use Cases
    Automotive eUICC / eCall,, Vehicle-to-Vehicle and Vehicle-to-Infrastructure communication, Trust anchor in diverse automotive use cases
OPN
Product Status
Infineon Package
Package Name
Packing Size
Packing Type
Moisture Level
Moisture Packing
Lead-free
Halogen Free
RoHS Compliant
Infineon stock last updated:
The automotive security controller SLI37 is the simple and reliable trust anchor to secure automotive applications like eUICC (eCall), V2X communications, car access and SOTA updates. The SLI37 is simple because it only requires one qualification and design-in process for all of these applications. It is reliable because it sets the eSIM benchmark for quality with a very low ppm failure rate, proven by over 100 million Infineon eSIMs in the field. It also comes with all qualifications and certifications required by the automotive industry such as CC EAL6+ and AECQ-100. Combined with Infineon’s long-term supply commitment and high-quality support, it enables the automotive industry to build the next generation of connected cars without taking any risks in relation to security.

Features

  • 32-bit Arm® SecurCore® SC300 @100 MHz enhanced by Infineon`s cache and security technology
  • Up to 2 MB SOLID FLASH™ NVM and 48 kByte RAM
  • Supported interfaces: UART, I2C, SWP, ESSC, GPIO
  • Extended operational temperature range: -40°C to +105°C
  • Extended data retention of 17 years minimum
  • Certifications: CC EAL6+, AECQ-100, ISO7816

Benefits

  • Support for multiple applications with one single qualification and design-in process
  • Unique and robust chip design with extended temperature range and 17 years’ lifetime
  • High reliability with very low ppm failure rate, proven by over 100 million Infineon eSIMs in the field
  • All qualifications and certifications required by automotive industry like CC EAL6+ and AECQ-100 as well as PPAP documentation.
