IRS27951

600V Half Bridge High Voltage Controller IC for Fixed/Variable Frequency DC-DC Resonant Converters with Overcurrent Vs Threshold Fixed at 2V
Data Sheet
board

Content could not be loaded

Unfortunately, we were unable to load the content for this section. You may want to refresh the page or try again later.

IRS27951
IRS27951
Data Sheet

Product details

  • Adjustable Dead Time
    200-2000
  • Frequency
    25 kHz to 500 kHz
  • OCP Threshold
    2 V
  • Output Current (Source)
    300 mA
  • Output Current (Sink)
    900 mA
  • Package
    8-lead SOIC
  • VCC
    10 V to 20 V
OPN
Product Status
Infineon Package
Package Name
Packing Size
Packing Type
Moisture Level
Moisture Packing
Lead-free
Halogen Free
RoHS Compliant
Infineon stock last updated:

Benefits

  • Simple primary-side control solution for fixed and variable frequency DC-DC resonant converters.
  • Max 500kHz per channel output with 50% duty cycle
  • Floating channel bootstrap operation up to +600Vdc
  • Programmable minimum and maximum switching frequency
  • Programmable soft start frequency and soft start time
  • Programmable dead time
  • Micropower start-up and ultra low quiescent current
  • Over-current protection using low side MOSFET Rds(on)
  • User initiated micropower "Sleep mode"
  • Under-voltage Lockout
  • Simple design with minimal component count.
  • Lead-free

Applications

Diagrams

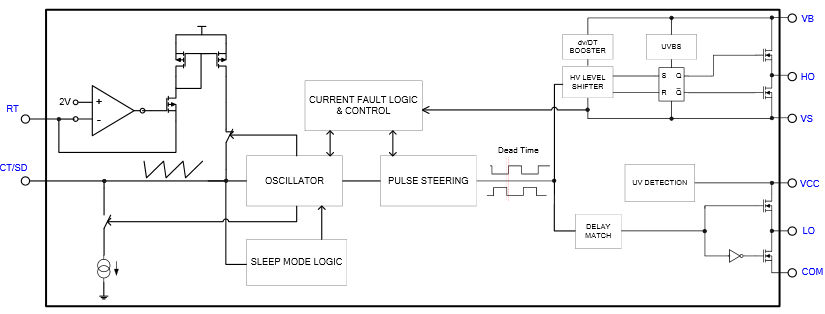

fbd-irs27951
fbd-irs27951
fbd-irs27951 fbd-irs27951 fbd-irs27951

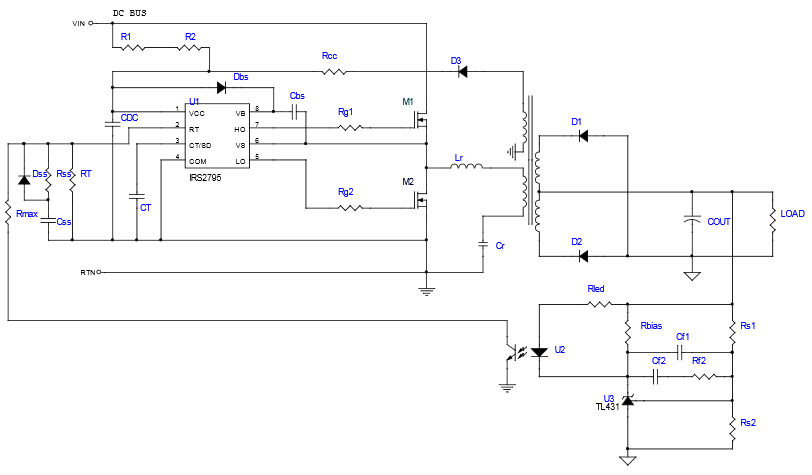

tc-irs27951 tc-irs27951 tc-irs27951
×
