TLD804KTRAVCB_EVAL

NEW

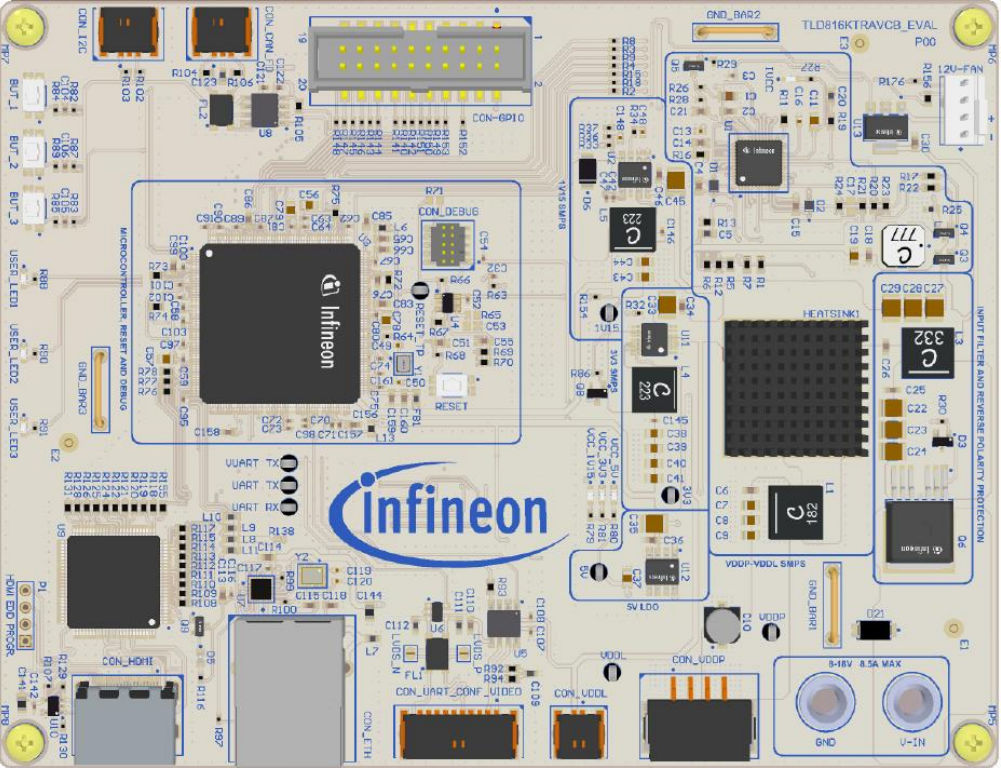

TLD804KTRAVCB_EVAL board for high-definition pixel lights application
User Manual

Content could not be loaded

Unfortunately, we were unable to load the content for this section. You may want to refresh the page or try again later.

TLD804KTRAVCB_EVAL
TLD804KTRAVCB_EVAL
User Manual

Product details

  • Configuration
    linear current sink
  • Description
    The core of this board is an Infineon TRAVEO™ CYT3DLABAS, an automotive-grade microcontroller with a 2D graphics engine, an ARM® Cortex®-M7 CPU and an ARM® Cortex®-M0+. The board is also equipped with two DC-DC converter to separately supply the power and logic stages of the light source.
  • Family
    LITIX™ Power Flex, TRAVEO™ II Cluster
  • Frequency
    200 kHz
  • Input current ((VIN = 8V)) max
    8.5 A
  • Input Type
    DC
  • Output Current
    0 A to 12 A
  • Output Voltage
    0 V to 5.1 V
  • Pout
    0 W to 60 W
  • Supply Voltage
    8 V to 18 V
  • Target Application
    Automotive
  • Topology
    Buck - synchronous
Recommended
OPN
TLD804KTRAVCBEVALTOBO1
Product Status active and preferred
Infineon Package --
Package Name N/A
Packing Size 1
Packing Type CONTAINER
Moisture Level N/A
Moisture Packing NON DRY
Lead-free No
Halogen Free No
RoHS Compliant Yes
Infineon stock last updated:

Product Status
Active
Infineon Package --
Package Name -
Packing Size 1
Packing Type CONTAINER
Moisture Level -
Moisture Packing NON DRY
Lead Free
Halogen Free
RoHS Compliant
The TLD804KTRAVCB_EVAL is designed to control and supply an HD pixel light source for front light applications. The board can be used for high-definition ADB, ADAS-related information projection, or message display for automotive headlights.

Features

  • High-power controlled DC-DC (VDDP)
  • 2D graphical HW accelerator
  • HDMI input to light source
  • Compatible load-board on request
  • I²C, CAN-FD, SPI, LIN inputs
  • 100Mb/s ethernet connection

Benefits

  • HD pixel application fast learning cycle
  • Software code example ready
  • Effortless light source tests

Applications
