Product details

  • Applications
    Refrigerator, motor control
  • Dimensions
    78mm x 78mm
  • Family
    PSOC™ 4100S, EiceDRIVER™, CoolSET™ 5th Gen, TRENCHSTOP™ RC-D2
  • Input Type
    AC
  • Interfaces
    J-LINK debugger connector, AC input, motor-phase connector
  • Motor Power max
    200 W
  • Product Name
    REF-MHA0K3IRC2PSOC4
  • Qualification
    Industrial
  • Topology
    3 phase motor drive
Recommended
OPN
REF-MHA0K3IRC2PSOC4
Product Status active and preferred
Infineon Package --
Package Name N/A
Packing Size 1
Packing Type TRAY
Moisture Level N/A
Moisture Packing NON DRY
Lead-free No
Halogen Free No
RoHS Compliant Yes
Infineon stock last updated:

Product Status
Active
Infineon Package --
Package Name -
Packing Size 1
Packing Type TRAY
Moisture Level -
Moisture Packing NON DRY
Lead Free
Halogen Free
RoHS Compliant

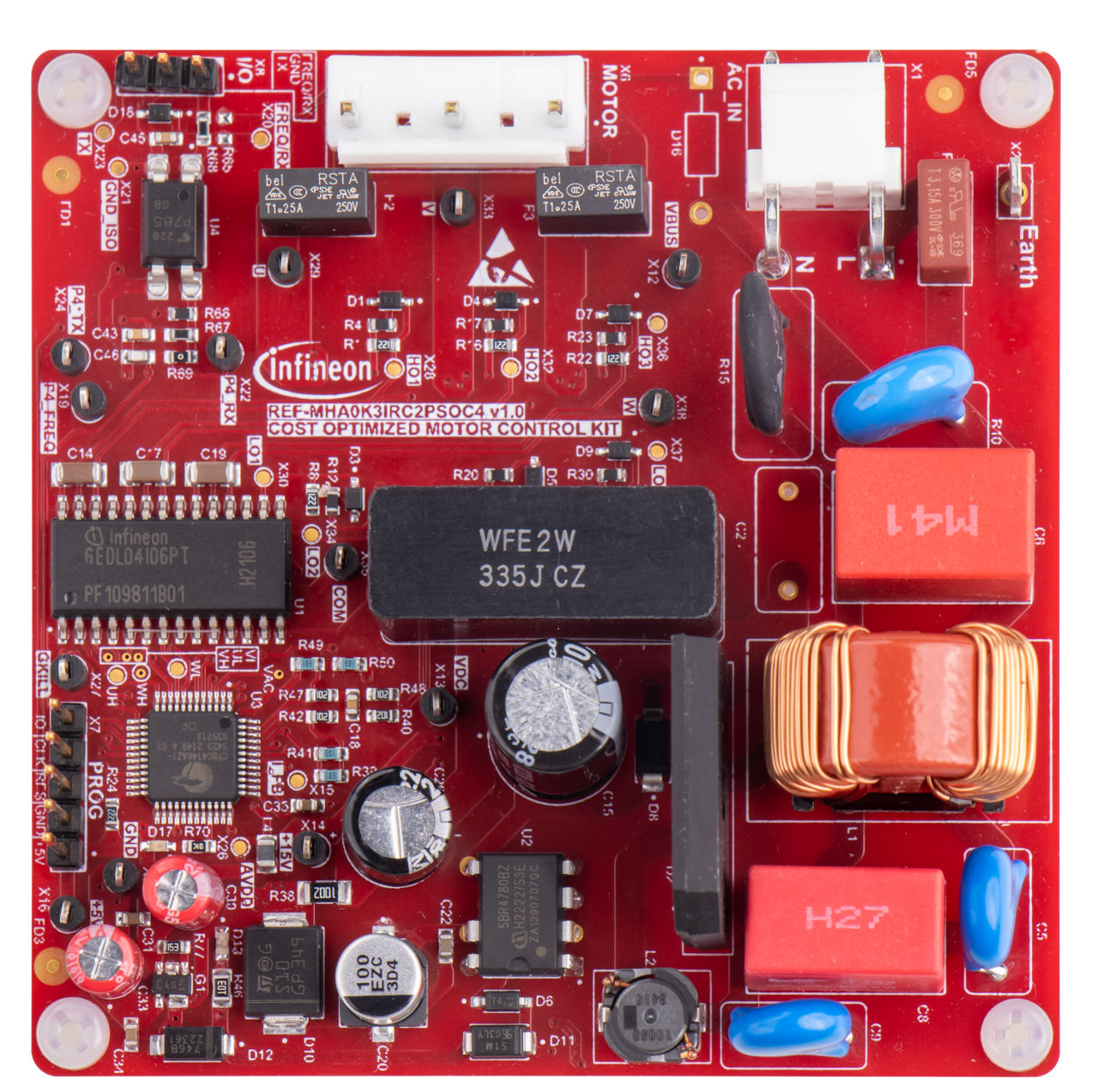

The REF-MHA0K3IRC2PSOC4 is a reference board that supports the design of rotary refrigerator compressor drives. It includes the PSoC™ 4 MCU providing flexibility for developing motor control solutions; the 6EDL04I06PT - a 600 V three-phase gate driver IC with integrated bootstrap diode, over current protection, enable and fault reporting which enables high integration with a space-saving design; IKD06N60RC2 600V TRENCHSTOP™ RC-D2 IGBT in DPAK package with optimized design and improvement of the performance, controllability, and reliability; and ICE5BR4780BZ CoolSET™ 5th generation integrated power stage for ACDC power conversion, with features including high integration, ease of design.

Features

  • Input voltage 176-265 Vrms
  • Maximum 200 W motor power output
  • Maximum 200 W motor power output
  • Onboard EMI filter
  • Single-shunt current sensing
  • Auxiliary power supply on-board
  • Overcurrent protection
  • Sensing of DC-link voltage
  • Fault diagnostic output
  • Measurement test points

Benefits

  • Reduced board size
  • Increased operating lifetime
  • Improved power factor
  • Decreased higher order harmonic

Applications
