REF-ICL5102HV-U150W

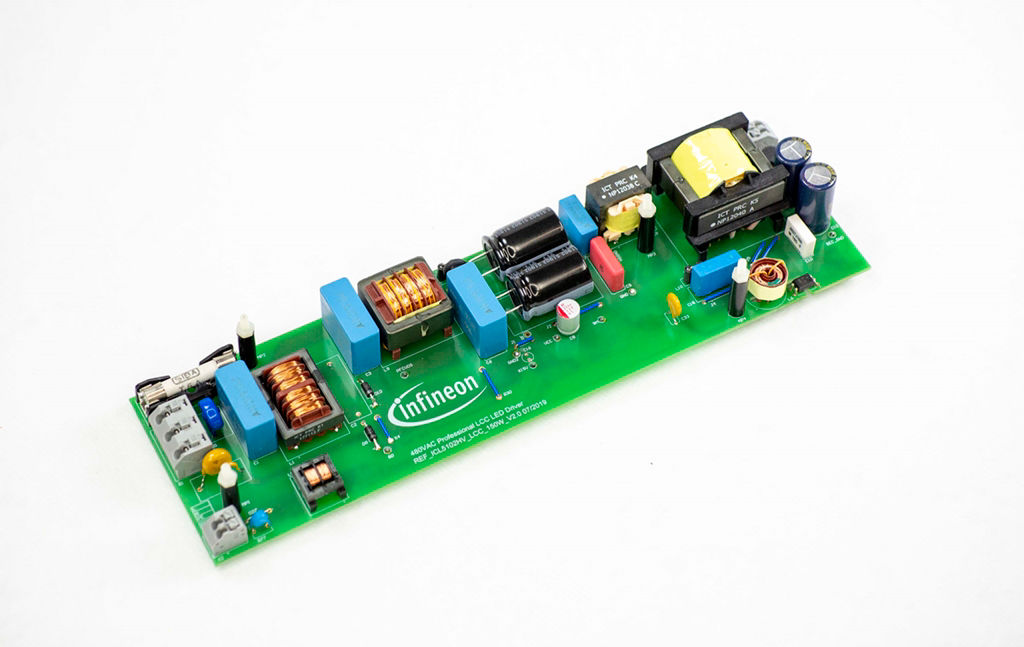

150W LED driver PFC/LCC evaluation board with ICL5102HV
Application Notes
board
ea.
in stock

Content could not be loaded

Unfortunately, we were unable to load the content for this section. You may want to refresh the page or try again later.

REF-ICL5102HV-U150W
REF-ICL5102HV-U150W
ea.
Application Notes

Product details

  • Board Type
    Demo Board
  • Dimensions
    70mm x 250 mm
  • Family
    LED Driver
  • Frequency
    47 Hz to 63 Hz
  • Input Type
    AC
  • Output Current
    0.03 A to 3 A
  • Output Voltage
    17 V to 48 V
  • Pout
    0.5 W to 144 W
  • Product Name
    REF-ICL5102HV-U150W
  • Qualification
    Industrial
  • Supply Voltage
    277 V to 528 V
  • Target Application
    E-Bikes & Small E-Vehicles, Power Supplies, Lighting, LED Lighting
  • Topology
    Resonant Half Bridge, PFC
Recommended
OPN
REFICL5102HVU150WTOBO1
Product Status active and preferred
Infineon Package N/A
Package Name N/A
Packing Size N/A
Packing Type CONTAINER
Moisture Level NA
Moisture Packing NON DRY
Lead-free No
Halogen Free No
RoHS Compliant No
Infineon stock last updated:
 ea. in stock

Product Status
Active
Infineon Package N/A
Package Name -
Packing Size 0
Packing Type CONTAINER
Moisture Level NA
Moisture Packing NON DRY
Lead Free
Halogen Free
RoHS Compliant
ea.
in stock
The PFC+LCC LED driver board showcases the performance of ICL5102HV, a LED controller IC for lighting applications up to 480VAC with <10% THD at 30% load. Infineon’s coreless transformer technology ensures high-frequency and rugged MOSFET drive. ICL5102HV features rich protection features, with efficiency >92% at full load and compliance with relevant industry standards for THD performance and EMI.

Features

  • Boost PFC + LCC topology
  • 800V bus voltage
  • Single-side PCB
  • Synchronous rectification at LCC output
  • Current transformer used to pass the LCC transformer output current information to its primary side

Benefits

  • Wide output voltage range which cannot be done by LLC
  • Cover applications up to 528VAC
  • Cost savings
  • Better efficiency from synchronous rectification
  • Fast output response

Applications
