REF_48V_2X1KW_ASFOC

Single-MCU-based reference design supporting a 2-wheel motor drive for ground robotics
User Manual

Content could not be loaded

Unfortunately, we were unable to load the content for this section. You may want to refresh the page or try again later.

REF_48V_2X1KW_ASFOC
REF_48V_2X1KW_ASFOC
User Manual

Product details

  • Board Type
    Reference Board
  • Configuration
    BAS3005A02VH6327XTSA1, ISC025N08NM5LF2, ISC031N08NM6, 1EDL8011, TLE42642GHTMA1, 6EDL7151, TLI4971A050T5E0001XUMA1, PSC3M5FDS2AFQ1, TLE9250VSJXUMA1, TLI5012B
  • Description
    PSOC™ Control C3M-based control card for dual motor driver board, 80P variant, powered with Si based power board for dual motor driver board.
  • Dimensions
    30x80x100 mm
  • Family
    Motor Driver
  • Frequency
    1800 kHz
  • Input Type
    DC
  • Interfaces
    SODIM DDR4 MALE
  • Pout max
    1000 W
  • Qualification
    Consumer
  • Sub Application
    Motor Control & Drives
  • Supply Voltage
    12 V to 60 V
  • Target Application
    Robotics
  • Topology
    Triple Shunt BLDC Drive
OPN
REF48V2X1KWASFOCTOBO1
Product Status coming soon
Infineon Package --
Package Name N/A
Packing Size 1
Packing Type CONTAINER
Moisture Level N/A
Moisture Packing NON DRY
Lead-free No
Halogen Free No
RoHS Compliant Yes
Infineon stock last updated:

Product Status coming soon
Infineon Package --
Package Name -
Packing Size 1
Packing Type CONTAINER
Moisture Level -
Moisture Packing NON DRY
Lead Free
Halogen Free
RoHS Compliant

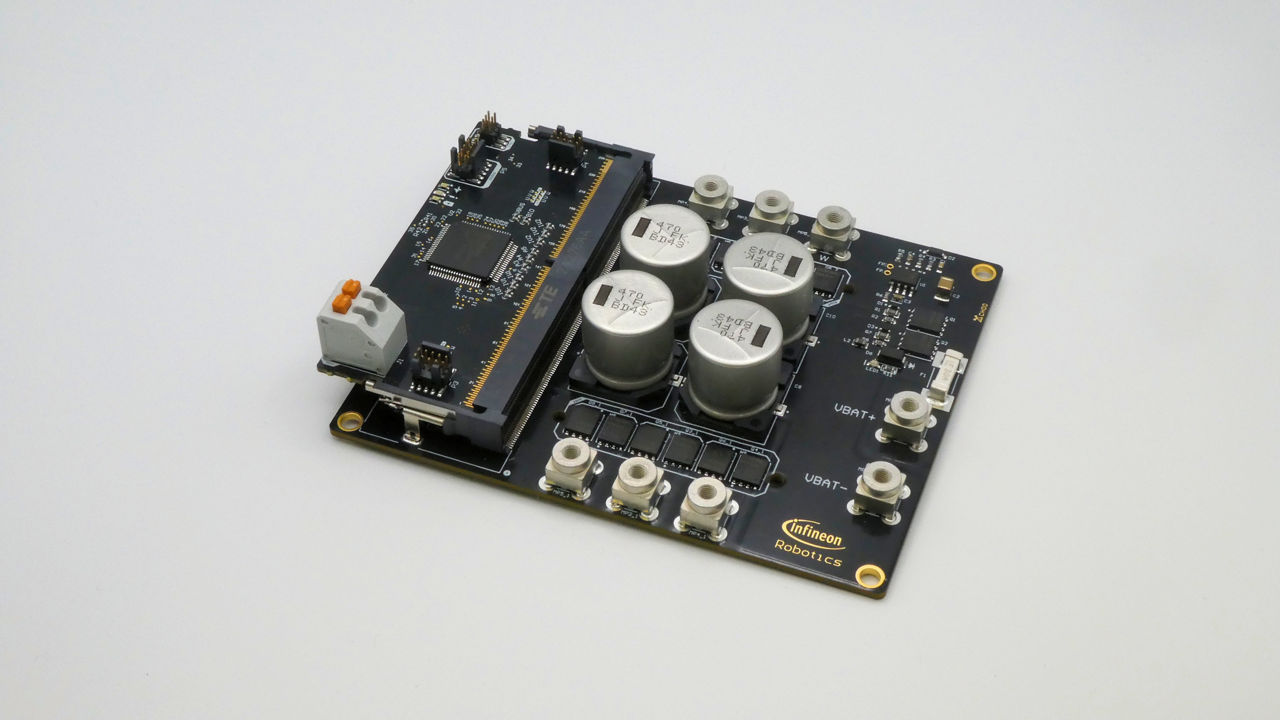

This reference design demonstrates the high performing characteristics of Infineon's OptiMOS™ 6 80 V power MOSFETs in the SuperSO8 package and PSOC™ C3M Main Line microcontrollers based on Arm® Cortex®-M33. This comprehensive motor drive solution utilizes a single PSOC™ C3M MCU to synchronously control the switching of two sets of inverters, with each set rated for operation at 1 kW. Native support of CAN is included for communications.
