OPTIGA TPM EVALKIT IND

Protecting integrity and authenticity of embedded devices and systems with OPTIGA™ TPM is easier than you think

Content could not be loaded

Unfortunately, we were unable to load the content for this section. You may want to refresh the page or try again later.

OPTIGA TPM EVALKIT IND
OPTIGA TPM EVALKIT IND

Product details

  • Applications
    Industrial
  • Board Type
    Evaluation Board
  • Family
    OPTIGA™ TPM
  • Input Type
    DC
  • Product Name
    OPTIGA™ TPM Evaluation Kit - industrial TPM
  • Qualification
    Industrial
  • Sub Application
    Industrial PCs, Servers, Programmable Logic Controllers (PLC), Industrial Network Infrastructure & Equipment, including: Gateways, Routers, Wireless Access Points, Switches
  • Supply Voltage
    3.3 V
  • Target Application
    Industrial, Chip Card and Security
Recommended
OPN
OPTIGATPMEVALSLM967TOBO1
Product Status active and preferred
Infineon Package --
Package Name N/A
Packing Size N/A
Packing Type CONTAINER
Moisture Level N/A
Moisture Packing N/A
Lead-free No
Halogen Free No
RoHS Compliant Yes
Infineon stock last updated:

Product Status
Active
Infineon Package --
Package Name -
Packing Size 0
Packing Type CONTAINER
Moisture Level -
Moisture Packing
Lead Free
Halogen Free
RoHS Compliant

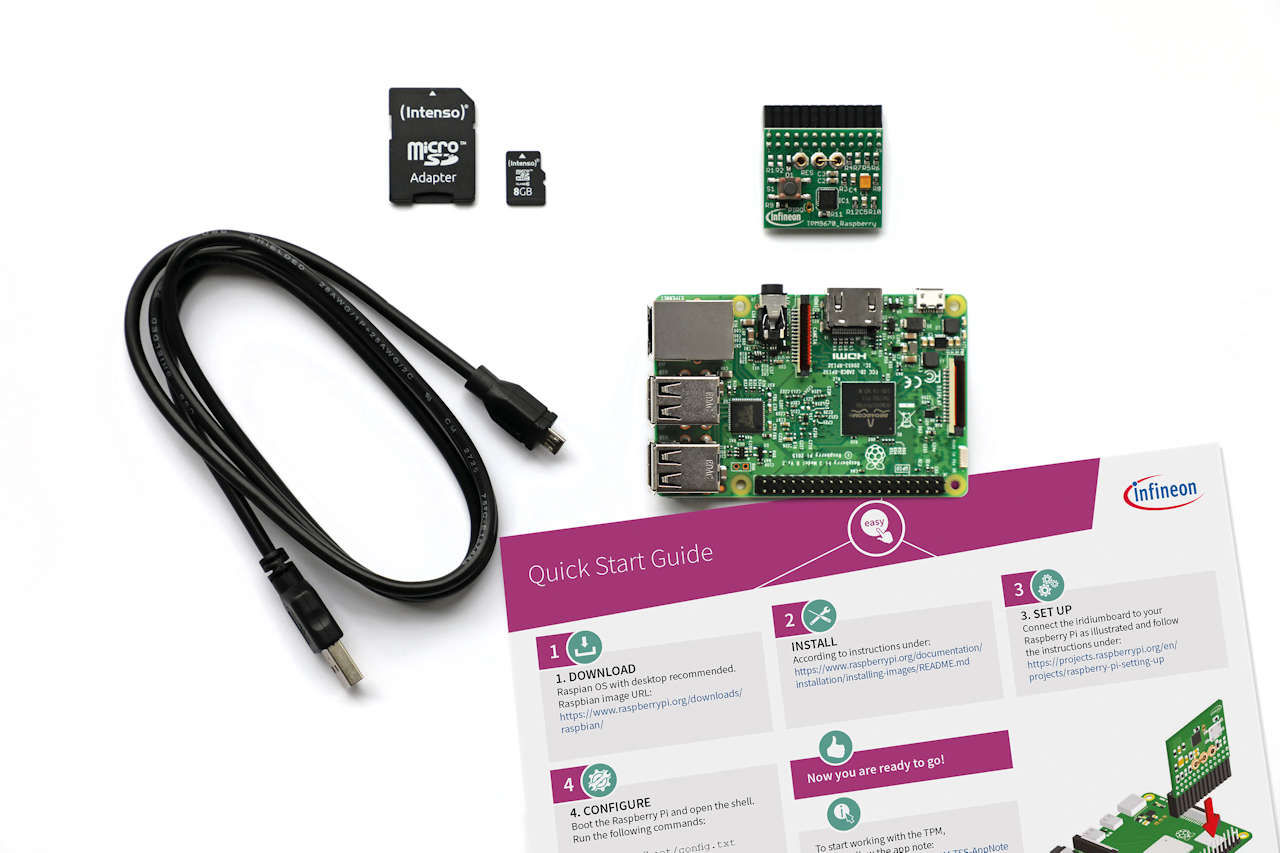

The OPTIGA™ TPM Evaluation Kit includes everything you need to start your evaluation with OPTIGA™ TPM SLM 9670. The easy-to-use quick start guide includes a step-by-step instruction for: OPTIGA™ TPM on GNU / Linux based systems by using the Open Source TPM Software Stack 2.0 (TSS 2.0), OPTIGA™ TPM as a Hardware Security Module (HSM) for AWS Greengrass using the PKCS#11 Hardware Security Integration, OPTIGA™ TPM in Azure as secured key storage.

Features

  • 3 V or 1.8 V power supply
  • Plug & play with 26-pin RPI 1 header
  • Compatible with Raspberry Pi 2 & 3
  • Reset manually via push-button
  • or reset via RST signal from RPI
  • RPI 3 with additional components
  • 8GB SD card (empty)
  • USB-Cable

Benefits

  • Quick Start Guide for easy, fast setup
  • TPM2 software stack (TSS) setup guide
  • TPM2 software stack (TSS) eval guide
  • Including source code examples
