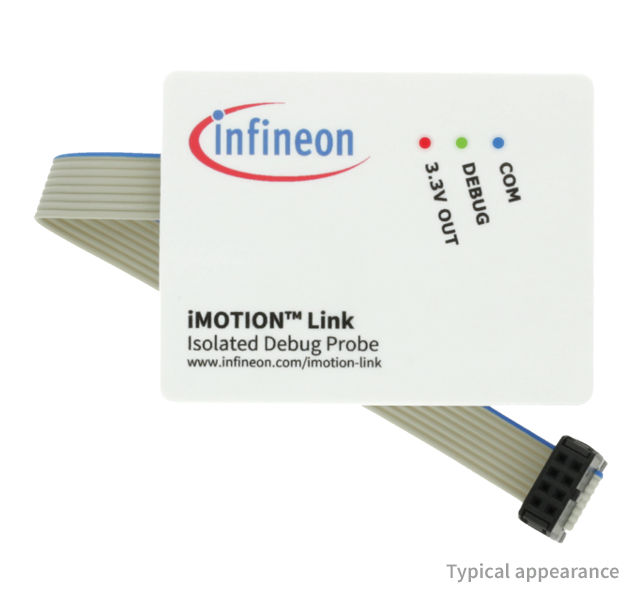

IMOTION-LINK

Isolated Debug Probe for iMOTION™ motor control ICs
User Manual
board
ea.
in stock

Content could not be loaded

Unfortunately, we were unable to load the content for this section. You may want to refresh the page or try again later.

IMOTION-LINK
IMOTION-LINK
ea.
User Manual

Product details

  • Board Type
    Evaluation Board
  • Family
    iMOTION™ Motor Control ICs
  • Product Name
    iMOTION™ Link
  • Qualification
    Industrial
  • Sub Application
    Fans, Pumps, Compressors, BLDC motor drives
  • Target Application
    Home Appliances, Industrial, Motor Control & Drives
Recommended
OPN
IMOTIONLINK
Product Status active and preferred
Infineon Package --
Package Name N/A
Packing Size 1
Packing Type CONTAINER
Moisture Level N/A
Moisture Packing NON DRY
Lead-free No
Halogen Free No
RoHS Compliant Yes
Infineon stock last updated:
 ea. in stock

Product Status
Active
Infineon Package --
Package Name -
Packing Size 1
Packing Type CONTAINER
Moisture Level -
Moisture Packing NON DRY
Lead Free
Halogen Free
RoHS Compliant
ea.
in stock
iMOTION™ Link is a debug probe for configuring and programming iMOTION™ motor control ICs, including IMC100 and future series. It programs and debugs ICs on target or evaluation boards. It's essential for tuning motor control systems with iMOTION™ PC software tools. Before use, install MCEWizard and MCEDesigner from Infineon's website and update the iMOTION Link firmware. Consult the iMOTION™ Link User Manual for more details.

Features

  • Isolated PC interface tool
  • Isolated UART to USB interface
  • ARM® Cortex® debug support
  • Full galvanic 1kV DC isolation
  • Isolated 3.3 VDC output to target
  • Supports all iMOTION devices

Benefits

  • Supports all iMOTION 2.0 devices
  • Integrated galvanic isolation
  • Compatible with any PC tool

Applications
