EVAL_TDM3883_3.3VOUT

Evaluation board 3 A IPOL synchronous buck voltage regulator with integrated inductor
User Manual

Content could not be loaded

Unfortunately, we were unable to load the content for this section. You may want to refresh the page or try again later.

EVAL_TDM3883_3.3VOUT
EVAL_TDM3883_3.3VOUT
User Manual

Product details

  • Family
    DC-DC Converter
  • Frequency
    1020 kHz
  • Input Type
    DC
  • Input Voltage
    12 V
  • Output Current
    3 A
  • Output Voltage
    3.3 V
  • Target Application
    Cellular infrastructure
  • Topology
    Buck
Recommended
OPN
EVALTDM388333VOUTTOBO1
Product Status active and preferred
Infineon Package N/A
Package Name N/A
Packing Size N/A
Packing Type CONTAINER
Moisture Level N/A
Moisture Packing N/A
Lead-free No
Halogen Free No
RoHS Compliant Yes
Infineon stock last updated:

Product Status
Active
Infineon Package N/A
Package Name -
Packing Size 0
Packing Type CONTAINER
Moisture Level -
Moisture Packing
Lead Free
Halogen Free
RoHS Compliant

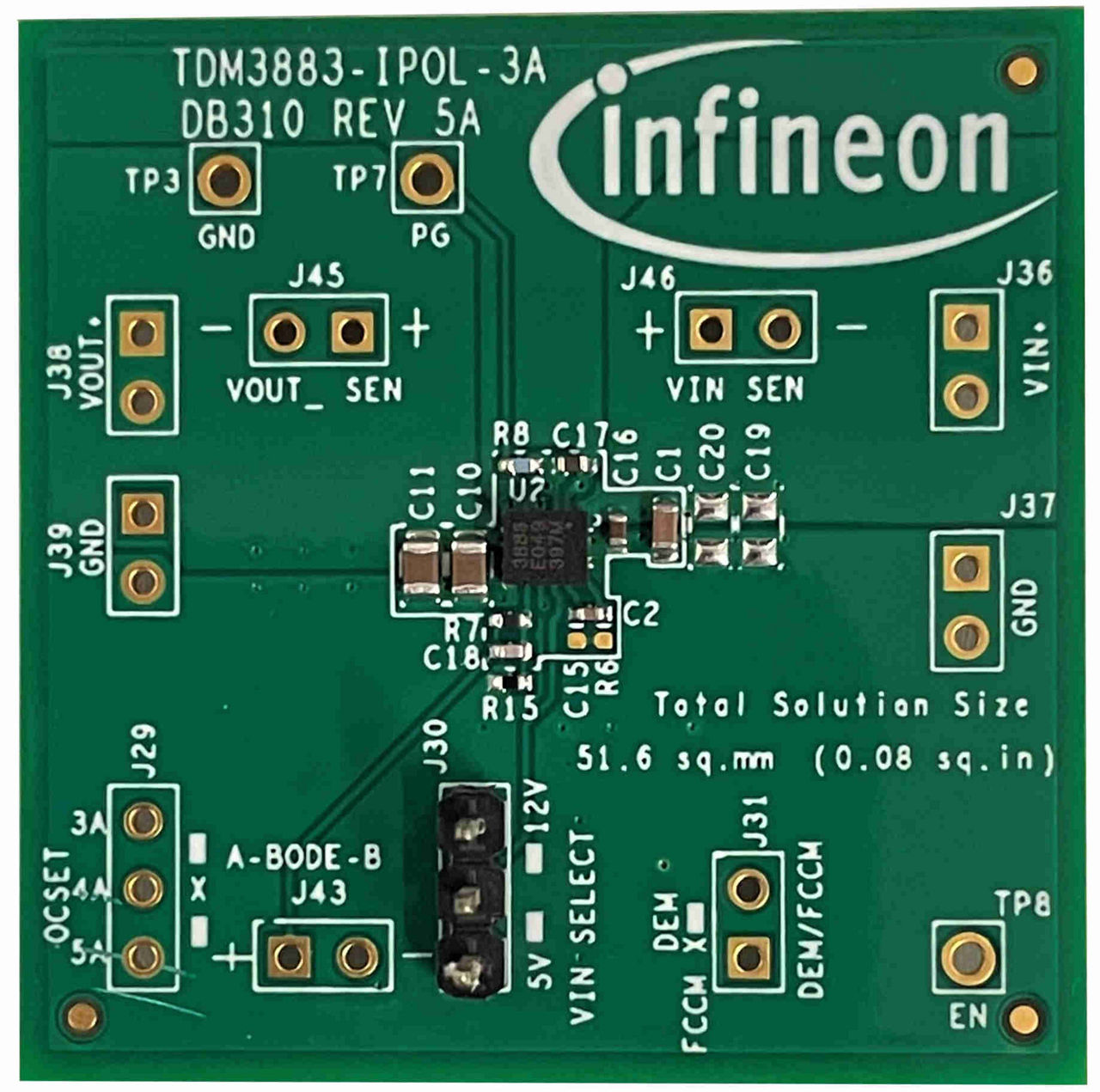

The EVAL_TDM3883_3.3VOUT 3A point-of-load (POL) module is a fully integrated and efficient DC-DC solution. It incorporates a PWM controller, MOSFETs, and inductor, ensuring accurate power delivery. With an enhanced stability engine, it remains stable with ceramic capacitors without compensation. Operating with Vin = 12V, Vout = 3.3V, Fsw = 800kHz, and Iout = 0-3A, this module provides a space-efficient and reliable power solution.

Features

  • Optimized module with inductor included
  • Enhanced stability IPOL engine
  • Enhanced light load efficiency
  • Soft-start with pre-bias capability
  • Precision reference (0.5 V+/-1.0 %)
