EVAL_6EDL7141_TRAP_1SH

Reference design/evaluation board - BLDC motor drive based on the MOTIX™ 6EDL7141 smart three-phase driver
Application Notes
software
ea.
in stock

Content could not be loaded

Unfortunately, we were unable to load the content for this section. You may want to refresh the page or try again later.

EVAL_6EDL7141_TRAP_1SH
EVAL_6EDL7141_TRAP_1SH
ea.
Application Notes

Product details

  • Board Type
    Evaluation Board
  • Configuration
    BSC007N04LS6, XMC1404-VQFN64-200kB, 6EDL7141
  • Family
    MOTIX™ Battery supplied BLDC motor control IC, OptiMOS™ 6
  • Frequency
    20 kHz
  • Input Type
    DC
  • Iout max
    25 A
  • Pout
    500 W
  • Product Name
    EVAL_6EDL7141_TRAP_1SH
  • Supply Voltage
    18 V
  • Target Application
    Consumer, Power Tools, Motor Control & Drives, Drives
  • Topology
    3-Phase control, 3-Phase - 2 Level
Recommended
OPN
EVAL6EDL7141TRAP1SHTOBO1
Product Status active and preferred
Infineon Package --
Package Name N/A
Packing Size N/A
Packing Type CONTAINER
Moisture Level N/A
Moisture Packing DRY
Lead-free No
Halogen Free No
RoHS Compliant Yes
Infineon stock last updated:
 ea. in stock

Product Status
Active
Infineon Package --
Package Name -
Packing Size 0
Packing Type CONTAINER
Moisture Level -
Moisture Packing DRY
Lead Free
Halogen Free
RoHS Compliant
ea.
in stock

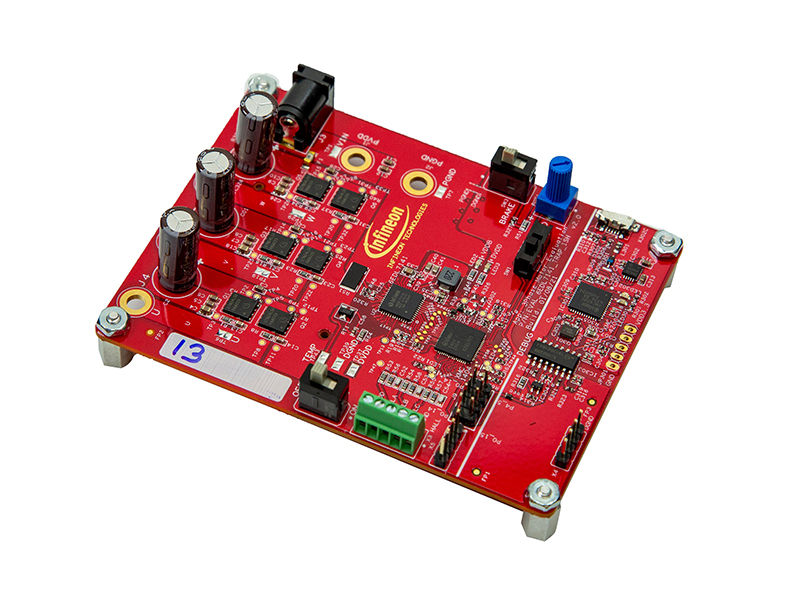

The EVAL_6EDL7141_TRAP_1SH features fully configurable operating parameters with on-board debugger ready for direct USB connection to PC. The BLDC motor drive board uses trapezoidal commutation based on the MOTIX™ 6EDL7141 smart three-phase driver.The evaluation board operates independently or via Infineon motor control GUI .
