EVAL_600W_FBFB_XDPP

Evaluate Infineon DC/DC digital IC controllers for telecom and server applications
User Manual
ea.
in stock

Content could not be loaded

Unfortunately, we were unable to load the content for this section. You may want to refresh the page or try again later.

EVAL_600W_FBFB_XDPP
EVAL_600W_FBFB_XDPP
ea.
User Manual

Product details

  • Description
    Evaluate Infineon DC/DC digital IC controllers for telecom applications
  • Dimensions
    30mm x 83mm x 65mm (Height x width x length)
  • Family
    XDP™ digital power controller
  • Frequency
    250 kHz to 250 kHz
  • Input Type
    DC
  • Mounting
    Standoffs
  • Output Current
    0 A to 50 A
  • Output Voltage
    12 V to 12 V
  • Pout
    0 W to 600 W
  • Qualification
    Industrial
  • Sub Application
    Telecom, SMSP switch mode, Power supply
  • Supply Voltage
    36 V to 75 V
  • Target Application
    Power Supplies
  • Topology
    Full Bridge
  • Type
    Evaluation Board
Recommended
OPN
EVAL600WFBFBXDPPTOBO1
Product Status active and preferred
Infineon Package --
Package Name N/A
Packing Size 1
Packing Type CONTAINER
Moisture Level N/A
Moisture Packing NON DRY
Lead-free No
Halogen Free No
RoHS Compliant Yes
Infineon stock last updated:
 ea. in stock

Product Status
Active
Infineon Package --
Package Name -
Packing Size 1
Packing Type CONTAINER
Moisture Level -
Moisture Packing NON DRY
Lead Free
Halogen Free
RoHS Compliant
ea.
in stock

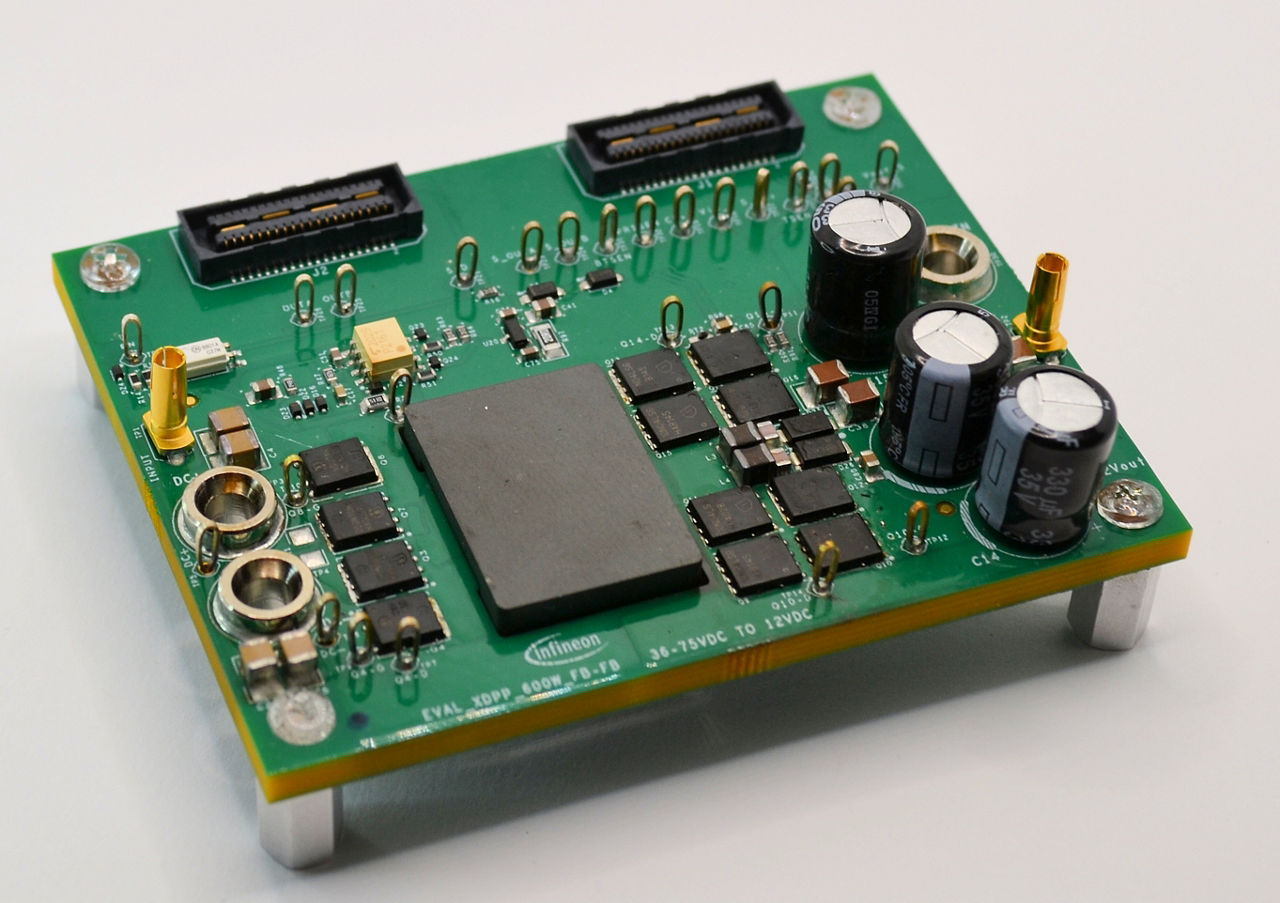

This 42 V-75 V to 12 V/600 W hard-switching FB to FB evaluation board is part of XDPP1100 digital controller evaluation kit to evaluate various features of digital controller. This board can be controlled by EVAL_XDPP1100_Q024_DB daughter board. USB-I2C dongle (USB007A1) is needed to configure controller’s parameters and monitor operation status through its GUI.
