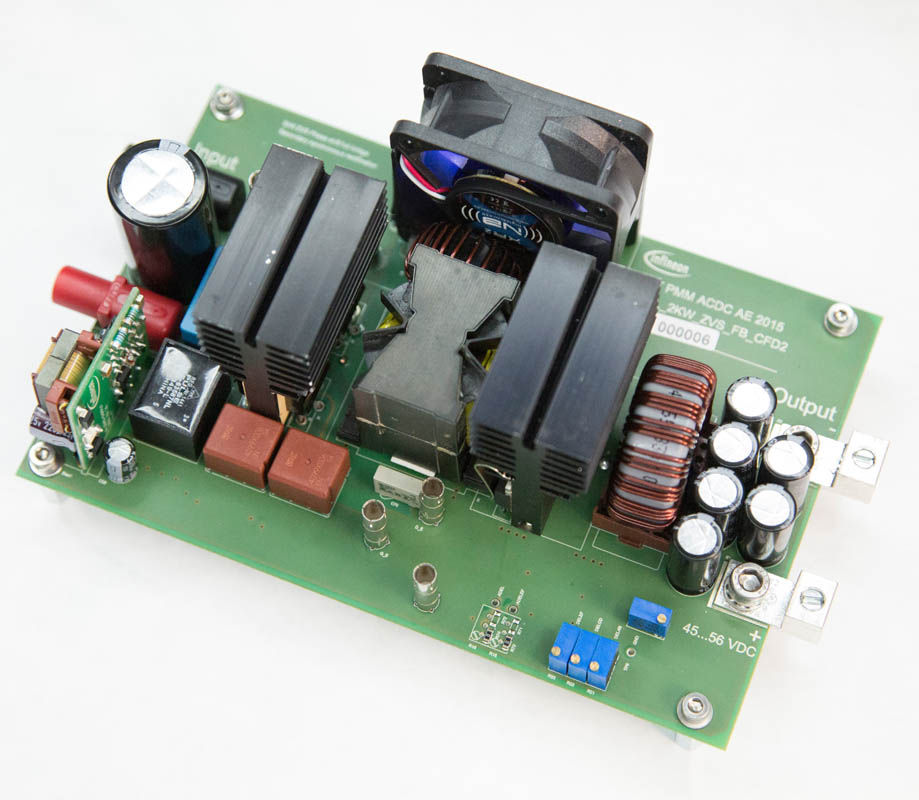

EVAL_2KW_ZVS_FB_CFD2

2KW DC-DC/ZVS full-bridge stage 380/48 VDC, 96.6% peak efficiency

Content could not be loaded

Unfortunately, we were unable to load the content for this section. You may want to refresh the page or try again later.

EVAL_2KW_ZVS_FB_CFD2
EVAL_2KW_ZVS_FB_CFD2

Product details

  • Board Type
    Evaluation Board
  • Dimensions
    200 x 130 x 80mm
  • Family
    MOSFET, Gate Driver
  • Frequency min
    100 kHz
  • Input Type
    DC
  • Mounting
    SMT, THD
  • Output Current
    0 A to 38 A
  • Output Voltage
    45 V to 56 V
  • Pout
    0 W to 2000 W
  • Product Name
    IPP120N20NFD, 2EDN7524F, IPW65R080CFD
  • Qualification
    Industrial
  • Sub Application
    High Power Battery chargers, Industrial High Power SMPS, Telecom Rectifiers/SMPS
  • Supply Voltage
    350 V to 420 V
  • Target Application
    Power Supplies
  • Topology
    ZVS
OPN
Product Status
Infineon Package
Package Name
Packing Size
Packing Type
Moisture Level
Moisture Packing
Lead-free
Halogen Free
RoHS Compliant
Infineon stock last updated:
The ZVS phase shift full-bridge evaluation board utilizes CoolMOS™ CFD2 SJ MOSFET for a new ZVS DC-DC converter for telecom rectifiers, with an output voltage of 45VDC to 56VDC and 2kW power. It operates with an input voltage between 350VDC and 420VDC, featuring OptiMOS™ 5 technology and an Infineon dual channel gate driver.

Features

  • Input voltage: 350-420V DC
  • Output voltage: 45 up to 56V DC
  • Output power: up to 2kW
  • Peak efficiency: 96.6%

Benefits

  • Optimized primary delay times
  • Optimized secondary delay times

Applications
