Active and preferred

EVAL-2ED2748S01GM1

Evaluation Board for 160 V half-bridge SOI gate driver IC with 100 V OptiMOS™ Power MOSFET and iMOTION™ MADK
User Manual
ea.
in stock

Content could not be loaded

Unfortunately, we were unable to load the content for this section. You may want to refresh the page or try again later.

EVAL-2ED2748S01GM1
EVAL-2ED2748S01GM1
ea.
User Manual

Product details

  • Applications
    3-Phase Motor Control
  • Board Type
    Evaluation Board
  • Description
    Evaluation board for MOTIX™ 160 V Half Bridge SOI gate driver IC (2ED2748S01G) with 100 V OptiMOS™ Power MOSFET (IPTC015N10NM5) and iMOTION™ MADK (IMC101T)
  • Dimensions
    120x82
  • Family
    100 V OptiMOS™, MOTIX™ Gate Driver
  • Input Type
    DC
  • Motor Power max
    3000 W
  • Mounting
    Surface Mount (SMD)
  • Output Current (Sink)
    8 A
  • Output Current (Source)
    4 A
  • Pout max
    3000 W
  • Product Name
    EVAL-2ED2748S01GM1
  • Qualification
    Industrial
  • Supply Voltage max
    72 V
  • Target Application
    Micro-inverter-solutions, Battery-powered tool, Cordless power tool, Multicopter and drones
  • Topology
    3 phase motor drive
Recommended
OPN
EVAL2ED2748S01GM1TOBO1
Product Status active and preferred
Infineon Package --
Package Name N/A
Packing Size 1
Packing Type CONTAINER
Moisture Level N/A
Moisture Packing DRY
Lead-free No
Halogen Free No
RoHS Compliant No
Infineon stock last updated:
 ea. in stock

Product Status
Active
Infineon Package --
Package Name -
Packing Size 1
Packing Type CONTAINER
Moisture Level -
Moisture Packing DRY
Lead Free
Halogen Free
RoHS Compliant
ea.
in stock

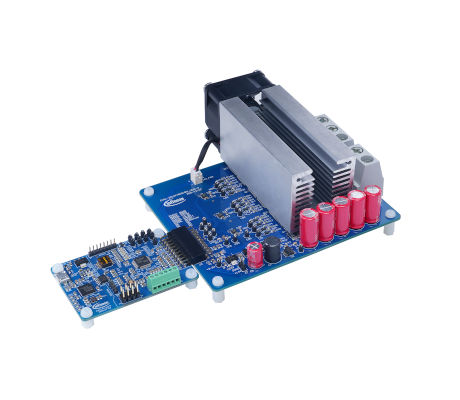

The EVAL-2ED2748S01GM1 evaluation kit for Battery Powered Applications (BPA) consists of a three-phase inverter power board with the 160 V rated 2ED2748S01G (3 x 3 VSON-10) half-bridge gate driver drives twelve 100 V rated OptiMOS™ MOSFETs IPTC015N10NM5 (in HDSOP-16 package). M1 connector that is used to interface with iMOTION™ Modular Application Design Kit (MADK) control card – EVAL-M1-101T.

Features

  • Nominal DC input voltage of 72 V
  • Maximum 3000 W motor power
  • Single shunt for current sensing
  • Sensing of DC-link voltage
  • +12 V and +3.3 V auxiliary power
  • M1 interface with iMOTION™
  • 3x 160 V Gate driver: 2ED2748S01G
  • 12x 100 V OptiMOS™: IPTC015N10NM5
  • 1x iMOTION™: IMC101T

Benefits

  • Widest input voltage range ~140 V
  • High drive current for parallel switches
  • Lower system level BOM cost
  • Superior latchup immunity 160 V SOI
  • High efficiency control w/ iMotion™
